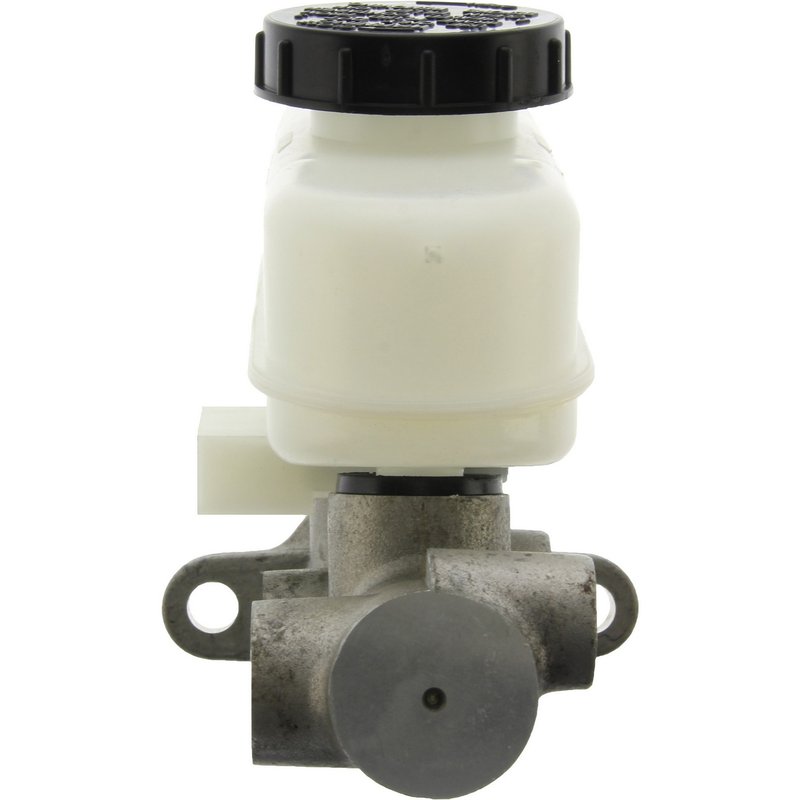

Centric 130.61040 Brake Master Cylinder
| Brand | Centric 130.61040 |
|---|---|
| Reservoir Material | Plastic |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 2 |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Aluminum |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Reservoir Type | Single |
| Primary Outlet Thread Diameter | 10.000 |
| Secondary Outlet Thread Diameter | 12.000 |
| Bleeder Hoses Included | No |
| Port Quantity | 4 |
| Mounting Bracket Included | No |
| Secondary Outlet Thread Pitch | 1.00 |
| Primary Outlet Thread Pitch | 1.00 |
| Bore Type | Stepped |
| Secondary Outlet Thread Size | M12-1.00 |
| Primary Outlet Thread Size | M10-1.00 |
| Primary Outlet Flare Type | Bubble |
| Secondary Outlet Flare Type | Bubble |
| Primary Bore Diameter | 1.250 |
| Primary Bore Diameter | 31.750 |
| Secondary Bore Diameter | 0.875 |
| Secondary Bore Diameter | 22.225 |
| Reservoir Style | Removable |
| Boss, Nipple or Port: Front, Left: #A [cntrc] | M12-1.00 bbl |
| Boss, Nipple or Port: Front, Right: #A [cntrc] | M10-1.00 bbl |
| Boss, Nipple or Port: Rear, Right: #A [cntrc] | M12-1.00 bbl |
| Boss, Nipple or Port: Rear: #A [cntrc] | M10-1.00 bbl |
| Product line | Centric Premium Brake Master Cylinders |
| Fits | Ford and Mercury · 6 vehicles |
OE-style replacement. Matches original equipment quality, configuration, and fitment.
Aluminum casting body. Uses an original-style aluminum body where applicable.
Complete assembly. Includes a reservoir, cap, switches, and floats.
Cross-references ATP 102372, Dorman - First Stop M39543 and Four Seasons 39543 for the same application. See all 26.
Centric Premium Brake Master Cylinder 130.61040
The Centric Premium Brake Master Cylinder 130.61040 is built for direct replacement on select Ford Taurus and Mercury Sable applications. It matches original equipment configuration and fitment, with an aluminum master cylinder body, stepped bore design, and a removable single plastic reservoir.
Centric Premium Brake Master Cylinders are part of the Centric Premium Brake Master Cylinders line, which focuses on OE-style brake hydraulic replacement parts for service work that demands correct form, port layout, and component configuration. This master cylinder includes the reservoir and cap, and uses bubble flare outlet connections for the specified brake hydraulic setup.
Key Features
- Part number 130.61040
- OE-style brake master cylinder replacement
- Aluminum master cylinder material
- Single removable plastic reservoir included
- Master cylinder cap included
- Stepped bore design with 1.250 in primary bore and 0.875 in secondary bore
- Primary outlet: M10-1.00 bubble flare
- Secondary outlet: M12-1.00 bubble flare
- 4-port configuration with 2 mounting holes
Detailed Description
This Centric brake master cylinder is engineered for hydraulic brake service where correct bore sizing, outlet thread pattern, and reservoir layout matter. It is a direct-fit replacement for 1986-1988 Ford Taurus and 1986-1988 Mercury Sable applications listed below, including 1986-1988 Ford Taurus, N/A; 1986-1987 Mercury Sable, N/A; and 1988 Mercury Sable, N/A to 6/19/88. The 130.61040 part number is also referenced in cross applications such as Dorman - First Stop M39543 and Raybestos Brakes MC39543.
Use this master cylinder when servicing a vehicle with a stepped bore brake hydraulic setup that requires M10-1.00 and M12-1.00 bubble flare outlet connections. The aluminum body, removable reservoir style, and included cap support a clean OE-style replacement for brake system repair.
What It Helps Fix
- Brake pedal that sinks due to internal master cylinder leakage
- Loss of hydraulic pressure in the brake system
- External fluid seepage at the master cylinder body or ports
- Incorrect outlet thread or flare mismatch during brake repair
- Reservoir damage or deterioration on the original unit
Installation Notes
Verify bore size, outlet thread size, flare type, and reservoir layout before installation. This unit does not include mounting hardware, brake booster, push rod, or bleeder hoses. Bench bleeding is recommended before final installation, and the brake system should be inspected for fluid condition, line integrity, and proper pedal feel after service.
Fits 1986-1988 Ford Taurus, N/A. Fits 1986-1987 Mercury Sable, N/A. Fits 1988 Mercury Sable, N/A to 6/19/88.
Quality Assurance
Centric’s brake hydraulic program is built around OE-style replacement standards for configuration and fitment. The 130.61040 master cylinder is supplied with the reservoir and cap as specified, and is intended to match the original brake hydraulic layout for the listed Ford Taurus and Mercury Sable applications.
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 1988 | Ford | Taurus | Sedan | N/A | 1986 - 6/19/88; Centric Premium Brake Master Cylinders |
| 1988 | Mercury | Sable | Sedan | N/A | To 6/19/88; Centric Premium Brake Master Cylinders |
| 1987 | Ford | Taurus | Sedan | N/A | 1986 - 6/19/88; Centric Premium Brake Master Cylinders |
| 1987 | Mercury | Sable | Sedan | N/A | Centric Premium Brake Master Cylinders |
| 1986 | Ford | Taurus | Sedan | N/A | 1986 - 6/19/88; Centric Premium Brake Master Cylinders |
| 1986 | Mercury | Sable | Sedan | N/A | Centric Premium Brake Master Cylinders |
