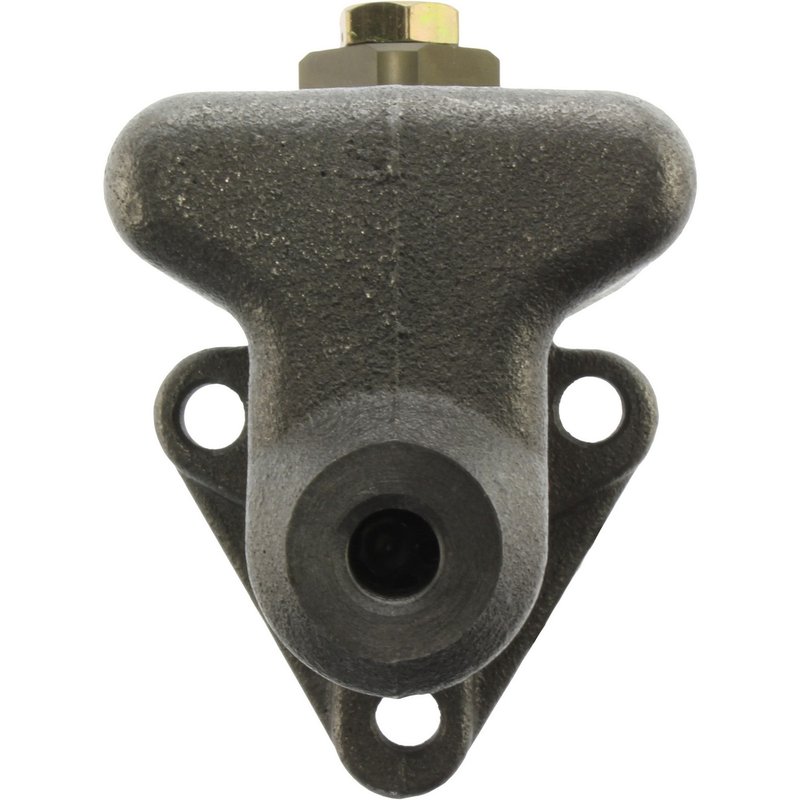

Centric 130.61106 Brake Master Cylinder

Overview of Centric Premium Brake Master Cylinder 130.61106

The Centric Premium Brake Master Cylinder 130.61106 is designed specifically for Lincoln Continental models, providing reliable brake hydraulics performance. This brake master cylinder features a cast iron reservoir and master cylinder body, ensuring durability and consistent braking response.

• Cast iron reservoir and master cylinder for strength and longevity
• Includes dust boot and master cylinder cap for protection
• Single integral reservoir style with one port and three mounting holes
• Master cylinder bore diameter of 1.063 inches (26.99 mm) with a straight bore type
• Primary outlet thread size 1/2"-20 with open flare type
• Compatible with Lincoln Continental brake hydraulic systems

About Centric Premium Brake Master Cylinders

The Centric Premium Brake Master Cylinders line focuses on delivering high-quality replacement parts engineered to meet or exceed OEM specifications. This product line emphasizes durable materials such as cast iron construction and precise bore dimensions to maintain proper hydraulic pressure and brake system integrity. The 130.61106 model is part of this line, offering a reliable solution for Lincoln Continental vehicles requiring a direct-fit brake master cylinder replacement.

Product Details and Specifications

This brake master cylinder features a cast iron reservoir and master cylinder body, providing robust construction to withstand the demands of brake system pressure. The single integral reservoir design simplifies installation and maintenance. It includes a dust boot and master cylinder cap to protect internal components from contaminants. The bore diameter measures 1.063 inches (26.99 mm), with a straight bore type to ensure consistent fluid flow. The primary outlet has a 1/2"-20 thread size with an open flare, compatible with standard brake line fittings. The unit mounts with three holes, designed for direct compatibility with Lincoln Continental brake systems. Note that mounting hardware, brake booster, push rod, bleeder hoses, and mounting bracket are not included.

Common Applications and Problem Solving

• Replacement for worn or leaking brake master cylinders on Lincoln Continental models
• Restores proper hydraulic pressure for consistent brake pedal feel
• Addresses brake fluid leaks caused by damaged reservoir or seals
• Eliminates spongy or unresponsive brake pedal issues
• Prevents brake system failure due to master cylinder bore wear or corrosion

Installation Notes and Tips

• Ensure compatibility with Lincoln Continental brake system before installation
• Use proper brake fluid and bleed the system thoroughly after installation
• Inspect brake lines and fittings for wear or damage during replacement
• Do not reuse old mounting hardware; source new hardware if necessary
• Verify that the dust boot and master cylinder cap are properly seated to prevent contamination

Quality Assurance and Warranty

The Centric Premium Brake Master Cylinder 130.61106 is manufactured to meet strict quality standards, using cast iron materials for durability and performance. While specific warranty details are not provided, Centric products typically adhere to industry standards for replacement brake components, ensuring reliable operation when installed correctly and maintained according to manufacturer guidelines.
