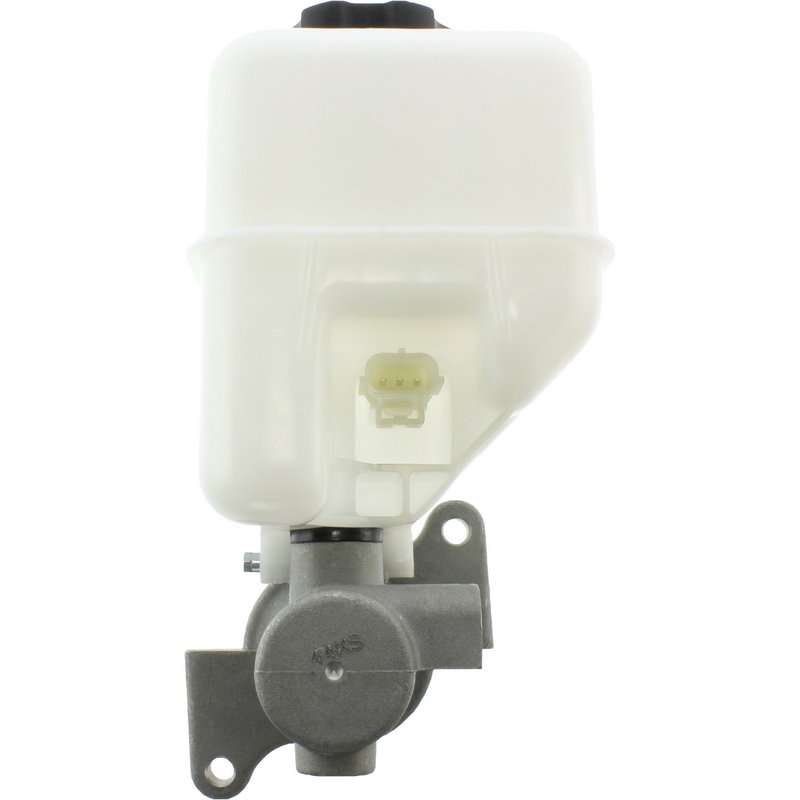

Centric 130.65098 Brake Master Cylinder
Overview of Centric Premium Brake Master Cylinder 130.65098
The Centric Premium Brake Master Cylinder 130.65098 is engineered for reliable brake performance in Ford F-250 Super Duty and F-350 Super Duty trucks. Designed with durable aluminum construction and a plastic reservoir, this master cylinder ensures consistent hydraulic pressure for safe braking.
- Compatible with Ford F-250 Super Duty and F-350 Super Duty models
- Aluminum master cylinder body for strength and corrosion resistance
- Plastic single reservoir included for brake fluid storage
- Includes gasket and master cylinder cap for proper sealing
- Two mounting holes for secure installation
- Primary and secondary outlet thread sizes: M10-1.00 and M12-1.00
- Requires one brake pressure switch (not included)
- Part number 130.65098 for precise identification
About Centric Premium Brake Master Cylinders
The Centric Premium Brake Master Cylinders line focuses on delivering high-quality brake hydraulics components that meet or exceed OEM specifications. This product line emphasizes durability and precise fitment, making it suitable for heavy-duty applications such as Ford Super Duty trucks. The 130.65098 master cylinder is part of this line, offering a balance of performance and reliability for demanding brake systems.
Detailed Product Description
This brake master cylinder features a straight bore design with a bore diameter of 1.313 inches (33.338 mm), providing consistent hydraulic pressure for effective braking. The aluminum construction offers resistance to corrosion and wear, while the included plastic reservoir holds brake fluid securely. The master cylinder comes with a gasket and cap to ensure a tight seal and prevent leaks. It has three ports with bubble flare types on both primary and secondary outlets, designed for secure brake line connections. Note that mounting hardware, push rod, brake booster, and bleeder hoses are not included with this part.
Common Applications and Issues Addressed
- Replacement for worn or leaking master cylinders in Ford F-250 and F-350 Super Duty trucks
- Restores proper brake fluid pressure and pedal feel
- Eliminates brake fluid leaks from damaged reservoirs or seals
- Resolves inconsistent braking caused by internal bore wear
- Supports brake system maintenance requiring a new master cylinder assembly
Installation Notes and Tips
- Ensure compatibility with Ford F-250 Super Duty and F-350 Super Duty models before installation
- Use the included gasket and cap to maintain a proper seal
- Brake pressure switch installation is required but not included; source separately
- Bleed the brake system thoroughly after installation to remove air
- Verify mounting hole alignment and secure with appropriate hardware (not included)
Quality Assurance and Warranty
Centric Premium Brake Master Cylinders are manufactured to meet strict quality standards for durability and performance. This part is designed to provide reliable service life under normal operating conditions. Warranty details should be confirmed with the product documentation or supplier, as they may vary.
| Brand | Centric |
|---|---|
| Part Number | 130.65098 |
| Position | Centric Premium Brake Master Cylinders |
| Bleeder Hoses Included | No |
| Bore Size | 1.313 |
| Bore Size | 33.338 |
| Bore Type | Straight |
| Boss, Nipple or Port: Bottom [cntrc] | 3/8"-24 inv valve |
| Boss, Nipple or Port: Front, Left: #A [cntrc] | M12-1.00 bbl |
| Boss, Nipple or Port: Rear: #A [cntrc] | M10-1.00 bbl |
| Brake Booster Included | No |
| Brake Pressure Switch Quantity | 1 |
| Brake Pressure Switch Required | Yes |
| Brake Pressure Switch(s) Included | No |
| Cylinder Bore Dia in | 1 5/16" |
| Cylinder Bore Dia mm | 33.34 |
| Gasket Or Seal Included | Yes |
| Master Cylinder Bore Diameter | 1.313 |
| Master Cylinder Bore Diameter | 33.338 |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Aluminum |
| Mounting Bracket Included | No |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 2 |
| Port Quantity | 3 |
| Primary Bore Diameter | 1.313 |
| Primary Bore Diameter | 33.338 |
| Primary Outlet Flare Type | Bubble |
| Primary Outlet Flare Type [cntrc] | Bubble |
| Primary Outlet Thread Diameter | 10.000 |
| Primary Outlet Thread Pitch | 1.00 |
| Primary Outlet Thread Size | M10-1.00 |
| Publication Bore [cntrc] | 1 5/16" |
| Push Rod Included | No |
| Push Rod Lgth / Depth | 1.98" |
| Push Rod: Length / Depth [cntrc] in | 1.98 |
| Reservoir Included | Yes |
| Reservoir Material | Plastic |
| Reservoir Style | Removable |
| Reservoir Type | Single |
| Secondary Outlet Flare Type | Bubble |
| Secondary Outlet Flare Type [cntrc] | Bubble |
| Secondary Outlet Thread Diameter | 12.000 |
| Secondary Outlet Thread Pitch | 1.00 |
| Secondary Outlet Thread Size | M12-1.00 |
| Weight [cntrc] kgs | 1.93 |
| Weight [cntrc] lbs | 4.25 |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Fuel Type | Position | Notes |
|---|---|---|---|---|---|
| 2007 | Ford | F-350 Super Duty | GAS | N/A | exc Brk Cntrl V; To 12/06; Centric Premium Brake Master Cylinders |
| 2006 | Ford | F-250 Super Duty | GAS | N/A | exc Brk Cntrl; To 12/17/06; Centric Premium Brake Master Cylinders |
| 2006 | Ford | F-350 Super Duty | GAS | N/A | exc Brk Cntrl V; To 12/06; Centric Premium Brake Master Cylinders |
| 2005 | Ford | F-250 Super Duty | GAS | N/A | exc Brk Cntrl; To 12/17/06; Centric Premium Brake Master Cylinders |
| 2005 | Ford | F-350 Super Duty | GAS | N/A | exc Brk Cntrl V; Centric Premium Brake Master Cylinders |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
