OE Quality
60-Day Returns

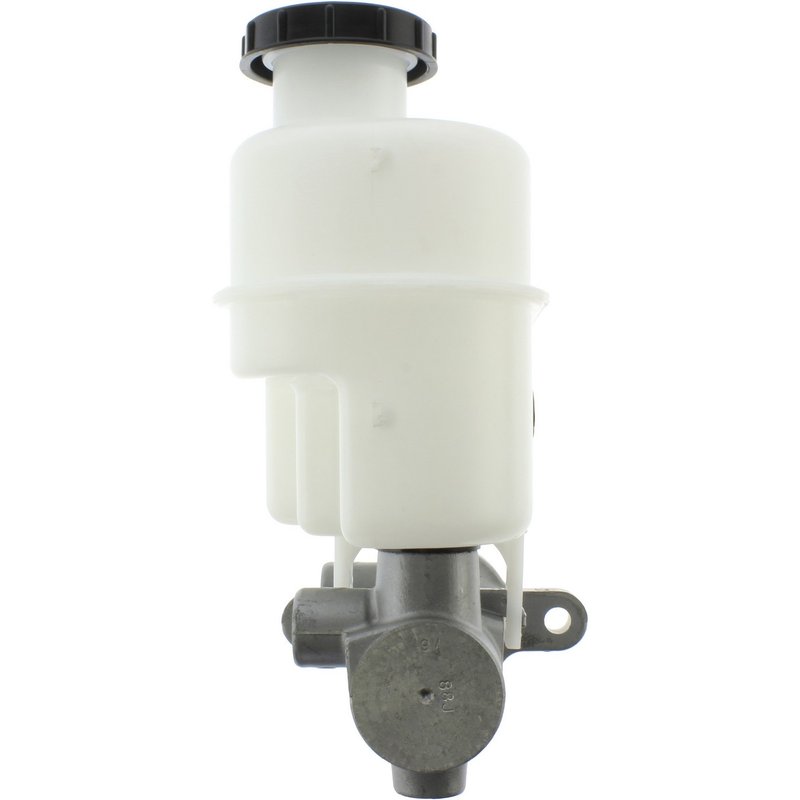

Centric 130.65118 Brake Master Cylinder
Overview of Centric Premium Brake Master Cylinder 130.65118
The Centric Premium Brake Master Cylinder 130.65118 is designed specifically for Ford E-150, E-250, and E-350 Super Duty models. This brake master cylinder ensures reliable hydraulic pressure for your vehicle's braking system, featuring durable aluminum construction and a plastic reservoir for long-lasting performance.
- Compatible with Ford E-150, E-250, and E-350 Super Duty
- Aluminum master cylinder body with plastic single reservoir
- Includes master cylinder cap and gasket/seal
- Two mounting holes for secure installation
- Primary and secondary outlet thread sizes: M12-1.50 and M10-1.50
- Requires one brake pressure switch (not included)
- Straight bore type with 1.313 inch (33.338 mm) bore diameter
- Inverted flare type on both primary and secondary outlets
About Centric Premium Brake Master Cylinders
The Centric Premium Brake Master Cylinders line focuses on delivering precise hydraulic control and durability for brake systems. This product line uses quality materials such as aluminum for the master cylinder body and includes essential components like the reservoir and cap to maintain system integrity. The 130.65118 model is engineered to meet OEM specifications for Ford vans, ensuring consistent brake performance and safety.
Product Details and Specifications
This brake master cylinder features a single plastic reservoir designed to hold brake fluid securely. The aluminum construction provides corrosion resistance and strength, while the two mounting holes allow for a stable fitment on compatible Ford models. The bore diameter measures 1.313 inches (33.338 mm), supporting effective hydraulic pressure generation. Both primary and secondary outlets have inverted flare fittings with thread sizes M12-1.50 and M10-1.50 respectively, facilitating proper brake line connections. The product includes a master cylinder cap and gasket/seal but does not come with mounting hardware, push rod, brake booster, or bleeder hoses.
Common Applications and Problem Solving
- Replacement for worn or leaking brake master cylinders on Ford E-150, E-250, and E-350 Super Duty
- Restores proper brake fluid pressure and pedal feel
- Addresses brake fluid leaks from reservoir or cylinder body
- Resolves inconsistent braking performance due to internal bore wear
- Supports brake system maintenance requiring OEM-spec master cylinder
Installation Notes and Tips
Ensure the brake pressure switch is installed separately as it is required but not included. Verify the mounting surface is clean and free of debris before installation. Use the included gasket or seal to prevent fluid leaks. Since mounting hardware is not included, retain original bolts or source compatible fasteners. Bleed the brake system thoroughly after installation to remove air and ensure proper hydraulic function.
Quality Assurance and Warranty
Centric Premium Brake Master Cylinders are manufactured to meet or exceed OEM standards for fit, form, and function. The 130.65118 part undergoes rigorous quality control to ensure durability and reliable braking performance. Warranty coverage details should be confirmed with the product supplier or manufacturer documentation.
| Brand | Centric |
|---|---|
| Part Number | 130.65118 |
| Position | Centric Premium Brake Master Cylinders |
| Bleeder Hoses Included | No |
| Bore Size | 1.313 |
| Bore Size | 33.338 |
| Bore Type | Straight |
| Boss, Nipple or Port: Bottom [cntrc] | 3/8"-24 inv |
| Boss, Nipple or Port: Front, Right: #A [cntrc] | M10-1.50 inv |
| Boss, Nipple or Port: Rear, Right: #A [cntrc] | M12-1.50 inv |
| Brake Booster Included | No |
| Brake Pressure Switch Quantity | 1 |
| Brake Pressure Switch Required | Yes |
| Brake Pressure Switch(s) Included | No |
| Cylinder Bore Dia in | 1 5/16" |
| Gasket Or Seal Included | Yes |
| Master Cylinder Bore Diameter | 1.313 |
| Master Cylinder Bore Diameter | 33.338 |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Aluminum |
| Mounting Bracket Included | No |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 2 |
| Port Quantity | 3 |
| Primary Bore Diameter | 1.313 |
| Primary Bore Diameter | 33.338 |
| Primary Outlet Flare Type | Inverted |
| Primary Outlet Flare Type [cntrc] | Inverted |
| Primary Outlet Thread Diameter | 12.000 |
| Primary Outlet Thread Pitch | 1.50 |
| Primary Outlet Thread Size | M12-1.50 |
| Publication Bore [cntrc] | 1 5/16" |
| Push Rod Included | No |
| Push Rod Lgth / Depth | Dimple |
| Push Rod: Length / Depth [cntrc] in | dmpl |
| Reservoir Included | Yes |
| Reservoir Material | Plastic |
| Reservoir Style | Removable |
| Reservoir Type | Single |
| Secondary Outlet Flare Type | Inverted |
| Secondary Outlet Flare Type [cntrc] | Inverted |
| Secondary Outlet Thread Diameter | 10.000 |
| Secondary Outlet Thread Pitch | 1.50 |
| Secondary Outlet Thread Size | M10-1.50 |
| Weight [cntrc] kgs | 1.93 |
| Weight [cntrc] lbs | 4.25 |
This part fits 3 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2008 | Ford | E-150 | N/A | Centric Premium Brake Master Cylinders |
| 2008 | Ford | E-250 | N/A | Centric Premium Brake Master Cylinders |
| 2008 | Ford | E-350 Super Duty | N/A | exc RSC; SRW; Centric Premium Brake Master Cylinders |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
