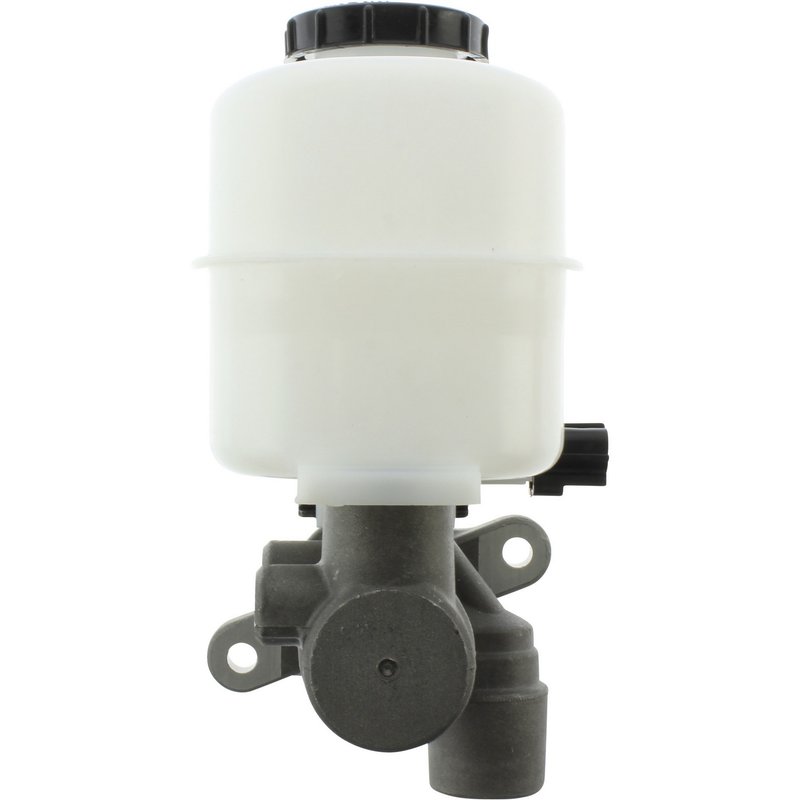

Centric 130.65125 Brake Master Cylinder
| Brand | Centric 130.65125 |
|---|---|
| Reservoir Material | Plastic |
| Mounting Hardware Included | No |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 2 |
| Master Cylinder Bore Diameter | 1.125 |
| Master Cylinder Bore Diameter | 28.575 |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Aluminum |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Reservoir Type | Single |
| Primary Outlet Thread Diameter | 14.000 |
| Secondary Outlet Thread Diameter | 10.000 |
| Bleeder Hoses Included | No |
| Port Quantity | 2 |
| Mounting Bracket Included | No |
| Secondary Outlet Thread Pitch | 1.00 |
| Primary Outlet Thread Pitch | 1.50 |
| Bore Type | Straight |
| Bore Size | 1.125 |
| Bore Size | 28.575 |
| Secondary Outlet Thread Size | M10-1.00 |
| Primary Outlet Thread Size | M14-1.50 |
| Primary Outlet Flare Type | Inverted |
| Secondary Outlet Flare Type | Inverted |
| Primary Bore Diameter | 1.125 |
| Primary Bore Diameter | 28.575 |
| Reservoir Style | Removable |
| Boss, Nipple or Port: Front, Right: #A [cntrc] | M10-1.00 inv |
| Product line | Centric Premium Brake Master Cylinders |
| Fits | Ford · 1 vehicle |
OE-style fitment. Matches original equipment quality and configuration.
Aluminum body. Uses an aluminum casting design where applicable.
Complete assembly. Includes reservoir, cap, switches, and floats.
Cross-references Dorman - First Stop M630528, Quality-Built NM4171 and Raybestos Brakes MC391150 for the same application. See all 9.
Centric Premium Brake Master Cylinder for Ford F-150
The Centric Premium Brake Master Cylinder, part number 130.65125, is built for direct replacement on the 2009 Ford F-150. It is configured to match original equipment fitment and hydraulic layout, with an aluminum master cylinder body, single removable plastic reservoir, and included cap, reservoir, and seal.
Centric’s Premium Brake Master Cylinders are part of the Centric Premium Brake Master Cylinders line, which focuses on OE-style brake hydraulic replacement parts for vehicles that need correct configuration, port layout, and component fit. For 2009 Ford F-150 brake master cylinder replacement, this unit is designed around the factory-style bore and outlet arrangement.
Key Features
- Part number 130.65125
- Fits 2009 Ford F-150
- 1.125 in. bore diameter / 28.575 mm bore size
- Aluminum master cylinder body
- Single removable plastic reservoir
- Cap, reservoir, and gasket or seal included
- 2 mounting holes
- Primary outlet: M14-1.50 inverted flare
- Secondary outlet: M10-1.00 inverted flare
- No brake booster, push rod, or mounting hardware included
Detailed Description
This Centric brake master cylinder is engineered for the hydraulic demands of the 2009 Ford F-150 brake system. It uses a straight bore design with a 1 1/8 in. bore, two ports, and OE-style inverted flare outlet threads for proper line connection. The aluminum casting body and removable reservoir style support a factory-like replacement layout, while the included cap and seal help complete the assembly.
Part number 130.65125 is also referenced in cross applications such as Dorman First Stop M630528 for the same application. If you are replacing a leaking or worn Ford F-150 master cylinder, this unit provides the correct bore size and outlet configuration for a direct hydraulic service repair.
Common Repair Uses
- Brake pedal that sinks due to internal master cylinder bypass
- External brake fluid leakage at the master cylinder body or ports
- Soft or inconsistent brake pedal feel after hydraulic wear
- Loss of braking performance caused by worn internal seals
- Replacement after corrosion or reservoir-related failure
Installation Notes and Tips
Before installation, verify the outlet thread sizes, bore diameter, and reservoir style against the removed unit. Bench bleeding the master cylinder before connecting brake lines helps reduce trapped air in the hydraulic system. Inspect brake lines, fittings, and the brake booster interface during service, and confirm the push rod setup matches the vehicle specification since the push rod is not included.
Quality Assurance
Centric’s brake hydraulic program is built around OE-style configuration and fitment, with master cylinders matched to original equipment dimensions and port layouts where applicable. This part number 130.65125 is designed as a direct replacement for the 2009 Ford F-150 brake master cylinder application.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2009 | Ford | F-150 | N/A | Centric Premium Brake Master Cylinders |
