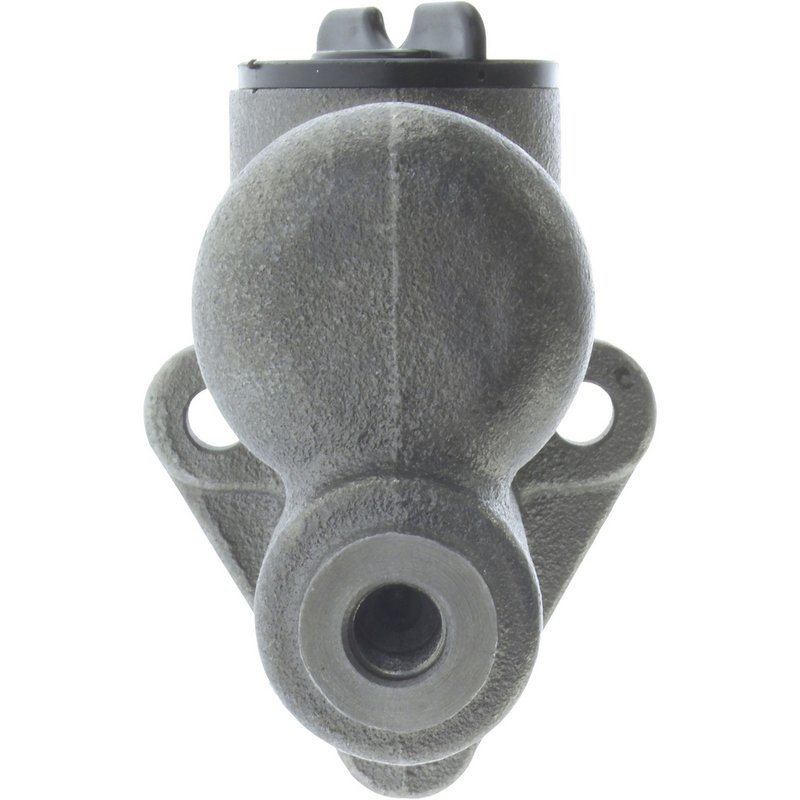

Centric 130.66032 Brake Master Cylinder

Overview of Centric Premium Brake Master Cylinder 130.66032

The Centric Premium Brake Master Cylinder 130.66032 is engineered for reliable brake hydraulic performance. Designed with a cast iron reservoir and master cylinder, this part ensures durability and consistent braking pressure for vehicles requiring a 1.125 inch bore diameter.

• Cast iron reservoir and master cylinder for strength and longevity
• Includes dust boot, push rod, reservoir, and master cylinder cap
• Single integral reservoir style with one port and three mounting holes
• Primary outlet thread size 1/2"-20 with bubble flare type
• Compatible with brake systems requiring a 1.125" (28.575 mm) bore diameter

Detailed Product Features and Specifications

This Centric Premium Brake Master Cylinder features a straight bore type with a precise 1.125 inch (28.575 mm) diameter, suitable for specific brake hydraulic applications. The cast iron construction of both the reservoir and cylinder provides enhanced resistance to wear and corrosion. The integral single reservoir design simplifies installation and maintenance. Included components such as the dust boot, push rod, and master cylinder cap contribute to a complete assembly ready for integration into compatible brake systems. The primary outlet uses a 1/2"-20 thread with a bubble flare, ensuring secure and leak-resistant brake line connections. Note that mounting hardware, brake booster, bleeder hoses, and mounting brackets are not included with this part.

About Centric Premium Brake Master Cylinders

The Centric Premium Brake Master Cylinders line focuses on delivering reliable brake hydraulics with precision engineering and durable materials. This product line is designed to meet or exceed OEM specifications, providing a direct replacement for vehicles requiring specific bore sizes and configurations. The 130.66032 model exemplifies this approach by combining cast iron construction with integral reservoir design for consistent braking performance.

Common Applications and Problem Solving

• Replacement for worn or leaking master cylinders in compatible vehicles
• Restores proper hydraulic pressure for improved brake pedal feel
• Addresses issues with brake fluid leaks from damaged reservoirs
• Resolves inconsistent braking caused by bore wear or internal seal failure
• Suitable for vehicles requiring a 1.125" bore diameter master cylinder

Installation Notes and Tips

Ensure compatibility with your vehicle’s brake system by verifying bore size and mounting hole configuration. The 130.66032 includes the push rod and master cylinder cap but does not come with mounting hardware or brake booster. Use appropriate brake line fittings matching the 1/2"-20 bubble flare outlet thread. Bleeding the brake system thoroughly after installation is essential to remove air and ensure optimal brake performance.

Quality Assurance and Warranty

Centric Premium Brake Master Cylinders are manufactured to meet strict quality standards, using durable cast iron materials for long service life. While specific warranty details for part number 130.66032 are not provided here, Centric typically offers coverage against defects in materials and workmanship. Refer to Centric’s official documentation for complete warranty information.
