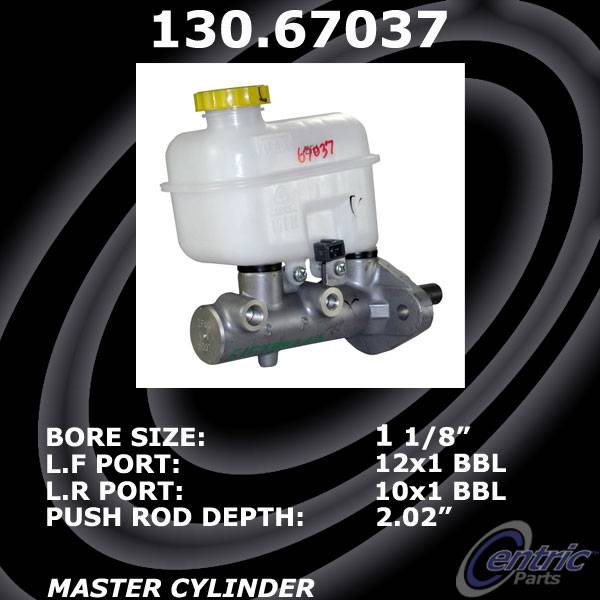

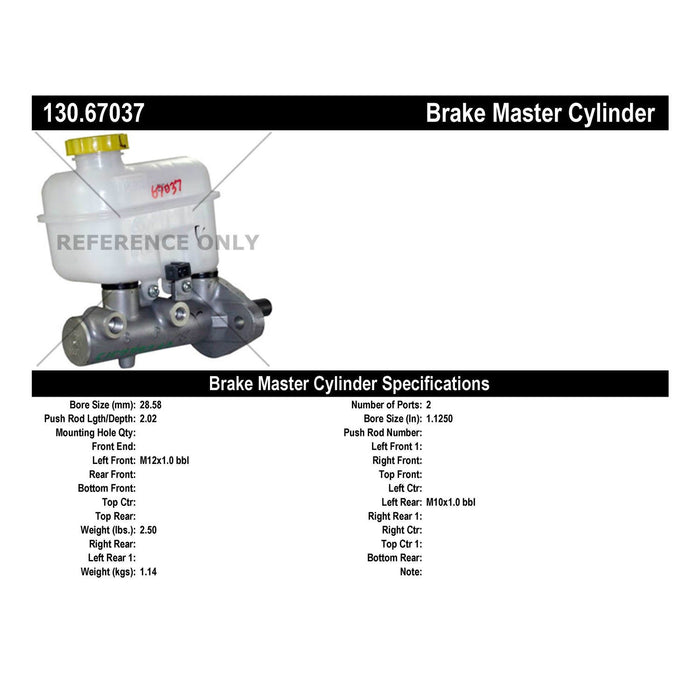

Centric 130.67037 Brake Master Cylinder

Vehicle Compatibility Chart

Part Attributes

• Bleeder Hoses Included:
  No
• Bore Size:
  1.125
• Bore Size:
  28.575
• Bore Type:
  Straight
• Boss, Nipple or Port: Front, Left: #A [cntrc]:
  M12-1.00 bbl
• Boss, Nipple or Port: Rear: #A [cntrc]:
  M10-1.00 bbl
• Brake Booster Included:
  No
• Cylinder Bore Dia in:
  1.1250
• Cylinder Bore Dia mm:
  28.58
• Master Cylinder Bore Diameter:
  1.125
• Master Cylinder Bore Diameter:
  28.575
• Master Cylinder Cap Included:
  Yes
• Master Cylinder Material:
  Aluminum
• Mounting Bracket Included:
  No
• Mounting Hardware Included:
  No
• Mounting Hole Quantity:
  2
• Port Quantity:
  2
• Primary Bore Diameter:
  1.125
• Primary Bore Diameter:
  28.575
• Primary Outlet Flare Type:
  Bubble
• Primary Outlet Flare Type [cntrc]:
  Bubble
• Primary Outlet Thread Diameter:
  10.000
• Primary Outlet Thread Pitch:
  1.00
• Primary Outlet Thread Size:
  M10-1.00
• Publication Bore [cntrc]:
  1 1/8"
• Push Rod Included:
  No
• Push Rod Lgth / Depth:
  2.02
• Push Rod: Length / Depth [cntrc] in:
  2.02
• Reservoir Included:
  Yes
• Reservoir Material:
  Plastic
• Reservoir Style:
  Removable
• Reservoir Type:
  Single
• Secondary Outlet Flare Type:
  Bubble
• Secondary Outlet Flare Type [cntrc]:
  Bubble
• Secondary Outlet Thread Diameter:
  12.000
• Secondary Outlet Thread Pitch:
  1.00
• Secondary Outlet Thread Size:
  M12-1.00
• Weight [cntrc] kgs:
  1.14
• Weight [cntrc] lbs:
  2.5

Part Interchanges
