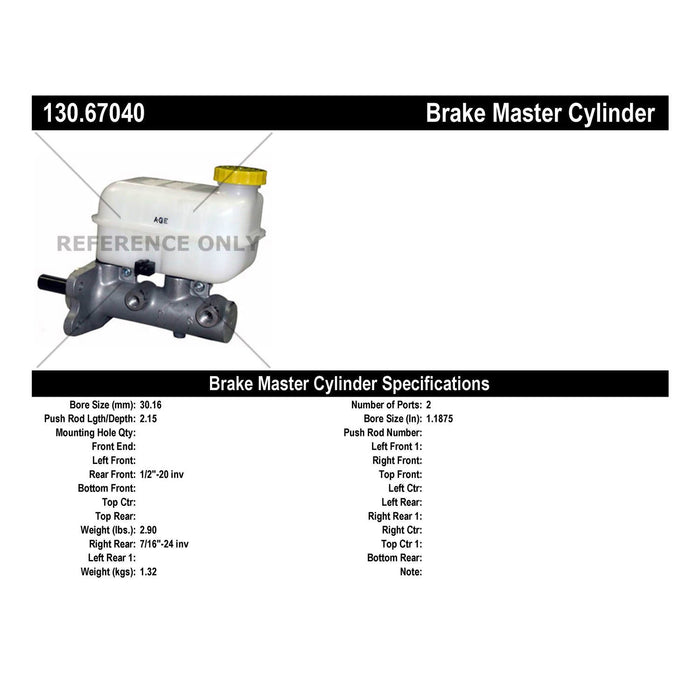

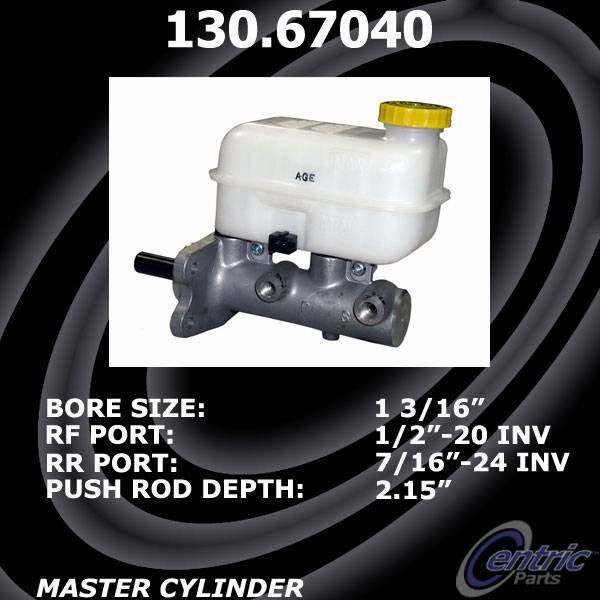

Centric 130.67040 Brake Master Cylinder

Vehicle Compatibility Chart

Part Attributes

• Bleeder Hoses Included:
  No
• Bore Size:
  1.188
• Bore Size:
  30.163
• Bore Type:
  Straight
• Boss, Nipple or Port: Front, Right: #A [cntrc]:
  1/2"-20 inv
• Boss, Nipple or Port: Rear, Right: #A [cntrc]:
  7/16"-24 inv
• Brake Booster Included:
  No
• Cylinder Bore Dia in:
  1.1875
• Cylinder Bore Dia mm:
  30.16
• Master Cylinder Bore Diameter:
  1.188
• Master Cylinder Bore Diameter:
  30.163
• Master Cylinder Cap Included:
  Yes
• Master Cylinder Material:
  Aluminum
• Mounting Bracket Included:
  No
• Mounting Hardware Included:
  No
• Mounting Hole Quantity:
  4
• Port Quantity:
  2
• Primary Bore Diameter:
  1.188
• Primary Bore Diameter:
  30.163
• Primary Outlet Flare Type:
  Inverted
• Primary Outlet Flare Type [cntrc]:
  Inverted
• Primary Outlet Thread Diameter:
  0.4375
• Primary Outlet Thread Size:
  7/16"-24
• Primary Outlet Threads Per Inch:
  24
• Publication Bore [cntrc]:
  1 3/16"
• Push Rod Included:
  No
• Push Rod Lgth / Depth:
  2.15
• Push Rod: Length / Depth [cntrc] in:
  2.15
• Reservoir Included:
  Yes
• Reservoir Material:
  Plastic
• Reservoir Style:
  Removable
• Reservoir Type:
  Single
• Secondary Outlet Flare Type:
  Inverted
• Secondary Outlet Flare Type [cntrc]:
  Inverted
• Secondary Outlet Thread Diameter:
  0.500
• Secondary Outlet Thread Size:
  1/2"-20
• Secondary Outlet Threads Per Inch:
  20
• Weight [cntrc] kgs:
  1.32
• Weight [cntrc] lbs:
  2.9

Part Interchanges
