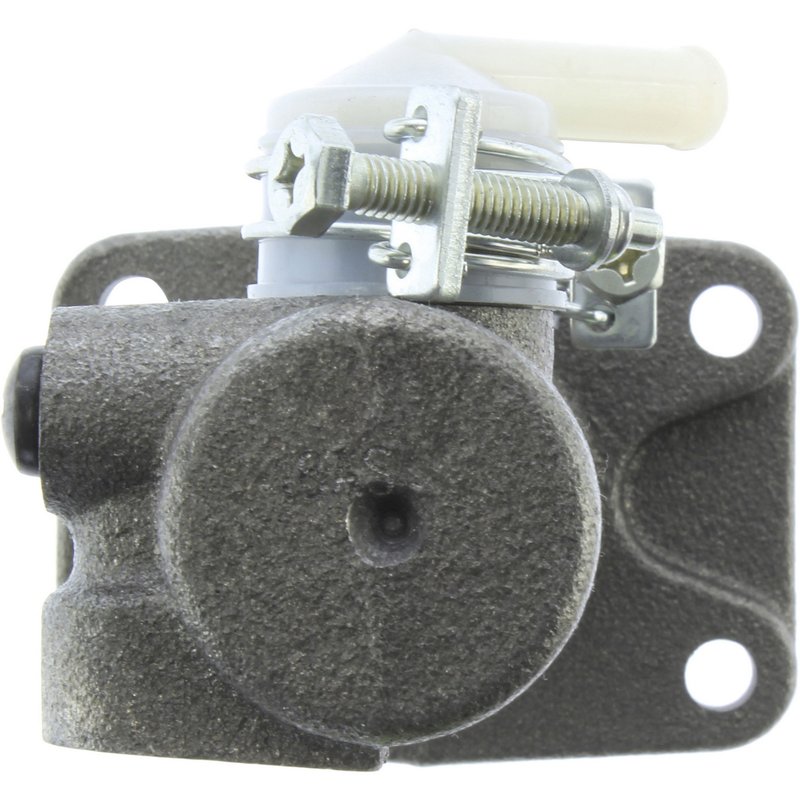

Centric 130.74000 Brake Master Cylinder

Overview of Centric Premium Brake Master Cylinder 130.74000

The Centric Premium Brake Master Cylinder 130.74000 is engineered for reliable brake hydraulic performance. Designed with a durable aluminum body and a plastic reservoir interface, this master cylinder supports consistent braking pressure for various vehicle applications.

• Aluminum master cylinder material for strength and corrosion resistance
• Plastic reservoir material with remote reservoir style
• 1.125 inch (28.58 mm) straight bore diameter for precise hydraulic control
• Four mounting holes for secure installation
• Two ports with M10-1.00 inverted threads for brake line connections
• Push rod length of 1.16 inches (not included)
• Lightweight design at 1.75 lbs (0.8 kgs)

Details on Centric Premium Brake Master Cylinders

The Centric Premium Brake Master Cylinders line focuses on delivering dependable brake hydraulics with quality materials and precise manufacturing. This product line emphasizes durability and fitment accuracy, making it suitable for replacement in a range of vehicles requiring a 1 1/8 inch bore master cylinder. The 130.74000 part number represents a component built to meet OEM specifications without including additional hardware such as reservoirs, push rods, or mounting brackets.

Technical Specifications and Features

This brake master cylinder features a straight bore design with a diameter of 1.125 inches (28.58 mm), ensuring consistent hydraulic pressure for brake systems. The aluminum cylinder body offers resistance to corrosion and wear, while the plastic reservoir interface supports a remote reservoir style setup. The unit includes two ports with M10-1.00 inverted threads located at the bottom and rear bottom positions, facilitating brake line connections. It mounts securely with four mounting holes and weighs approximately 1.75 pounds (0.8 kilograms). Note that this part does not include a brake booster, master cylinder cap, push rod, reservoir, bleeder hoses, or mounting hardware.

Common Applications and Problem Solving

• Replacement for worn or leaking brake master cylinders in compatible vehicles
• Restores proper hydraulic pressure to improve brake pedal feel and responsiveness
• Addresses brake fluid leaks caused by damaged or corroded master cylinder bores
• Solves issues related to inconsistent brake pressure or spongy brake pedal
• Supports brake system maintenance for vehicles requiring a 1 1/8 inch bore master cylinder

Installation Notes and Tips

When installing the Centric Premium Brake Master Cylinder 130.74000, ensure compatibility with your vehicle’s brake system specifications, particularly the bore size and port thread type. Since mounting hardware and push rods are not included, use existing components or source appropriate parts separately. Properly bleed the brake system after installation to remove air and ensure optimal brake performance. Verify that the remote reservoir is correctly connected and secured to prevent fluid leaks.

Quality Assurance and Warranty

Centric Premium Brake Master Cylinders are manufactured to meet or exceed OEM standards for brake hydraulics. The 130.74000 part number undergoes rigorous quality control to ensure durability and reliable operation. While specific warranty details are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
