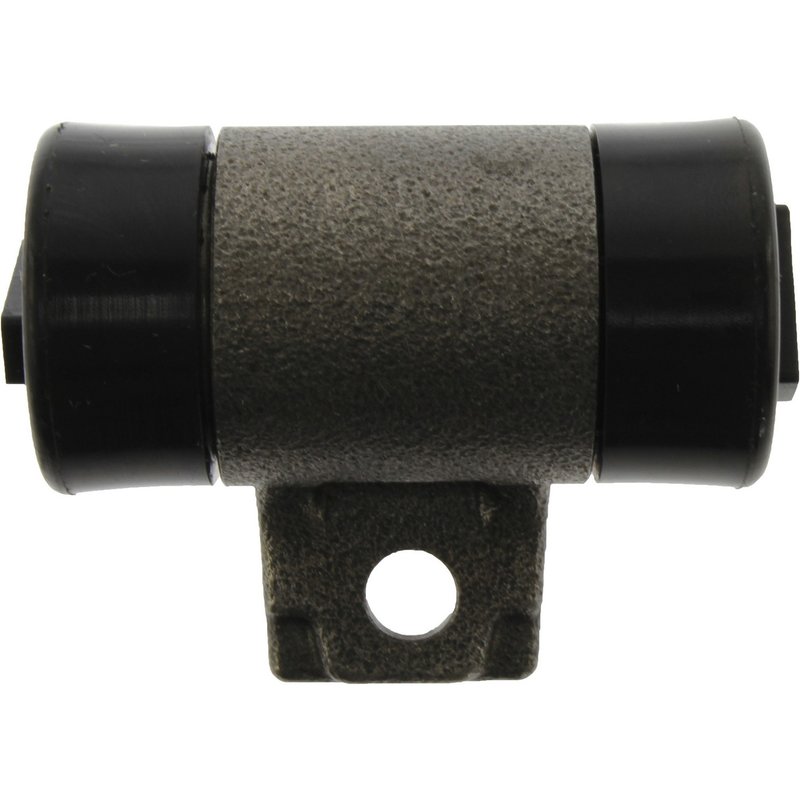

Centric 134.33200 Drum Brake Wheel Cylinder - Rear

Overview of Centric Premium Wheel Cylinders 134.33200

The Centric Premium Wheel Cylinders 134.33200 is a reliable drum brake wheel cylinder designed for precise brake hydraulics performance. Engineered with a bolted attachment type and a single mounting bolt, this part ensures secure installation and consistent operation in compatible vehicles.

• Bolted attachment type with 1 bolt mounting method
• Includes bleeder screw with 7mm thread diameter and 1.0 thread pitch
• Dual slotted pistons for balanced brake pressure
• Bore diameter of 22mm (0.866 inches) for optimal hydraulic function
• Bubble flare type inlet fitting with 10mm thread diameter
• Compatible with left and right wheel positions
• Lightweight design at 0.8 lbs (0.36 kgs)

Detailed Product Description

The Centric Premium Wheel Cylinders line focuses on delivering dependable brake hydraulics components that meet or exceed OEM specifications. This particular wheel cylinder, part number 134.33200, features a 22mm bore diameter and two slotted pistons that provide even pressure distribution within the drum brake system. The bolted attachment type with a single mounting hole simplifies installation while maintaining a secure fit. The included bleeder screw, with a 7mm thread diameter and 1.0 thread pitch, facilitates easy brake fluid bleeding to maintain optimal brake performance. The inlet fitting uses a bubble flare type with a 10mm thread diameter, ensuring compatibility with standard brake lines. Designed for use on both left and right sides, this wheel cylinder supports balanced braking across the vehicle.

Common Applications and Problem Solving

• Replaces worn or leaking drum brake wheel cylinders
• Addresses brake fluid leaks at the wheel cylinder
• Restores proper brake pressure and pedal feel
• Eliminates uneven brake application due to piston wear
• Prevents brake drag caused by stuck pistons

Installation Notes and Tips

• Ensure the mounting surface is clean and free of debris before installation
• Use the included bleeder screw to properly bleed the brake system after installation
• Verify the correct orientation for left or right side installation
• Check all hydraulic connections for leaks after assembly
• Consult vehicle-specific service manuals for torque specifications on the 1 bolt mounting method

Quality Assurance and Warranty

Centric Premium Wheel Cylinders are manufactured to meet strict quality standards, ensuring durability and reliable brake performance. Each unit undergoes rigorous testing to verify bore diameter accuracy and piston function. The 134.33200 part number is backed by Centric’s quality assurance protocols, providing confidence in fitment and function. Warranty details are available through Centric and typically cover defects in materials and workmanship under normal use conditions.
