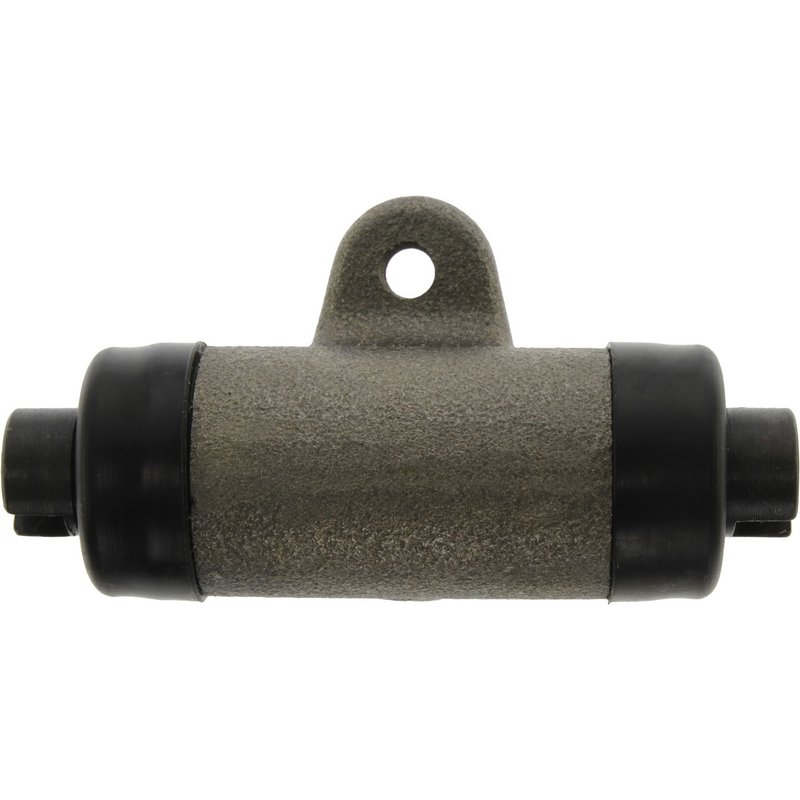

Centric 134.33300 Drum Brake Wheel Cylinder - Rear

Reliable Drum Brake Wheel Cylinder for Precise Braking

The Centric Premium Wheel Cylinders 134.33300 is engineered to deliver consistent hydraulic pressure for drum brake systems. Designed with quality materials and precise specifications, this bolted wheel cylinder ensures dependable performance for various vehicle applications requiring a 22mm bore diameter.

• Bolted attachment type with 1 bolt mounting method
• Includes bleeder screw with 6mm thread diameter and 1.0 thread pitch
• Dual slotted pistons for balanced hydraulic pressure
• Bubble flare type inlet fitting with 10mm thread diameter
• Compatible with left and right wheel positions
• Lightweight design at approximately 1.1 lbs (0.5 kgs)

Detailed Specifications of Centric Premium Wheel Cylinder 134.33300

This drum brake wheel cylinder features a 22mm bore diameter, suitable for precise hydraulic brake actuation. The unit mounts securely using a single bolt, ensuring straightforward installation and stable positioning. It includes a bleeder screw to facilitate brake fluid bleeding, maintaining optimal brake system performance. Both pistons are slotted, enhancing fluid distribution and brake response. The inlet fitting uses a bubble flare type with a 10mm thread diameter and 1.0 thread pitch, compatible with standard brake lines. Designed for use on both left and right sides, this wheel cylinder supports balanced braking across the vehicle.

About Centric Premium Wheel Cylinders Product Line

The Centric Premium Wheel Cylinders line focuses on delivering reliable brake hydraulics components that meet or exceed OEM specifications. This product line emphasizes precision engineering, durable materials, and compatibility with a wide range of vehicle models. The 134.33300 wheel cylinder exemplifies these qualities by providing consistent hydraulic pressure and ease of installation for drum brake systems.

Common Applications and Issues Addressed

• Replacement for leaking or damaged drum brake wheel cylinders
• Restores proper hydraulic pressure to rear drum brakes
• Eliminates brake fluid leaks caused by worn seals or pistons
• Improves brake pedal feel and responsiveness
• Prevents uneven brake wear due to malfunctioning wheel cylinders

Installation Notes and Tips

• Ensure the mounting surface is clean and free of debris before installation
• Use the included bleeder screw to properly bleed air from the brake system
• Verify the correct orientation for left or right side installation
• Check compatibility with vehicle brake lines using the 10mm inlet thread diameter and bubble flare fitting
• Tighten mounting bolt to manufacturer torque specifications to avoid leaks or movement

Quality Assurance and Warranty Information

Centric Premium Wheel Cylinders are manufactured to meet strict quality standards, ensuring durability and reliable performance. The 134.33300 part undergoes rigorous testing to verify bore diameter accuracy, piston function, and leak resistance. While specific warranty details vary by distributor, Centric typically offers coverage against defects in materials and workmanship for a defined period. Consult your parts provider for exact warranty terms.
