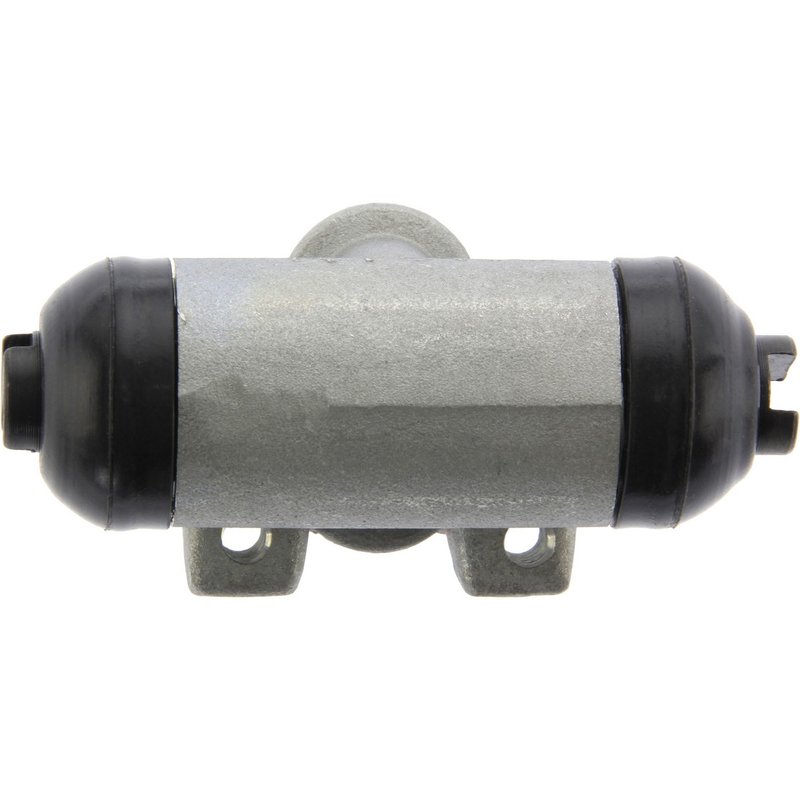

Centric 134.40107 Drum Brake Wheel Cylinder - Rear Left or Rear Right

Overview of Centric Premium Wheel Cylinders 134.40107

The Centric Premium Wheel Cylinder 134.40107 is designed specifically for Honda Accord and CR-V models, providing reliable drum brake hydraulic performance. This bolted wheel cylinder features dual pistons and includes a bleeder screw for efficient brake maintenance.

• Compatible with Honda Accord and CR-V models
• Bolted attachment type with 2-bolt mounting method
• Includes bleeder screw with 6mm thread diameter and 1.0 thread pitch
• Dual slotted pistons for balanced brake pressure
• Inverted flare inlet and port fittings for secure hydraulic connections
• Bore diameter approximately 0.813 inches (13/16")
• Lightweight design at 0.9 lbs (0.41 kgs)

Detailed Product Description

The Centric Premium Wheel Cylinders line offers high-quality brake hydraulics engineered for precise fit and function. The 134.40107 wheel cylinder is constructed with a bolted attachment type, secured by two bolts, ensuring stable mounting within the drum brake assembly. It features two slotted pistons that provide even pressure distribution to the brake shoes, enhancing braking consistency. The included bleeder screw, with a 6mm thread diameter and 1.0 thread pitch, facilitates easy brake fluid bleeding and maintenance. Both the inlet and port fittings utilize an inverted flare design, compatible with standard brake line connections. This wheel cylinder is designed for the left position on the vehicle and matches bore diameters around 0.813 inches, suitable for specific Honda Accord and CR-V drum brake systems.

Applications and Problem Resolution

• Replaces worn or leaking drum brake wheel cylinders on Honda Accord and CR-V
• Addresses brake fluid leaks caused by damaged pistons or seals
• Restores proper hydraulic pressure for consistent braking performance
• Eliminates spongy brake pedal feel due to faulty wheel cylinders
• Supports brake system maintenance with included bleeder screw for fluid evacuation

Installation Notes and Tips

• Ensure compatibility with your specific Honda Accord or CR-V model year before installation
• Use proper tools to remove and install the two mounting bolts securely
• Bleed the brake system thoroughly using the included bleeder screw to remove air
• Inspect brake lines for damage and confirm inverted flare fittings match existing hardware
• Verify the wheel cylinder is installed on the correct (left) side of the vehicle

Quality Assurance and Warranty

Centric Premium Wheel Cylinders are manufactured to meet or exceed OEM specifications for durability and performance. The 134.40107 part undergoes rigorous quality control to ensure reliable operation within Honda Accord and CR-V brake systems. While specific warranty details are not provided here, Centric products typically include coverage against manufacturing defects. Consult product documentation or supplier information for exact warranty terms.
