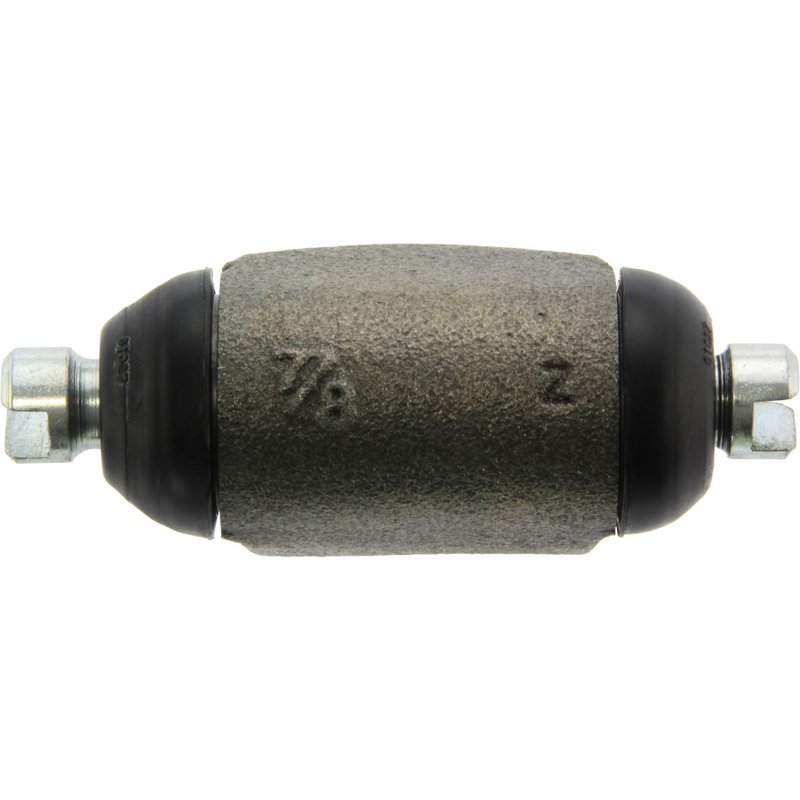

Centric 134.40301 Drum Brake Wheel Cylinder - Rear Right

Overview of Centric Premium Wheel Cylinders for Honda Odyssey

The Centric Premium Wheel Cylinder 134.40301 is designed specifically for the Honda Odyssey, providing reliable drum brake hydraulic performance. This right-side wheel cylinder features a bolted attachment type and includes essential components for effective brake operation.

• Compatible with Honda Odyssey models
• Part number 134.40301 for precise identification
• Bolted attachment with 2 mounting bolts
• Includes bleeder screw with 10mm thread diameter
• Dual slotted pistons for balanced brake pressure
• Bore diameter approximately 7/8 inch (22.225 mm)
• Inverted flare inlet and bleeder screw fittings
• Weight: 1.0 lb (0.45 kg)

Centric Premium Wheel Cylinders Product Line

The Centric Premium Wheel Cylinders line focuses on delivering OE-quality drum brake wheel cylinders with precise fitment and durable construction. This product line includes components that come with rubber o-rings and slotted pistons to ensure proper sealing and brake fluid flow. The 134.40301 model maintains these standards, offering a reliable replacement part for the Honda Odyssey's brake hydraulics system.

Detailed Product Description

This drum brake wheel cylinder is engineered with a 0.875 inch (7/8") bore diameter, matching original equipment specifications for the Honda Odyssey. It features two slotted pistons that help maintain even pressure distribution within the brake system. The bolted attachment method uses two mounting holes, ensuring secure installation on the right side of the vehicle. The included bleeder screw, with a 10mm thread diameter and inverted flare design, facilitates proper brake fluid bleeding and maintenance. The inlet fitting also uses an inverted flare with a 10mm thread diameter and 1.0 thread pitch, compatible with standard brake lines.

Common Applications and Issues Addressed

• Replacement for leaking or damaged drum brake wheel cylinders on Honda Odyssey
• Restores proper hydraulic pressure in rear drum brakes
• Solves brake fluid leakage around pistons or fittings
• Addresses uneven brake application or dragging brakes
• Improves brake system reliability and safety

Installation Notes and Tips

• Ensure the vehicle is securely lifted and supported before installation
• Use the two-bolt mounting method to secure the cylinder firmly
• Bleed the brake system thoroughly using the included bleeder screw to remove air
• Check for proper piston movement and seal integrity during installation
• Verify compatibility with the right side of the Honda Odyssey drum brake assembly

Quality Assurance and Warranty

The Centric Premium Wheel Cylinder 134.40301 is manufactured to meet or exceed OEM standards for fit, form, and function. It includes a rubber o-ring for enhanced sealing and durability. While specific warranty details are not provided here, Centric products typically come with a limited warranty covering defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
