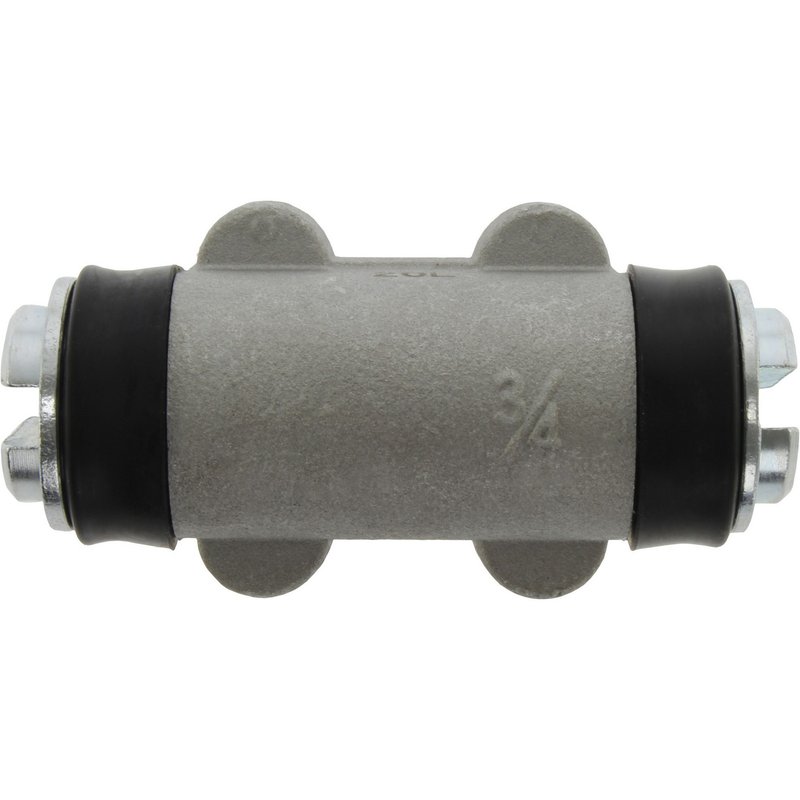

Centric 134.42302 Drum Brake Wheel Cylinder - Rear

Reliable Drum Brake Wheel Cylinder for Precise Braking

The Centric Premium Wheel Cylinders 134.42302 offers dependable performance for drum brake systems requiring a bolted attachment and 4-stud mounting method. Designed for both left and right positions, this wheel cylinder ensures consistent hydraulic pressure and smooth braking response.

• Bolted attachment type for secure installation
• Mounts with 4 studs and 4 mounting holes
• Dual slotted pistons for balanced hydraulic force
• 0.750 inch (19.05 mm) bore diameter for precise fit
• 10 mm inlet thread diameter with 1.000 mm thread pitch
• Bubble flare type inlet fitting for reliable fluid connection
• Compatible with left and right wheel positions
• Lightweight design at 0.9 lbs (0.41 kgs)

Detailed Product Features and Specifications

The Centric Premium Wheel Cylinders 134.42302 is engineered with a 0.750 inch (19.05 mm) bore diameter, providing the correct hydraulic pressure needed for effective drum brake operation. It features two slotted pistons that help maintain even pressure distribution within the brake system. The bolted attachment type and 4-stud mounting method ensure a secure and stable fitment on compatible vehicles. The inlet thread diameter measures 10 mm with a 1.000 mm thread pitch, paired with a bubble flare type fitting to guarantee a leak-free hydraulic connection. This wheel cylinder is designed for use on both left and right sides, making it versatile for various drum brake applications.

About Centric Premium Wheel Cylinders Product Line

The Centric Premium Wheel Cylinders line focuses on delivering high-quality brake hydraulics components that meet or exceed OEM specifications. This product line emphasizes durability and precise fitment, ensuring reliable braking performance and long service life. The 134.42302 wheel cylinder is part of this line, offering a balance of robust construction and accurate engineering for drum brake systems.

Common Applications and Problem Solving

• Replacement for leaking or worn wheel cylinders causing brake fluid loss
• Restores proper hydraulic pressure in drum brake systems
• Eliminates brake drag or uneven braking due to piston wear
• Addresses brake pedal softness caused by faulty wheel cylinders
• Prevents brake failure from corroded or damaged wheel cylinders

Installation Notes and Tips

Ensure the mounting surface is clean and free of debris before installation. Verify the 4-stud mounting holes align correctly with the vehicle’s backing plate. Use compatible brake fluid and bleed the brake system thoroughly after installation to remove air pockets. Although this wheel cylinder does not include a bleeder screw, ensure the vehicle’s existing bleeder valves are functional for proper brake bleeding.

Quality Assurance and Warranty

Centric Premium Wheel Cylinders are manufactured to meet strict quality standards, ensuring reliable performance and durability. The 134.42302 part undergoes rigorous testing to comply with OEM specifications. While specific warranty details are not provided here, Centric typically offers coverage against manufacturing defects to support customer confidence in their brake hydraulic components.
