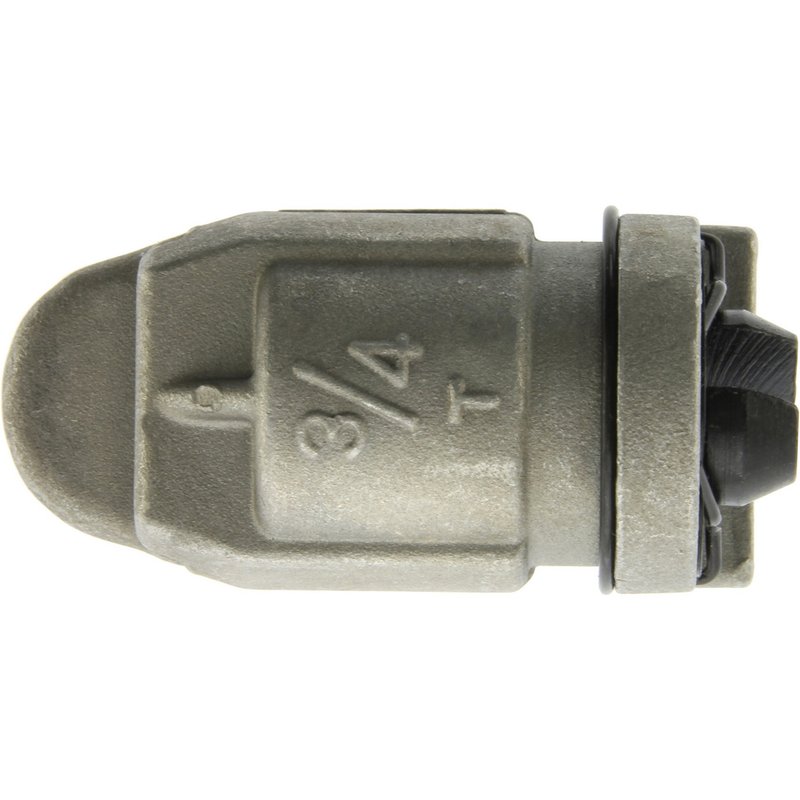

Centric 134.42322 Drum Brake Wheel Cylinder - Front Left

Centric 134.42322 Drum Brake Wheel Cylinder

The Centric Premium Wheel Cylinders line delivers brake hydraulic replacement parts built around OE-style fit and function. Part number 134.42322 is a left-side drum brake wheel cylinder with a 3/4 in. bore, a single piston, and a bolted, 1-stud mounting layout for select drum brake applications.

Compatible With drum brake service needs on vehicles such as Honda Civic and other listed cross-reference applications, this wheel cylinder supports consistent rear brake operation where the original cylinder has leaked, seized, or lost hydraulic pressure. The Centric Premium Wheel Cylinders program covers master cylinders, wheel cylinders, brake hoses, repair kits, and remanufactured power boosters for a broad hydraulic service range.

Key Features

• Centric Premium Wheel Cylinders part number 134.42322
• Drum brake wheel cylinder with 0.750 in. / 19.05 mm bore diameter
• Single-piston design with slotted piston type
• Bolted attachment with 1-stud mounting method and 1 mounting hole
• 10 mm inlet thread diameter with 1.0 mm pitch and bubble flare
• Left-side position
• Bleeder screw not included
• Wheel kit reference: 144.42001

Product Details

This Centric wheel cylinder is built for drum brake hydraulic repair where precise fluid transfer at the wheel end is required. The 3/4 in. bore size, bubble flare inlet, and 10 mm threaded port make it a direct-spec replacement for select compact and midsize applications that use a left-side rear drum brake cylinder. Part number 134.42322 is commonly searched for OE-style brake service on Honda Civic and related cross-reference vehicles.

This part cross-references Monroe Shocks & Struts 37382 for the same application.

Common Problems It Can Help Address

• Brake fluid leakage at the wheel cylinder
• Soft or inconsistent rear drum brake pedal response
• Corrosion or sticking inside the cylinder bore
• Uneven rear brake engagement
• Reduced hydraulic pressure at the drum brake assembly

Installation Notes

Verify left-side placement, bore size, inlet thread pitch, and flare type before installation. Inspect brake shoes, drums, and hydraulic lines during service, and bleed the brake system after replacement to remove air from the circuit. Confirm vehicle-specific fitment by year, make, model, and rear brake configuration before ordering.

Quality Assurance

Centric’s brake hydraulic program is organized as a broad, current catalog of master cylinders, wheel cylinders, hoses, repair kits, and remanufactured boosters, giving technicians a focused source for brake hydraulic replacement parts.
