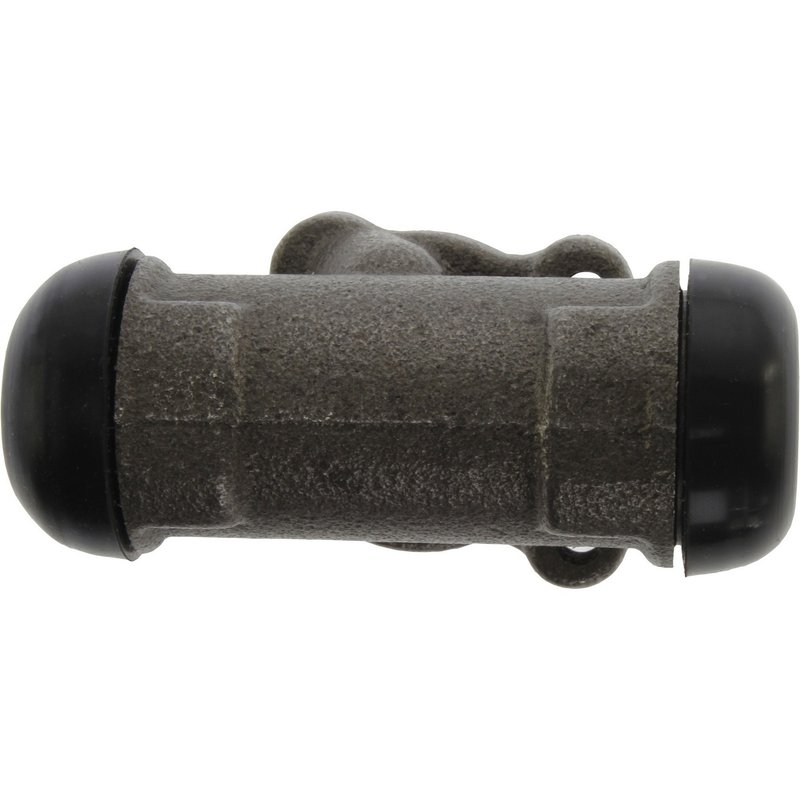

Centric 134.44002 Drum Brake Wheel Cylinder - Rear Right

Reliable Drum Brake Wheel Cylinder for Toyota Camry

The Centric Premium Wheel Cylinders 134.44002 is designed specifically for Toyota Camry models requiring precise brake hydraulics components. This drum brake wheel cylinder ensures consistent braking performance with its durable construction and exact fitment.

• Compatible with Toyota Camry models
• Part number 134.44002 for accurate identification
• Bolted attachment type with 2-bolt mounting method
• Includes bleeder screw with 7mm thread diameter for easy brake bleeding
• Dual flat pistons with 0.75 inch (19.05 mm) bore diameter
• Inverted flare inlet fitting with 10mm thread diameter and 1.0 pitch
• Right side position for proper installation
• Lightweight design at 0.8 lbs (0.36 kgs)

Product Details and Specifications

The Centric Premium Wheel Cylinders 134.44002 features a bolted attachment type secured by two bolts, ensuring a stable and secure fit on the Toyota Camry drum brake assembly. It includes two flat pistons, each with a bore diameter of 0.75 inches (19.05 mm), designed to provide balanced hydraulic pressure for effective braking. The inlet thread diameter measures 10 mm with an inverted flare fitting and a thread pitch of 1.0, compatible with standard brake lines. A bleeder screw is included, featuring a 7 mm thread diameter and 1.0 thread pitch, allowing for straightforward brake fluid bleeding and maintenance. This wheel cylinder is positioned for the right side of the vehicle and weighs approximately 0.8 pounds (0.36 kilograms), contributing minimal additional weight to the brake system.

About Centric Premium Wheel Cylinders

The Centric Premium Wheel Cylinders line focuses on delivering reliable and precise brake hydraulics components tailored for specific vehicle applications. This product line emphasizes quality materials and exact fitment to maintain the integrity of the braking system. The 134.44002 wheel cylinder is part of this line, engineered to meet the demands of Toyota Camry drum brake systems with attention to detail in piston design, bore size, and mounting configuration.

Common Applications and Problem Solving

• Replaces worn or leaking drum brake wheel cylinders on Toyota Camry
• Restores proper hydraulic pressure for consistent brake performance
• Eliminates brake fluid leaks caused by damaged pistons or seals
• Addresses uneven brake application due to faulty wheel cylinders
• Prevents brake drag or sticking by ensuring smooth piston movement

Installation Notes and Tips

When installing the Centric Premium Wheel Cylinders 134.44002, ensure the mounting surface is clean and free of debris. Use the two-bolt mounting method to secure the cylinder firmly in place. Properly connect the inverted flare inlet fitting with the correct thread pitch to avoid leaks. Bleed the brake system thoroughly using the included bleeder screw to remove air and maintain optimal brake responsiveness. Verify the wheel cylinder is installed on the right side of the Toyota Camry as specified.

Quality Assurance and Warranty

Centric Premium Wheel Cylinders are manufactured to meet or exceed OEM specifications, providing reliable performance and durability. While specific warranty details for part number 134.44002 are not provided here, Centric products typically come with a limited warranty covering defects in materials and workmanship. Refer to Centric's official documentation for complete warranty information.
