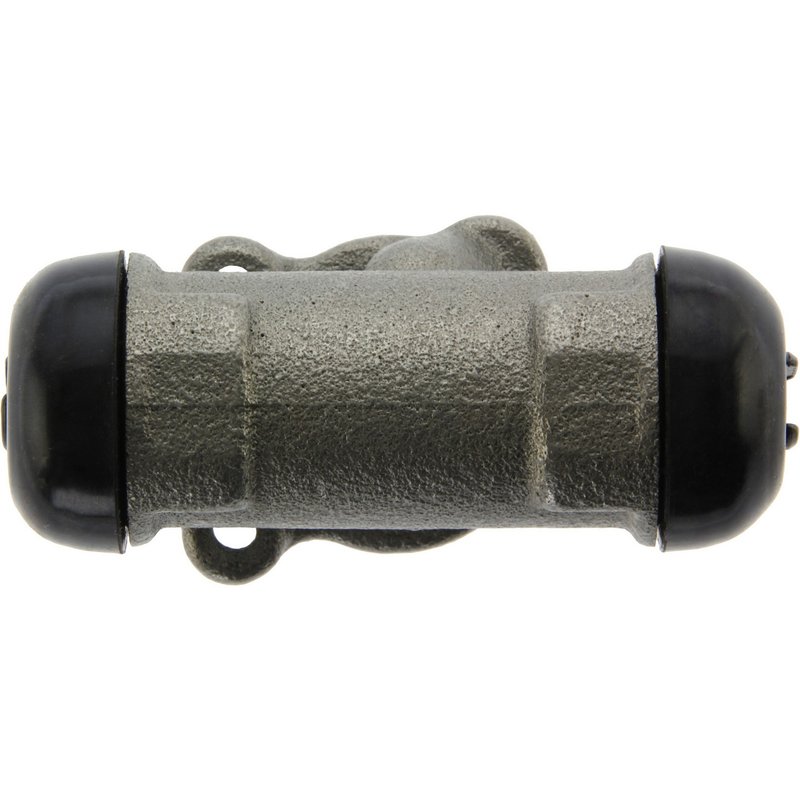

Centric 134.44005 Drum Brake Wheel Cylinder - Rear Left

Overview of Centric Premium Wheel Cylinder 134.44005

The Centric Premium Wheel Cylinder 134.44005 is designed specifically for Toyota Camry and Solara models. This drum brake wheel cylinder features a bolted attachment type and includes essential components for reliable brake hydraulics performance.

• Compatible with Toyota Camry and Solara
• Part number 134.44005 for precise identification
• Bolted attachment with 2 mounting bolts
• Includes bleeder screw with 7mm thread diameter
• Dual slotted pistons for balanced braking
• Inverted flare inlet and port fittings
• Bore diameter approximately 0.813 inches (13/16")
• Lightweight design at 0.9 lbs (0.41 kgs)

Features of Centric Premium Wheel Cylinders

The Centric Premium Wheel Cylinders product line focuses on delivering reliable brake hydraulics components that meet or exceed OEM specifications. This line emphasizes precision manufacturing and quality materials to ensure consistent performance and durability. The 134.44005 wheel cylinder benefits from this approach, providing a direct replacement part engineered for Toyota Camry and Solara drum brake systems.

Technical Details and Specifications

This drum brake wheel cylinder uses a bolted attachment type with two mounting bolts, ensuring secure installation. It features two slotted pistons that help maintain even pressure distribution within the brake system. The bore diameter measures approximately 0.813 inches (13/16"), matching OEM dimensions for proper fit and function. The inlet thread diameter is 10mm with a 1.0 thread pitch, and both the inlet and port fittings use an inverted flare design to maintain a secure hydraulic seal. A bleeder screw is included with a 7mm thread diameter and 1.0 thread pitch, facilitating easy brake fluid bleeding during maintenance.

Common Applications and Problem Solving

• Replacement for leaking or damaged wheel cylinders in Toyota Camry and Solara drum brakes
• Restores proper hydraulic pressure to improve braking response
• Addresses brake fluid leaks caused by worn piston seals
• Eliminates uneven brake shoe wear due to faulty wheel cylinders
• Prevents brake drag and sticking caused by corroded or seized pistons

Installation Notes and Tips

When installing the Centric Premium Wheel Cylinder 134.44005, ensure the mounting surface is clean and free of debris. Use the included bleeder screw to properly bleed the brake system after installation to remove air and maintain hydraulic integrity. Verify that the inverted flare fittings are securely tightened to prevent leaks. It is recommended to replace brake shoes and hardware simultaneously for optimal brake system performance.

Quality Assurance and Warranty

Centric Premium Wheel Cylinders are manufactured to meet strict quality standards, ensuring durability and reliable operation. Each wheel cylinder undergoes rigorous testing to confirm proper bore dimensions and piston function. While specific warranty details are not provided here, Centric products typically come with a limited warranty against defects in materials and workmanship. Consult product documentation or supplier for exact warranty terms.
