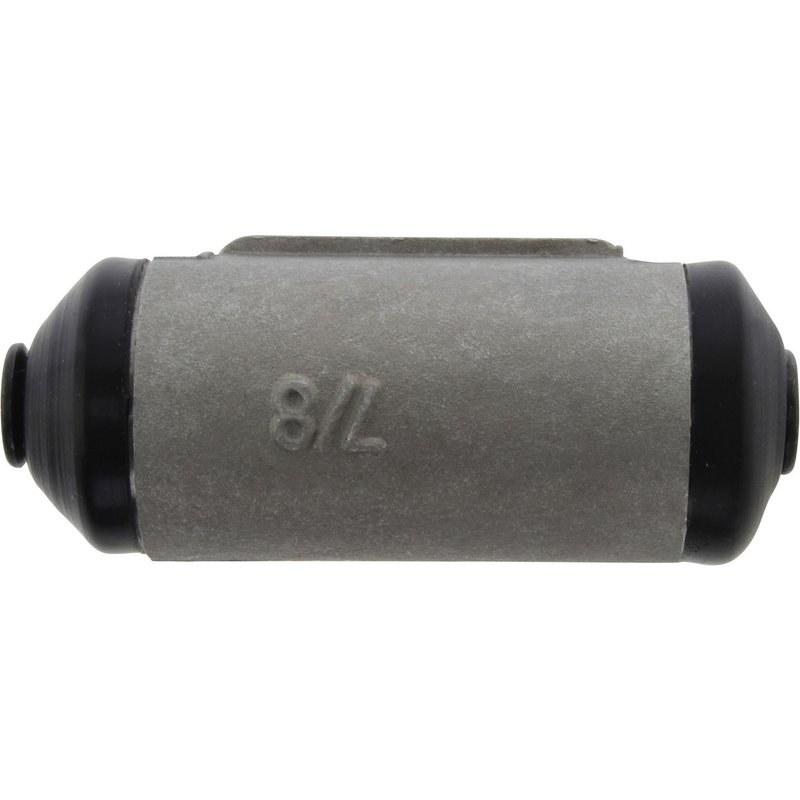

Centric 134.50004 Drum Brake Wheel Cylinder - Rear

Overview of Centric Premium Wheel Cylinders for Kia Sedona

The Centric Premium Wheel Cylinders 134.50004 is designed specifically for Kia Sedona models, providing reliable drum brake hydraulic performance. This bolted wheel cylinder features dual pistons and includes a bleeder screw for efficient brake maintenance.

• Compatible with Kia Sedona drum brake systems
• Bolted attachment type with 2-bolt mounting method
• Includes bleeder screw with 10mm thread diameter and 1.0 thread pitch
• Dual flat pistons for balanced brake pressure
• Bore diameter approximately 7/8 inch (22.225 mm)
• Bubble flare type inlet fitting for secure hydraulic connection
• Lightweight design at 1 lb (0.45 kg)

Detailed Product Description

The Centric Premium Wheel Cylinders line offers high-quality brake hydraulics engineered for precise fit and function. Part number 134.50004 is a drum brake wheel cylinder designed for the Kia Sedona, featuring a bolted attachment type with two mounting holes and bolts for secure installation. The wheel cylinder includes two flat pistons that ensure even pressure distribution within the brake drum system. The bore diameter measures approximately 0.875 inches (22.225 mm), matching OEM specifications for consistent braking performance.

This wheel cylinder also comes equipped with a bleeder screw, facilitating easy brake fluid bleeding and maintenance. The bleeder screw has a 10mm thread diameter and a 1.0 thread pitch, matching standard brake hydraulic fittings. The inlet fitting uses a bubble flare type connection, ensuring a leak-resistant seal with the brake line. Weighing just 1 lb, this component balances durability with ease of handling during installation.

Common Applications and Issues Addressed

• Replacement for leaking or damaged drum brake wheel cylinders on Kia Sedona
• Restores proper hydraulic pressure in rear drum brake systems
• Eliminates brake fluid leaks caused by worn piston seals
• Resolves uneven brake application or dragging brakes
• Prevents brake failure due to corroded or seized wheel cylinders

Installation Notes and Tips

• Ensure compatibility with Kia Sedona drum brake assemblies before installation
• Use the included bleeder screw to properly bleed brake fluid after installation
• Torque mounting bolts to manufacturer specifications for secure fit
• Inspect brake lines and fittings for wear or damage during replacement
• Test brake pedal feel and function before driving

Quality Assurance and Warranty

Centric Premium Wheel Cylinders are manufactured to meet or exceed OEM standards for fit, form, and function. The 134.50004 wheel cylinder undergoes rigorous quality control to ensure reliable brake performance. While specific warranty details are not provided here, Centric products typically come with a limited warranty covering defects in materials and workmanship. Refer to Centric's official documentation for exact warranty terms.
