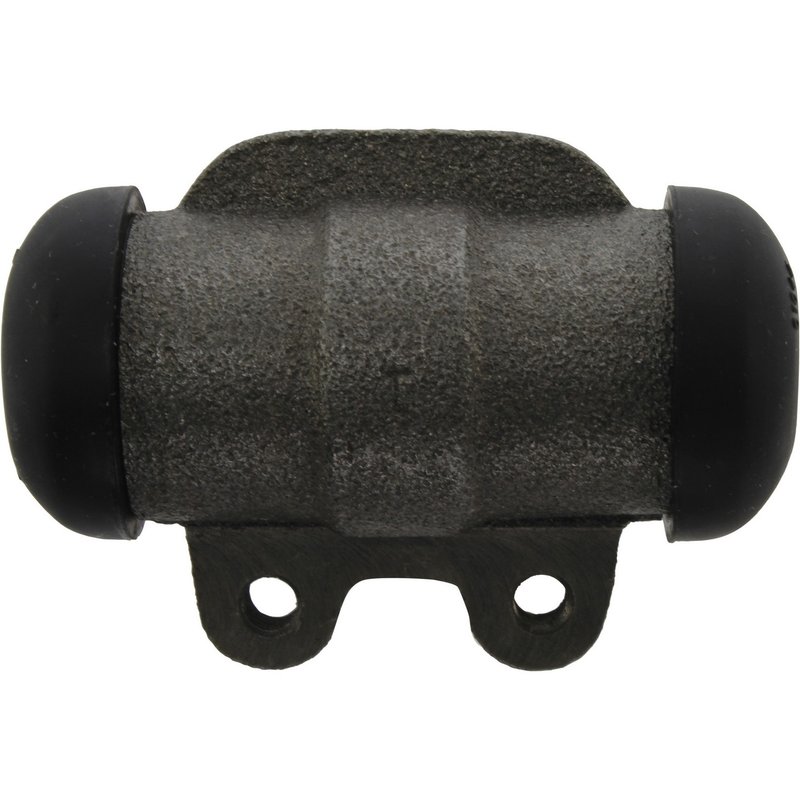

Centric 134.63029 Drum Brake Wheel Cylinder - Rear

Overview of Centric Premium Wheel Cylinders 134.63029

The Centric Premium Wheel Cylinders 134.63029 is designed for reliable drum brake performance on select Chrysler vehicles. Engineered to meet OEM specifications, this wheel cylinder is compatible with Chrysler Imperial, Newport, and New Yorker models, providing precise hydraulic braking control.

• Attachment Type: Bolted for secure mounting
• Mounting Method: 2 bolts with 2 mounting holes
• Bore Diameter: 1.125 inches (28.58 mm)
• Includes bleeder screw for easy brake bleeding
• Dual piston design for balanced brake pressure
• Inlet Thread Diameter: 0.375 inches with 24 pitch inverted flare fitting
• Weight: Approximately 1.5 lbs (0.68 kgs)
• Position: Suitable for both left and right sides

About Centric Premium Wheel Cylinders

The Centric Premium Wheel Cylinders line focuses on delivering high-quality brake hydraulics that meet or exceed OEM standards. This product line emphasizes durability and precise fitment, ensuring consistent braking performance for drum brake systems. The 134.63029 wheel cylinder is part of this line, offering a direct replacement solution for Chrysler Imperial, Newport, and New Yorker models requiring a bolted attachment and dual piston design.

Product Details and Specifications

This drum brake wheel cylinder features a 1 1/8 inch bore diameter, which is critical for maintaining proper hydraulic pressure within the brake system. The dual piston configuration ensures even force distribution to the brake shoes, enhancing braking efficiency. The bolted attachment type with two mounting holes and bolts provides a secure and stable installation. The included bleeder screw simplifies maintenance by allowing air to be purged from the brake lines. The inlet fitting uses an inverted flare design with a 0.375 inch thread diameter and 24 thread pitch, compatible with standard brake lines on the specified Chrysler models.

Common Applications and Problem Solving

• Replacement for leaking or seized wheel cylinders in Chrysler Imperial, Newport, and New Yorker drum brakes
• Restores proper hydraulic pressure to prevent brake drag or uneven braking
• Addresses brake fluid leaks caused by worn seals or corroded pistons
• Improves brake pedal feel and responsiveness
• Prevents brake failure due to compromised wheel cylinder components

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Remove the brake drum and inspect brake shoes for wear. When installing the Centric Premium Wheel Cylinders 134.63029, align the two mounting holes and secure with the provided bolts. Connect the brake line using the inverted flare fitting, ensuring the 0.375 inch thread diameter matches the brake line fitting. Use the included bleeder screw to properly bleed the brake system and remove any trapped air. Verify that the wheel cylinder is positioned correctly for left or right side application.

Quality Assurance and Warranty

Centric Premium Wheel Cylinders are manufactured to meet strict quality standards, ensuring reliable performance and durability. Each unit undergoes rigorous testing to verify bore diameter accuracy, piston movement, and leak resistance. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms related to part number 134.63029.
