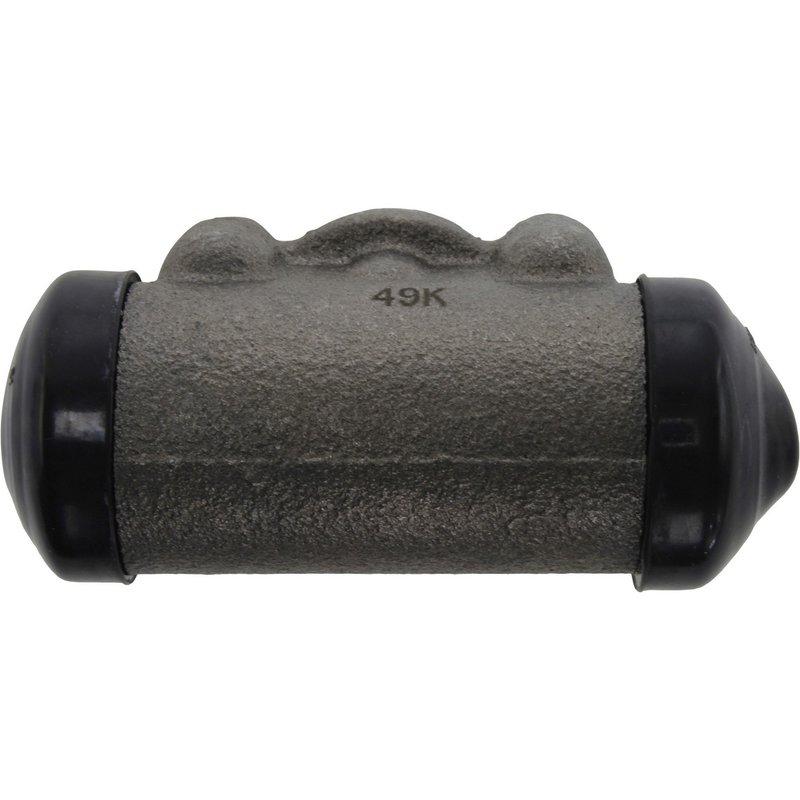

Centric 134.65004 Drum Brake Wheel Cylinder - Rear Left

Overview of Centric Premium Wheel Cylinders 134.65004

The Centric Premium Wheel Cylinders 134.65004 is a reliable drum brake wheel cylinder designed for precise braking performance. Engineered with a bolted attachment type and a dual-piston design, this part ensures consistent hydraulic pressure for safe stopping power.

• Attachment Type: Bolted with 2 mounting bolts
• Inlet Thread Diameter: 0.438 inches
• Bore Diameter: Approximately 0.813 inches (13/16")
• Includes bleeder screw for easy maintenance
• Flare Type: Inverted flare inlet fittings
• Position: Left side installation
• Weight: 1.2 lbs (0.55 kgs)

Detailed Product Features and Specifications

The Centric Premium Wheel Cylinders 134.65004 features a 2-bolt mounting method that provides secure attachment to the brake backing plate. Its bore diameter measures approximately 0.813 inches (13/16"), accommodating standard drum brake pistons. The dual-piston design enhances hydraulic force distribution, improving brake response. The inlet thread diameter of 0.438 inches with a 24 pitch thread ensures compatibility with inverted flare brake lines, facilitating a leak-free connection. This wheel cylinder includes a bleeder screw, allowing for straightforward brake fluid bleeding during installation or maintenance. Designed for left-side placement, it weighs 1.2 pounds, balancing durability and ease of handling.

About Centric Premium Wheel Cylinders

The Centric Premium Wheel Cylinders line focuses on delivering dependable brake hydraulics components that meet or exceed OEM specifications. This product line emphasizes precision manufacturing and quality materials to ensure consistent performance and longevity in drum brake systems. The 134.65004 model exemplifies these standards with its robust construction and attention to fitment details.

Common Applications and Problem Solving

• Replacement for leaking or seized drum brake wheel cylinders
• Restores proper hydraulic pressure in drum brake systems
• Addresses uneven brake wear caused by faulty pistons
• Eliminates brake fluid leaks at the wheel cylinder connection
• Improves brake pedal feel and responsiveness on the left rear wheel

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Remove the brake drum and inspect the brake shoes for wear. When installing the Centric Premium Wheel Cylinders 134.65004, verify the left-side orientation and use the two mounting bolts to secure the cylinder firmly. Connect the brake line using the inverted flare fittings and tighten to manufacturer torque specifications. Bleed the brake system thoroughly using the included bleeder screw to remove air and ensure optimal hydraulic function.

Quality Assurance and Warranty

Centric Premium Wheel Cylinders are manufactured to meet strict quality standards, ensuring reliable performance in brake hydraulic systems. While specific warranty details for part number 134.65004 are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Refer to Centric's official documentation for complete warranty information.
