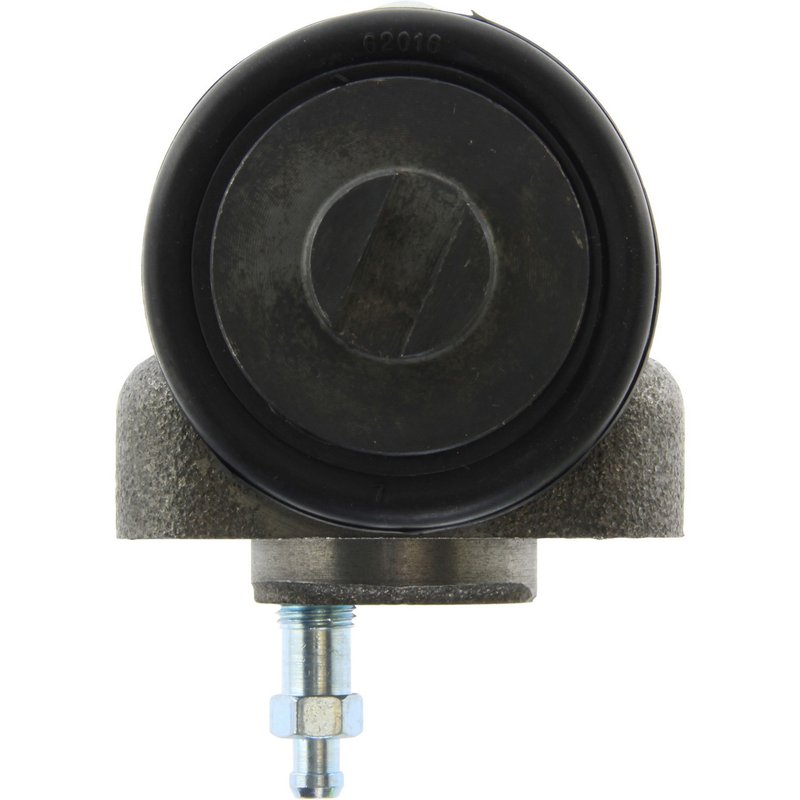

Centric 134.76016 Drum Brake Wheel Cylinder - Rear Right Forward

Reliable Drum Brake Wheel Cylinder for Precise Braking

The Centric Premium Wheel Cylinders 134.76016 offers dependable performance for drum brake systems requiring a bolted attachment. Designed with precision, this wheel cylinder ensures consistent hydraulic pressure and smooth braking response for various vehicle applications.

• Bolted attachment type with 4-bolt mounting method
• Includes bleeder screw for easy brake fluid bleeding
• Dual slotted pistons with a bore diameter of approximately 1.313 inches (33.34 mm)
• Inverted flare inlet fitting with 10 mm thread diameter and 1.0 mm thread pitch
• Equipped with one piston featuring a star wheel adjuster for brake shoe adjustment
• Weighs approximately 2.9 lbs (1.32 kgs) for balanced fitment

Product Details and Specifications

The Centric Premium Wheel Cylinders line is engineered to meet or exceed OEM specifications, providing reliable hydraulic function in drum brake systems. This particular model, part number 134.76016, features a bolted attachment type secured by four bolts, ensuring a stable and secure fit. The wheel cylinder includes two slotted pistons with a bore diameter of 1.313 inches, designed to deliver even pressure to the brake shoes. The inclusion of a bleeder screw simplifies maintenance by allowing efficient removal of air from the brake lines.

The inlet fitting uses an inverted flare design with a 10 mm thread diameter and 1.0 mm thread pitch, compatible with standard brake lines. One piston is equipped with a star wheel adjuster, facilitating precise brake shoe adjustments to maintain optimal braking performance. This wheel cylinder weighs approximately 2.9 pounds, balancing durability and ease of installation.

Common Applications and Problem Solving

• Replaces worn or leaking drum brake wheel cylinders
• Restores proper hydraulic pressure in drum brake systems
• Eliminates brake fluid leaks caused by damaged pistons or seals
• Improves brake shoe engagement and reduces uneven wear
• Addresses brake drag or poor pedal feel due to faulty wheel cylinders

Installation Notes and Tips

Installation requires a secure bolted mounting using four bolts to ensure proper alignment and function. The included bleeder screw should be used during installation to purge air from the brake system, preventing spongy brake pedal feel. Verify compatibility with your vehicle’s brake line fittings, as the inlet thread diameter is 10 mm with an inverted flare design. Adjust the star wheel on the piston as needed to achieve correct brake shoe clearance.

Quality Assurance and Warranty

Centric Premium Wheel Cylinders are manufactured to meet stringent quality standards, ensuring reliable performance and durability. While specific warranty details for part number 134.76016 are not provided here, Centric typically offers coverage against defects in materials and workmanship. For exact warranty terms, consult the product documentation or manufacturer.
