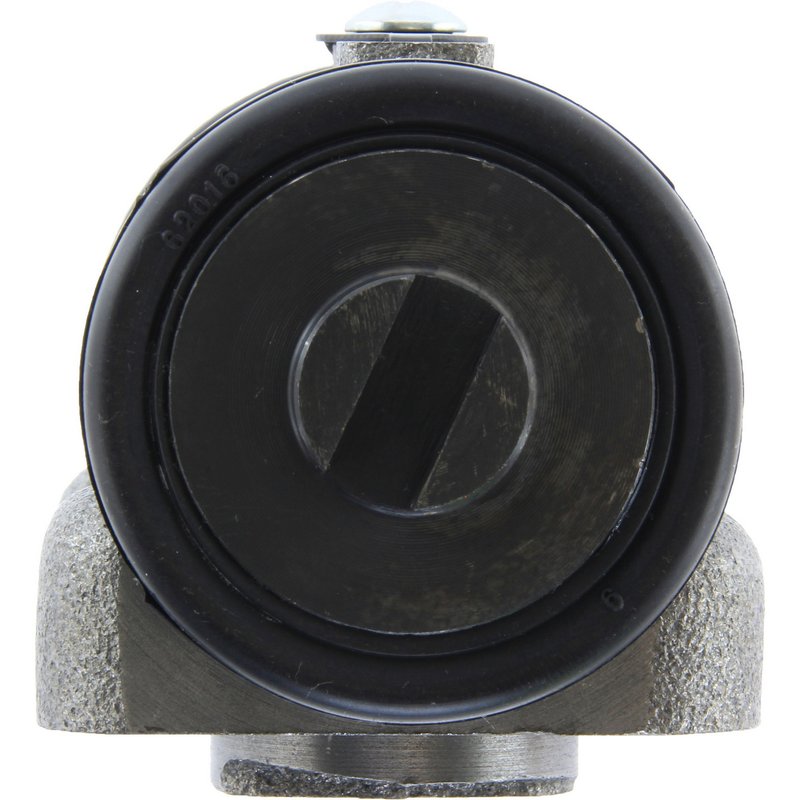

Centric 134.76017 Drum Brake Wheel Cylinder - Rear Right Rearward

Overview of Centric Premium Wheel Cylinders 134.76017

The Centric Premium Wheel Cylinders 134.76017 is a reliable drum brake wheel cylinder designed for precise brake hydraulics performance. Engineered with a bolted attachment type and a 4-bolt mounting method, this part ensures secure installation and consistent operation in compatible vehicles.

• Bolted attachment type with 4 mounting bolts for secure fitment
• Dual slotted pistons with a bore diameter of 1.313 inches (33.34 mm)
• Inverted flare inlet fitting with a 10 mm thread diameter and 1.000 mm thread pitch
• Includes one piston with a star wheel adjuster for brake adjustment
• Weight approximately 2.9 lbs (1.32 kgs) for balanced performance

Detailed Product Features and Specifications

This Centric Premium Wheel Cylinders model 134.76017 features two slotted pistons housed within a bore diameter of 1 5/16 inches, providing effective hydraulic pressure for drum brake systems. The bolted attachment type with four mounting holes ensures a stable and secure connection to the brake backing plate. The inlet thread diameter measures 10 mm with an inverted flare fitting, designed to maintain a leak-free hydraulic connection. Notably, the wheel cylinder includes one piston equipped with a star wheel adjuster, allowing for precise brake shoe adjustment without removing the cylinder.

About Centric Premium Wheel Cylinders Product Line

The Centric Premium Wheel Cylinders line focuses on delivering high-quality brake hydraulics components that meet or exceed OEM specifications. This product line emphasizes durability and fitment accuracy, making it suitable for a range of vehicle makes and models requiring drum brake wheel cylinders. The 134.76017 part exemplifies this commitment by combining robust materials and precise engineering to support safe braking performance.

Common Applications and Problem Solving

• Replacement for leaking or worn drum brake wheel cylinders
• Restores proper hydraulic pressure in drum brake systems
• Addresses uneven brake shoe wear caused by faulty pistons
• Eliminates brake fluid leaks at the wheel cylinder connection
• Improves brake pedal feel and responsiveness in compatible vehicles

Installation Notes and Tips

When installing the Centric Premium Wheel Cylinders 134.76017, ensure the mounting surface is clean and free of debris to achieve a proper seal. Use the four mounting bolts to secure the cylinder firmly to the backing plate. The inverted flare inlet fitting requires careful threading to avoid cross-threading and ensure a leak-free connection. Adjust the star wheel on the piston to set the correct brake shoe clearance after installation. Bleeder screws are not included, so use the existing hardware or source separately if needed.

Quality Assurance and Warranty

Centric Premium Wheel Cylinders are manufactured to meet stringent quality standards, ensuring reliable performance and durability. While specific warranty details for part number 134.76017 are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Verify warranty terms with the product documentation or supplier for complete information.
