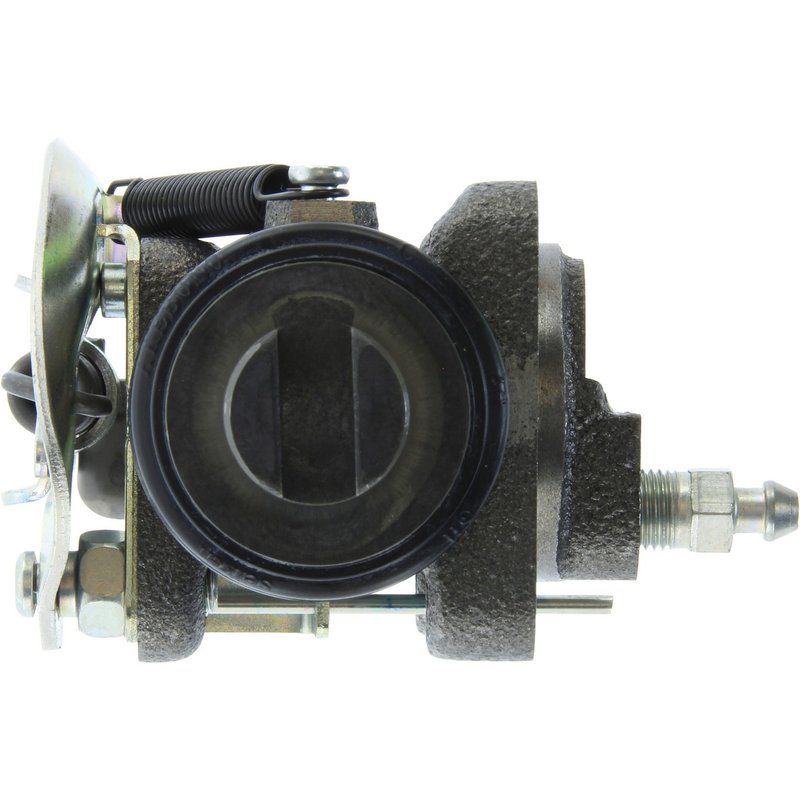

Centric 134.76025 Drum Brake Wheel Cylinder - Rear Right Forward

Overview of Centric Premium Wheel Cylinders 134.76025

The Centric Premium Wheel Cylinders 134.76025 is a reliable drum brake wheel cylinder designed for precise brake hydraulics performance. Engineered with a bolted attachment type and a 1-inch bore diameter, this part ensures consistent braking pressure for vehicles requiring dependable drum brake components.

• Bolted attachment type with 4-bolt mounting method
• Includes bleeder screw for easy brake fluid maintenance
• Dual slotted pistons with a 1-inch (25.4 mm) bore diameter
• Inverted flare inlet fitting with 10 mm thread diameter and 1 mm thread pitch
• Weight approximately 2.3 lbs (1.05 kgs)
• One piston features a star wheel and adjuster assembly for precise brake adjustment

Detailed Product Description

The Centric Premium Wheel Cylinders line focuses on delivering high-quality brake hydraulics components that meet or exceed OEM specifications. The 134.76025 wheel cylinder features a robust bolted attachment system with four mounting holes, ensuring secure installation and stable operation. Its dual slotted pistons provide balanced pressure distribution within the drum brake system, enhancing braking efficiency and pedal feel.

This wheel cylinder is equipped with an inverted flare inlet fitting, compatible with standard brake lines featuring a 10 mm thread diameter and 1 mm thread pitch. The inclusion of a bleeder screw simplifies brake bleeding procedures, allowing for effective removal of air from the brake system. The star wheel and adjuster assembly on one piston enable fine-tuning of brake shoe clearance, which is critical for maintaining optimal brake performance over time.

Common Applications and Problem Solving

• Replaces worn or leaking drum brake wheel cylinders
• Addresses brake fluid leaks causing reduced braking pressure
• Corrects uneven brake shoe wear due to piston malfunction
• Improves brake pedal feel and responsiveness in drum brake systems
• Restores proper brake adjustment with integrated star wheel assembly

Installation Notes and Tips

Installation requires a secure bolted mounting using the four provided mounting holes. Ensure the brake line fittings match the inverted flare type with a 10 mm thread diameter and 1 mm pitch for proper sealing. Use the included bleeder screw to purge air from the brake system after installation. Adjust the star wheel assembly to achieve correct brake shoe clearance and prevent premature wear.

Quality Assurance and Warranty

Centric Premium Wheel Cylinders are manufactured to meet stringent quality standards, ensuring durability and reliable performance in brake hydraulic systems. The 134.76025 part undergoes rigorous testing to comply with OEM specifications. Warranty details are provided by Centric and typically cover defects in materials and workmanship under normal use.
