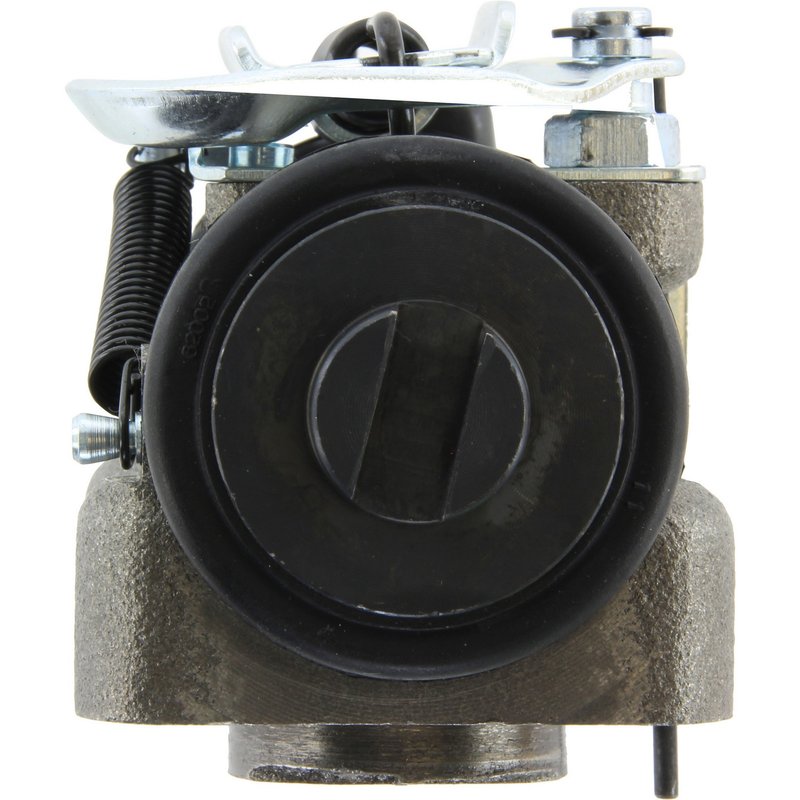

Centric 134.76032 Drum Brake Wheel Cylinder - Rear Left Forward or Rear Left Rearward

Overview of Centric Premium Wheel Cylinders 134.76032

The Centric Premium Wheel Cylinders 134.76032 is a reliable drum brake wheel cylinder designed for precise hydraulic brake control. Engineered with a bolted attachment type and a 4-bolt mounting method, this component ensures secure installation and consistent performance in compatible vehicles such as Ford F-150 and Chevrolet Silverado models.

• Bolted attachment type with 4 mounting bolts for secure fitment
• Dual slotted pistons with a bore diameter of 1.188 inches (30.16 mm)
• Inverted flare inlet fitting with 10 mm thread diameter and 1.0 mm thread pitch
• Includes one piston with star wheel and adjuster assembly for brake adjustment
• Weight approximately 2.87 lbs (1.3 kgs) for balanced handling

Detailed Product Features and Specifications

This Centric Premium Wheel Cylinders part number 134.76032 features a dual-piston design, both pistons slotted for optimal hydraulic pressure distribution. The bore diameter measures precisely 1 3/16 inches (30.163 mm), matching OEM specifications for consistent brake response. The inlet thread diameter is 10 mm with an inverted flare fitting and a 1.0 mm thread pitch, ensuring compatibility with standard brake lines. The mounting method uses four bolts, providing a stable and secure attachment to the backing plate. Notably, this wheel cylinder includes one piston equipped with a star wheel and adjuster assembly, allowing for fine-tuning of brake shoe clearance without additional components.

Application and Common Repair Uses

• Replacement for worn or leaking drum brake wheel cylinders on Ford F-150 and Chevrolet Silverado trucks
• Restores proper hydraulic pressure to rear drum brakes for improved stopping power
• Addresses brake fluid leaks caused by damaged or corroded pistons
• Corrects uneven brake shoe wear due to malfunctioning wheel cylinders
• Prevents brake drag and noise associated with faulty wheel cylinder operation

Installation Notes and Tips

When installing the Centric Premium Wheel Cylinders 134.76032, ensure the mounting surface is clean and free of debris to achieve a proper seal. Use the four-bolt mounting method to secure the cylinder firmly to the backing plate. Verify that the inverted flare fitting matches the brake line connection to avoid leaks. Since this wheel cylinder does not include a bleeder screw, use the existing bleeder on the brake assembly for bleeding air from the system. Adjust the star wheel assembly on the piston to set the correct brake shoe clearance after installation.

Quality Assurance and Warranty Information

Centric Premium Wheel Cylinders are manufactured to meet or exceed OEM standards for durability and performance. Each unit undergoes rigorous quality control to ensure precise bore dimensions and reliable hydraulic sealing. While specific warranty details for part number 134.76032 are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Consult product documentation or authorized distributors for exact warranty terms.
