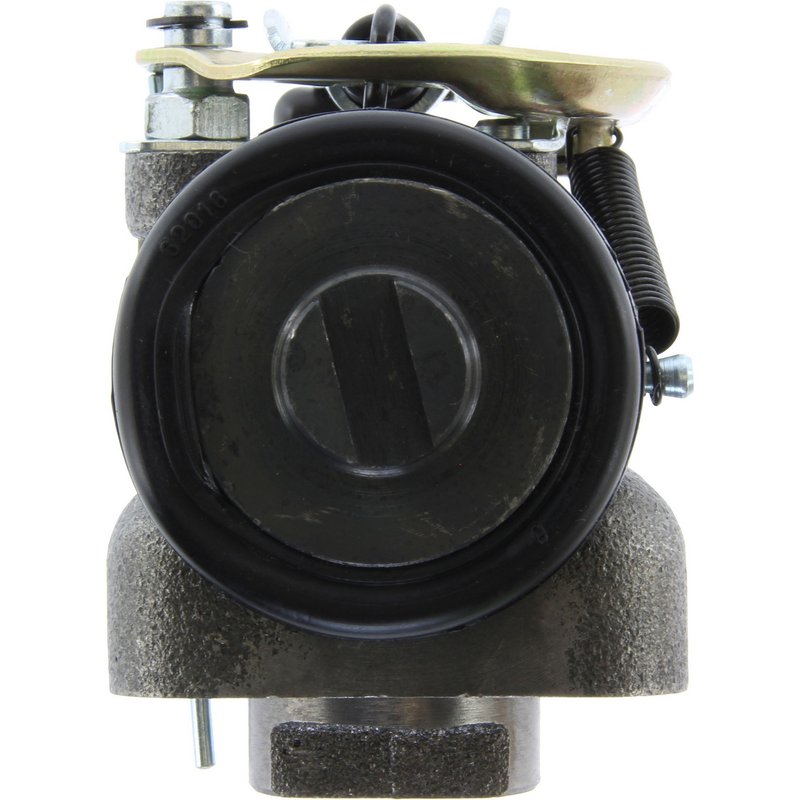

Centric 134.76037 Drum Brake Wheel Cylinder - Rear Right Rearward

Overview of Centric Premium Wheel Cylinders 134.76037

The Centric Premium Wheel Cylinders 134.76037 is a precision-engineered drum brake wheel cylinder designed for reliable brake hydraulics performance. This component is essential for maintaining proper brake function in compatible vehicles, ensuring smooth and consistent braking response.

• Brand: Centric
• Brand Line: Centric Premium Wheel Cylinders
• Part Number: 134.76037
• Attachment Type: Bolted
• Mounting Method: 4 bolts with 4 mounting holes
• Bore Diameter: 1.313 inches (33.34 mm)
• Piston Quantity: 2 slotted pistons
• Inlet Thread Diameter: 10.000 mm with 1.000 mm thread pitch
• Flare Type: Inverted flare
• Weight: Approximately 2.0 lbs (0.91 kgs)
• Bleeder Screw: Not included

Details on Centric Premium Wheel Cylinders Product Line

The Centric Premium Wheel Cylinders line focuses on delivering high-quality brake hydraulics components that meet or exceed OEM specifications. This product line emphasizes durability and precise fitment, making it suitable for a range of drum brake applications. The 134.76037 wheel cylinder features a bolted attachment type and includes a star wheel and adjuster assembly on one piston, which helps maintain proper brake shoe adjustment over time.

Technical Description and Specifications

This drum brake wheel cylinder features a bore diameter of 1.313 inches (33.34 mm), accommodating two slotted pistons designed for even pressure distribution. The bolted mounting method uses four bolts for secure installation, ensuring stability under braking forces. The inlet fitting has a 10 mm thread diameter with a 1.000 mm pitch and an inverted flare type, compatible with standard brake lines. The absence of a bleeder screw means bleeding must be performed through the brake line connection. The included star wheel and adjuster assembly on one piston assist in maintaining brake shoe clearance, which is critical for consistent braking performance.

Common Applications and Problem Solving

• Replaces worn or leaking drum brake wheel cylinders
• Restores proper hydraulic pressure in drum brake systems
• Addresses brake drag caused by stuck pistons
• Eliminates brake fluid leaks at the wheel cylinder
• Improves brake shoe adjustment with integrated star wheel assembly

Installation Notes and Tips

Installation requires removal of the drum brake assembly and careful disconnection of the brake line at the inverted flare fitting. Ensure the mounting surface is clean before bolting the wheel cylinder in place using the four mounting holes. Since this part does not include a bleeder screw, bleeding the brake system should be done through the brake line connection after installation. Verify piston movement and star wheel adjuster function before reassembling the brake drum.

Quality Assurance and Warranty

Centric Premium Wheel Cylinders are manufactured to meet strict quality standards, ensuring reliable performance and durability. The 134.76037 part undergoes rigorous testing to comply with OEM specifications. Warranty coverage details should be confirmed with the distributor or manufacturer, as they may vary by region.
