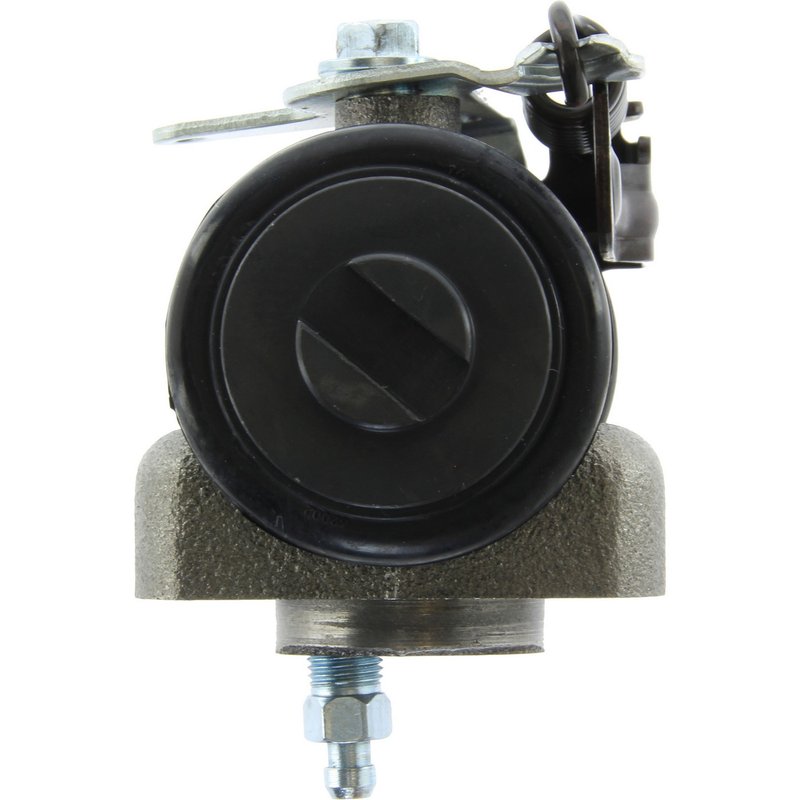

Centric 134.76048 Drum Brake Wheel Cylinder - Rear Right Forward

Overview of Centric Premium Wheel Cylinders 134.76048

The Centric Premium Wheel Cylinders 134.76048 is a reliable drum brake wheel cylinder designed for precise braking performance. Engineered with a bolted attachment type and a 4-bolt mounting method, this component ensures secure installation and consistent operation in compatible vehicles.

• Bolted attachment type with 4 mounting bolts for secure fitment
• Includes bleeder screw for easy brake fluid maintenance
• Dual slotted pistons with a bore diameter of 1.188 inches (30.16 mm)
• Inverted flare inlet fitting with 10 mm thread diameter and 1.0 mm pitch
• Weight approximately 2.85 lbs (1.3 kgs) for balanced performance
• One piston features a star wheel and adjuster assembly for precise brake adjustment

Detailed Product Features and Specifications

This Centric Premium Wheel Cylinders model 134.76048 is built with two slotted pistons, each designed to provide smooth and reliable brake actuation. The bore diameter measures 1 3/16 inches, ensuring compatibility with specific drum brake systems. The mounting method uses four bolts, providing a stable and secure connection to the brake backing plate. The inclusion of a bleeder screw simplifies the process of removing air from the brake lines, which is essential for maintaining optimal brake performance.

The inlet fitting features an inverted flare design with a 10 mm thread diameter and a 1.0 mm thread pitch, compatible with standard brake lines. One piston is equipped with a star wheel and adjuster assembly, allowing for fine-tuning of brake shoe clearance, which is critical for maintaining proper brake function and reducing wear.

About Centric Premium Wheel Cylinders Product Line

The Centric Premium Wheel Cylinders line focuses on delivering high-quality brake hydraulics components that meet or exceed OEM specifications. This product line emphasizes durability and precise fitment, making it suitable for professional repairs and maintenance. The 134.76048 wheel cylinder is part of this line, offering reliable performance and ease of installation for vehicles requiring drum brake hydraulic components.

Common Applications and Issues Addressed

• Replacement for leaking or damaged drum brake wheel cylinders
• Restores proper brake fluid pressure and braking response
• Eliminates brake drag caused by stuck pistons
• Corrects uneven brake shoe wear due to faulty wheel cylinders
• Improves brake pedal feel and safety in drum brake systems

Installation Notes and Tips

When installing the Centric Premium Wheel Cylinders 134.76048, ensure the mounting surface is clean and free of debris. Use the four mounting bolts to secure the cylinder firmly to the backing plate. Properly connect the brake line using the inverted flare fitting and tighten the bleeder screw to allow for air removal during brake bleeding. Adjust the star wheel assembly on the piston to achieve correct brake shoe clearance before finalizing installation.

Quality Assurance and Warranty

Centric Premium Wheel Cylinders are manufactured to meet strict quality standards, ensuring reliable performance and durability. While specific warranty details for part number 134.76048 should be confirmed with the supplier, Centric typically offers coverage against defects in materials and workmanship to support professional repair confidence.
