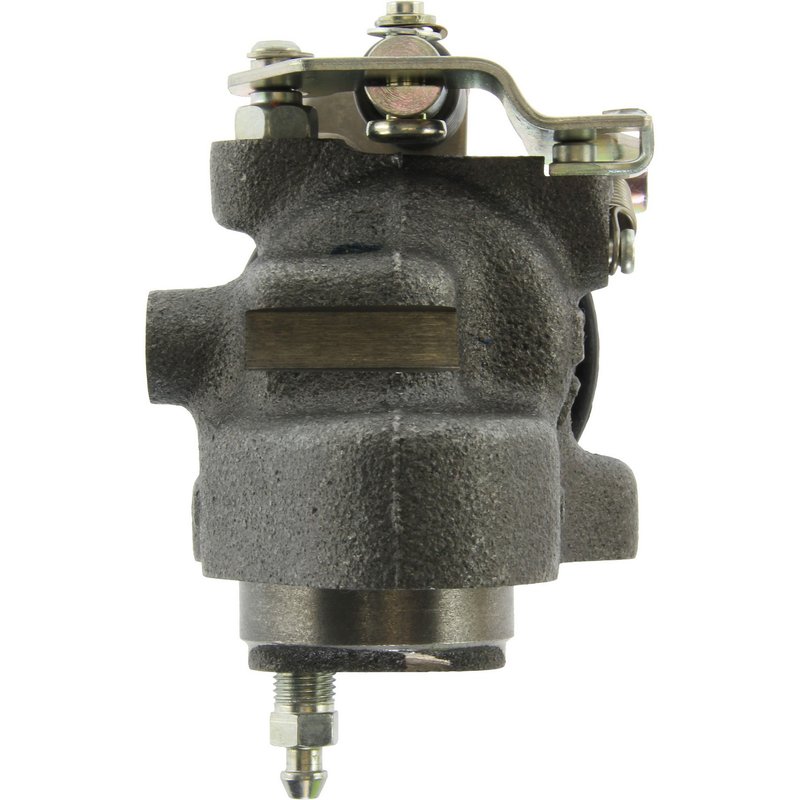

Centric 134.76053 Drum Brake Wheel Cylinder - Front Right

Overview of Centric Premium Wheel Cylinders 134.76053

The Centric Premium Wheel Cylinders 134.76053 is a reliable drum brake wheel cylinder designed for precise brake hydraulics performance. Engineered with a bolted attachment type and a 3-bolt mounting method, this component ensures secure installation and consistent braking response for various vehicle applications.

• Bolted attachment type with 3 mounting bolts for secure fitment
• Single slotted piston with star wheel and adjuster assembly
• 1.5 inch (38.1 mm) bore diameter for effective hydraulic pressure
• Includes bleeder screw for easy brake fluid maintenance
• Inverted flare inlet fitting with 10 mm thread diameter and 1.0 mm pitch
• Weight approximately 4.9 lbs (2.23 kgs) for balanced performance

Detailed Product Description

The Centric Premium Wheel Cylinders line focuses on delivering dependable brake hydraulics components that meet or exceed OEM specifications. This particular wheel cylinder, part number 134.76053, features a single slotted piston design combined with a star wheel and adjuster assembly to maintain proper brake shoe clearance. The 1.5 inch bore diameter (38.1 mm) provides consistent hydraulic pressure to the drum brakes, ensuring smooth and reliable stopping power. The bolted attachment type with three mounting holes allows for a secure and stable installation, reducing the risk of leaks or component movement under braking stress.

Equipped with an inverted flare inlet fitting and a 10 mm thread diameter, this wheel cylinder is compatible with standard brake lines that use inverted flare connections. The included bleeder screw facilitates straightforward brake bleeding procedures, helping maintain optimal brake fluid condition and system performance.

Common Applications and Problem Solving

• Replacement for worn or leaking drum brake wheel cylinders
• Restores proper hydraulic pressure in drum brake systems
• Eliminates brake fluid leaks caused by damaged pistons or seals
• Corrects uneven brake shoe wear due to faulty wheel cylinders
• Improves brake pedal feel and responsiveness in drum brake setups

Installation Notes and Tips

When installing the Centric Premium Wheel Cylinders 134.76053, ensure the mounting surface is clean and free of debris to achieve a proper seal. Use the three mounting bolts to secure the cylinder firmly in place. Connect the brake line using the inverted flare fitting and verify the 10 mm thread diameter matches the vehicle’s brake line specifications. After installation, bleed the brake system thoroughly using the included bleeder screw to remove air and maintain hydraulic integrity.

Quality Assurance and Warranty

Centric Premium Wheel Cylinders are manufactured to meet strict quality standards, ensuring durability and reliable performance in brake hydraulic systems. While specific warranty details for part number 134.76053 are not provided here, Centric typically offers coverage against defects in materials and workmanship. Refer to Centric’s official documentation for exact warranty terms.
