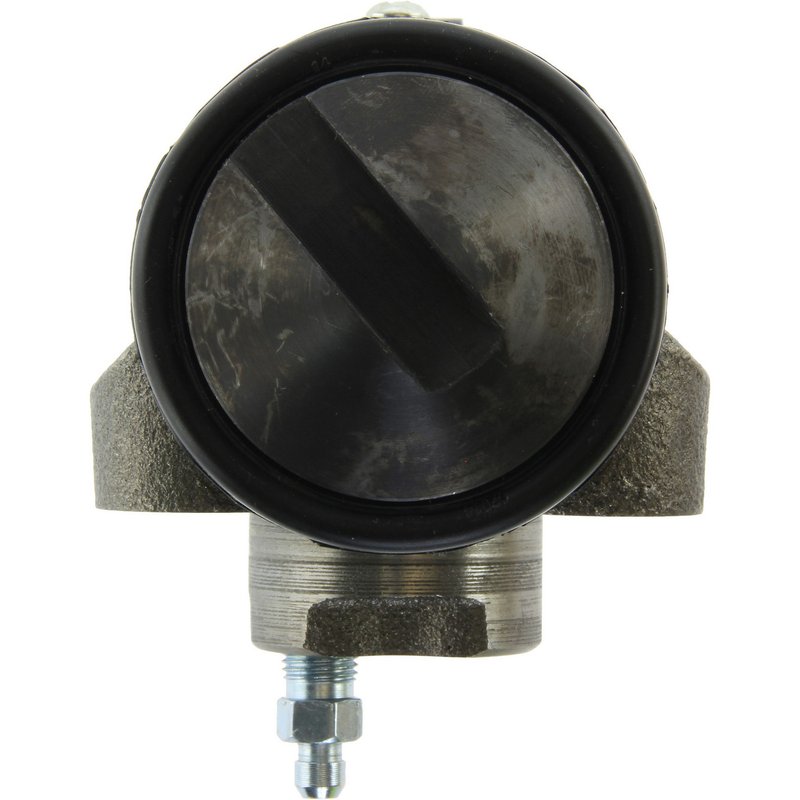

Centric 134.76106 Drum Brake Wheel Cylinder - Rear Right Forward

Reliable Drum Brake Wheel Cylinder for Precise Braking

The Centric Premium Wheel Cylinders 134.76106 offers dependable performance for drum brake systems requiring a bolted attachment. Designed with precision, this wheel cylinder ensures consistent hydraulic pressure for safe and effective braking on compatible vehicles.

• Bolted attachment type with 4 mounting bolts for secure fitment
• Dual slotted pistons with one featuring a star wheel and the other a cone-shaped face
• 1.5 inch (38.1 mm) bore diameter for balanced hydraulic force
• Includes bleeder screw for easy brake fluid bleeding and maintenance
• Inverted flare inlet fitting with 10 mm thread diameter and 1 mm thread pitch
• Weighs approximately 4.5 lbs (2.05 kgs) for durability and stability

About Centric Premium Wheel Cylinders

The Centric Premium Wheel Cylinders line focuses on delivering high-quality brake hydraulics engineered to meet or exceed OEM specifications. This product line emphasizes precise bore dimensions, reliable piston design, and secure mounting methods to ensure consistent braking performance. The 134.76106 wheel cylinder exemplifies these standards with its dual slotted pistons and robust bolted attachment, making it suitable for various drum brake applications.

Technical Details and Specifications

This drum brake wheel cylinder features a 1.5 inch (38.1 mm) bore diameter, which is critical for maintaining proper hydraulic pressure within the brake system. The unit includes two slotted pistons; one piston is equipped with a star wheel for fine adjustment, while the other has a cone-shaped face to optimize brake shoe contact. The mounting method uses four bolts, ensuring a secure and stable installation. The inlet fitting uses an inverted flare design with a 10 mm thread diameter and 1 mm thread pitch, compatible with standard brake lines. Additionally, the included bleeder screw facilitates straightforward brake fluid bleeding during maintenance.

Common Applications and Problem Solving

• Replaces worn or leaking drum brake wheel cylinders to restore braking efficiency
• Addresses brake drag caused by sticking pistons or improper bore size
• Solves brake fluid leaks at the wheel cylinder connection points
• Corrects uneven brake shoe wear due to faulty piston movement
• Improves brake pedal feel by maintaining proper hydraulic pressure

Installation Notes and Tips

When installing the Centric Premium Wheel Cylinders 134.76106, ensure the mounting surface is clean and free of debris to achieve a proper seal. Use the four-bolt mounting method to secure the cylinder firmly. Verify that the inverted flare inlet fitting matches the brake line specifications to prevent leaks. After installation, bleed the brake system thoroughly using the included bleeder screw to remove air and ensure optimal brake performance.

Quality Assurance and Warranty

Centric Premium Wheel Cylinders are manufactured to meet stringent quality standards, ensuring durability and reliable operation. While specific warranty details for part number 134.76106 are not provided, Centric products typically come with a limited warranty against defects in materials and workmanship. Refer to Centric's official documentation for exact warranty terms.
