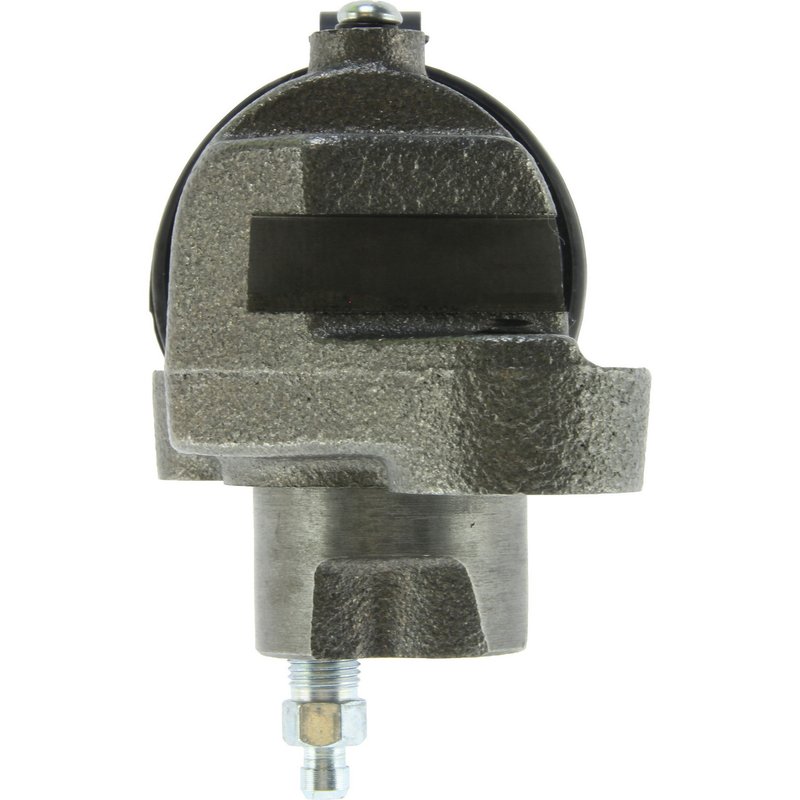

Centric 134.76124 Drum Brake Wheel Cylinder - Front Right

Reliable Drum Brake Wheel Cylinder for Precise Braking

The Centric Premium Wheel Cylinders 134.76124 offers dependable performance for drum brake systems requiring a bolted attachment. Designed with a single slotted piston and star wheel adjuster, this wheel cylinder ensures consistent brake actuation for vehicles equipped with compatible drum brakes.

• Bolted attachment type with 3-bolt mounting method
• Includes bleeder screw for easy brake fluid maintenance
• Single piston design with slotted piston type and star wheel adjuster
• Bore diameter approximately 1.438 inches (36.51 mm)
• Inlet thread diameter of 10 mm with inverted flare fitting
• Mounting hole quantity: 3 for secure installation
• Weight: 3.2 lbs (1.45 kgs)

About Centric Premium Wheel Cylinders Product Line

The Centric Premium Wheel Cylinders line focuses on delivering precise hydraulic brake components engineered for durability and consistent performance. This product line includes wheel cylinders designed to meet or exceed OEM specifications, featuring quality materials and exact bore dimensions to ensure proper fit and function. The 134.76124 part is a representative example, offering a reliable single piston design with a star wheel adjuster for fine brake adjustment.

Technical Details and Specifications

This drum brake wheel cylinder features a bolted attachment type secured by three bolts, providing a stable mounting method. The bore diameter measures approximately 1.438 inches (36.51 mm), matching OEM dimensions for compatible vehicles. The inlet thread diameter is 10 mm with a 1.0 mm thread pitch, designed for an inverted flare fitting to maintain a secure hydraulic connection. The included bleeder screw facilitates brake fluid bleeding during maintenance. The single slotted piston with star wheel adjuster allows for precise brake shoe adjustment, enhancing braking response.

Common Applications and Problem Solving

• Replacement for leaking or seized drum brake wheel cylinders
• Restores proper hydraulic pressure in drum brake systems
• Addresses uneven brake shoe wear caused by faulty wheel cylinders
• Improves brake pedal feel and responsiveness
• Prevents brake fluid leaks that can compromise braking safety

Installation Notes and Tips

Ensure the mounting surface is clean and free of debris before installation. Use the three-bolt mounting method to secure the wheel cylinder firmly. Verify the inverted flare fitting is properly tightened to prevent hydraulic leaks. Bleed the brake system thoroughly using the included bleeder screw to remove air and maintain optimal brake performance. Confirm the star wheel adjuster is set correctly to achieve even brake shoe contact.

Quality Assurance and Warranty

Centric Premium Wheel Cylinders are manufactured to meet strict quality standards, ensuring reliable operation in drum brake systems. While specific warranty details for part number 134.76124 are not provided here, Centric products typically come with a limited warranty against defects in materials and workmanship. Refer to Centric's official documentation for complete warranty information.
