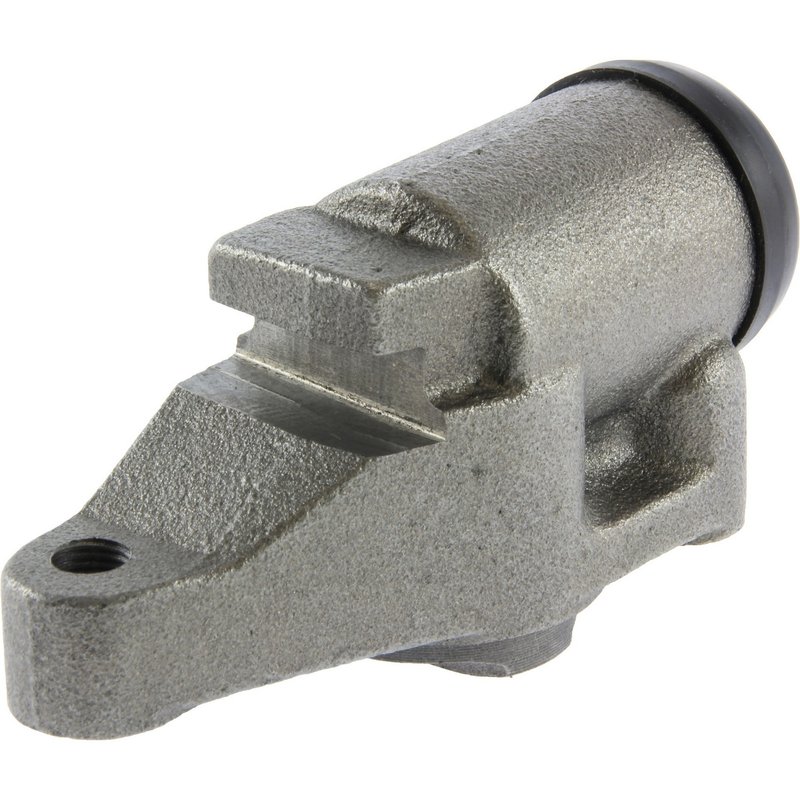

Centric 134.80006 Drum Brake Wheel Cylinder - Front Left

Reliable Drum Brake Wheel Cylinder for Precise Braking

The Centric Premium Wheel Cylinders 134.80006 offers dependable performance for drum brake systems requiring a bolted attachment. Designed with a 1.25-inch bore diameter and a single slotted piston, this wheel cylinder ensures consistent hydraulic pressure for smooth braking response.

• Bolted attachment type with 3-bolt mounting method
• 1.250 inch (31.75 mm) bore diameter for accurate hydraulic function
• Single slotted piston design for effective brake fluid control
• Inlet thread diameter of 0.438 inches with bubble flare type fitting
• Weight approximately 2.2 lbs (1.0 kg) for balanced installation

Centric Premium Wheel Cylinders Product Line Overview

The Centric Premium Wheel Cylinders line focuses on delivering precise fit and reliable hydraulic performance for drum brake applications. This product line emphasizes quality materials and engineering to maintain consistent brake pressure and durability. The 134.80006 part number is engineered to meet or exceed OEM specifications, providing a direct replacement option for compatible vehicle models requiring a 3-bolt mounting wheel cylinder.

Technical Details and Specifications

This drum brake wheel cylinder features a bolted attachment type secured by three bolts, ensuring a stable and secure fit within the brake assembly. The bore diameter measures 1.250 inches (31.75 mm), which is critical for maintaining proper hydraulic pressure and piston movement. The single piston is slotted to facilitate fluid flow and pressure distribution. The inlet thread diameter is 0.438 inches with a 20 pitch thread, paired with a bubble flare type fitting to ensure a secure hydraulic line connection. Note that this wheel cylinder does not include a bleeder screw.

Common Applications and Problem Resolution

• Replacement for leaking or seized drum brake wheel cylinders
• Restores proper hydraulic pressure in drum brake systems
• Addresses uneven brake application or pedal softness
• Prevents brake fluid leaks at the wheel cylinder connection
• Improves brake system reliability on compatible vehicle models

Installation Notes and Tips

Installation requires a 3-bolt mounting method with bolted attachment. Ensure the mounting holes align correctly with the brake backing plate. Use compatible brake fluid and verify the inlet thread and flare type match the vehicle’s hydraulic line fittings. Since this part does not include a bleeder screw, use the existing bleeder or install one separately if needed. Properly bleed the brake system after installation to remove air and ensure optimal braking performance.

Quality Assurance and Warranty

Centric Premium Wheel Cylinders are manufactured to meet stringent quality standards, ensuring durability and consistent hydraulic function. The 134.80006 wheel cylinder is engineered to OEM specifications for reliable fit and performance. Warranty coverage details should be confirmed with the product supplier or manufacturer documentation.
