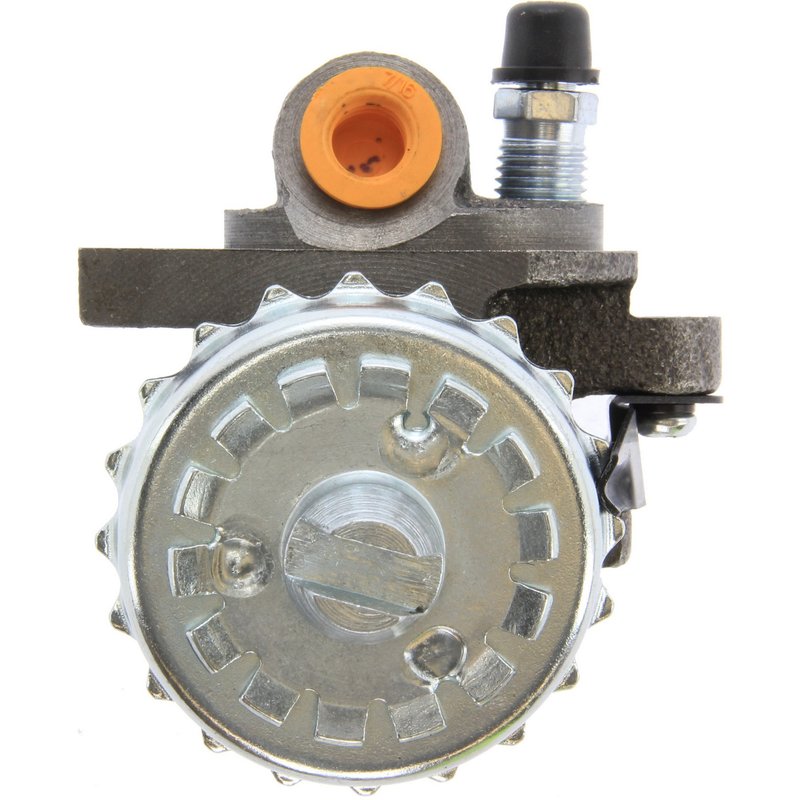

Centric 134.82024 Drum Brake Wheel Cylinder - Front Right

Reliable Drum Brake Wheel Cylinder for Precise Braking

The Centric Premium Wheel Cylinders 134.82024 offers dependable performance for drum brake systems requiring precise hydraulic control. Designed with quality materials and engineered for durability, this wheel cylinder supports consistent braking response on compatible vehicles.

• Bolted attachment type with 2-bolt mounting method for secure installation
• Dual slotted pistons with star wheel adjusters for accurate brake shoe adjustment
• 1.25 inch (31.75 mm) bore diameter ensuring proper hydraulic pressure
• Includes bleeder screw for easy brake fluid bleeding and maintenance
• Bubble flare type inlet fittings with 0.438 inch thread diameter and 20 pitch thread
• Lightweight design at 1.75 lbs (0.8 kgs) for efficient brake system integration

Product Line Overview: Centric Premium Wheel Cylinders

The Centric Premium Wheel Cylinders line focuses on delivering high-quality brake hydraulics components engineered to meet or exceed OEM specifications. This product line emphasizes precise fitment, reliable sealing, and long service life, making it suitable for professional repairs and maintenance of drum brake systems. The 134.82024 wheel cylinder exemplifies these qualities with its dual piston design and adjustable features.

Detailed Product Description

The Centric Premium Wheel Cylinders 134.82024 is a drum brake wheel cylinder designed for vehicles requiring a bolted attachment with two mounting bolts. It features two slotted pistons, each equipped with star wheel adjusters, allowing for fine-tuning of brake shoe clearance. The bore diameter measures 1.25 inches (31.75 mm), providing the necessary hydraulic force to actuate the brake shoes effectively. The inlet fitting uses a bubble flare type with a 0.438 inch thread diameter and 20 pitch, ensuring compatibility with standard brake lines. A bleeder screw is included to facilitate brake fluid bleeding during installation or maintenance, helping maintain optimal brake performance.

Common Applications and Issues Addressed

• Replacement for leaking or seized drum brake wheel cylinders
• Restores proper hydraulic pressure in drum brake systems
• Corrects uneven brake shoe wear caused by faulty pistons
• Improves brake pedal feel and responsiveness
• Resolves brake fluid leaks at the wheel cylinder connection

Installation Notes and Tips

Ensure the mounting surface is clean and free of debris before installing the wheel cylinder. Use the two-bolt mounting method to secure the cylinder firmly. When connecting brake lines, verify the bubble flare fittings are properly seated to prevent leaks. Bleed the brake system thoroughly using the included bleeder screw to remove air and ensure consistent hydraulic pressure. Check for proper piston movement and star wheel adjuster function during installation.

Quality Assurance and Warranty

Centric Premium Wheel Cylinders are manufactured to meet stringent quality standards, ensuring reliable performance and durability. The 134.82024 part undergoes rigorous testing to verify bore dimensions, piston operation, and sealing integrity. While specific warranty details are not provided, Centric products typically come with a limited warranty against defects in materials and workmanship.
