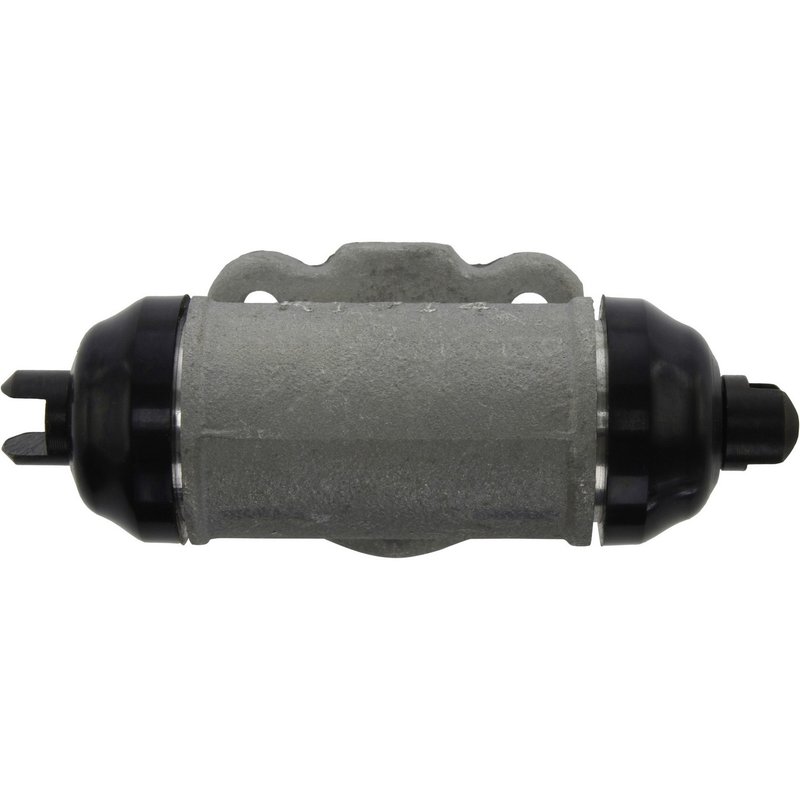

Centric 135.42207 Drum Brake Wheel Cylinder - Rear

Reliable Drum Brake Wheel Cylinder for Nissan Vehicles

The Centric C-TEK Standard Wheel Cylinder 135.42207 is engineered for precise brake hydraulics performance. Designed specifically for Nissan 200SX, NX, and Sentra models, this drum brake wheel cylinder ensures consistent braking response and durability.

• Attachment Type: Bolted for secure installation
• Mounting Method: 2 bolts with 2 mounting holes
• Bore Diameter: 0.625 inches (15.875 mm)
• Includes bleeder screw with 7 mm thread diameter and 1.000 thread pitch
• Dual slotted pistons for balanced brake pressure
• Inverted flare inlet and port fittings for reliable hydraulic connections
• Compatible with left and right wheel positions
• Lightweight design at 0.360 lbs (0.160 kgs)

About the C-TEK Standard Wheel Cylinders Product Line

The C-TEK Standard Wheel Cylinders line by Centric offers dependable replacement parts designed to meet or exceed OEM specifications. This product line focuses on delivering consistent hydraulic performance and fitment accuracy, making it suitable for routine maintenance and brake system repairs on compatible Nissan models.

Detailed Product Description

This Centric drum brake wheel cylinder features a bolted attachment type with two mounting bolts, ensuring a secure and stable fit on Nissan 200SX, NX, and Sentra vehicles. The 0.625-inch bore diameter provides the correct hydraulic pressure for effective drum brake operation. Both pistons are slotted, which helps maintain even pressure distribution and smooth brake function. The included bleeder screw simplifies brake fluid bleeding and maintenance, featuring a 7 mm thread diameter and 1.000 thread pitch. The inverted flare fittings on both the inlet and port connections ensure leak-free hydraulic line attachment. This wheel cylinder is designed for use on both left and right sides, providing versatility in brake system repairs.

Common Applications and Issues Addressed

• Replacement for leaking or damaged wheel cylinders in Nissan 200SX, NX, and Sentra drum brake systems
• Restores proper hydraulic pressure to prevent brake drag or spongy pedal feel
• Solves uneven brake shoe wear caused by faulty pistons
• Addresses brake fluid leaks at the wheel cylinder
• Improves overall brake responsiveness and safety

Installation Notes and Tips

• Ensure the mounting surface is clean and free of debris before installation
• Use the included bleeder screw to properly bleed air from the brake system after installation
• Verify the inverted flare fittings are securely tightened to prevent leaks
• Check both left and right wheel cylinders for wear to maintain balanced braking
• Follow vehicle-specific service manual instructions for torque specifications and brake system procedures

Quality Assurance and Warranty

Centric C-TEK Standard Wheel Cylinders are manufactured to meet strict quality standards, ensuring reliable performance and durability. This part number 135.42207 undergoes rigorous testing to comply with OEM specifications for Nissan 200SX, NX, and Sentra models. Warranty coverage details should be confirmed with the product documentation or supplier.
