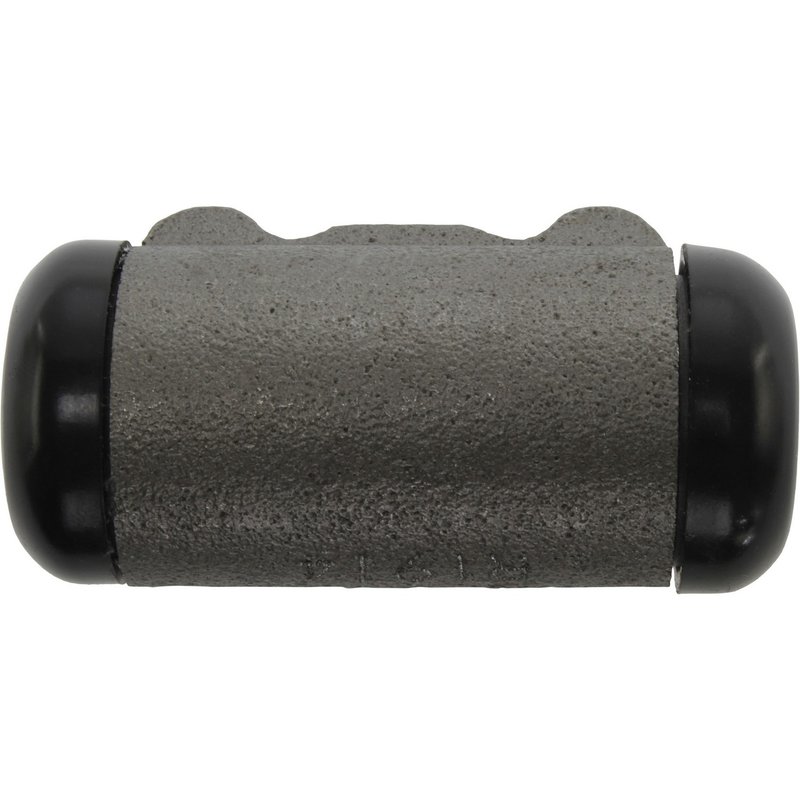

Centric 135.61011 Drum Brake Wheel Cylinder - Front Left

Overview of Centric C-TEK Standard Wheel Cylinder 135.61011

The Centric C-TEK Standard Wheel Cylinder 135.61011 is designed for reliable drum brake performance on select Ford and Mercury vehicles. This wheel cylinder is engineered to meet OEM specifications, ensuring proper fit and function for models like the Ford Mustang and Mercury Villager.

• Attachment Type: Bolted for secure mounting
• Mounting Method: 2 bolts with 2 mounting holes
• Bore Diameter: 1.063 inches (26.988 mm)
• Includes bleeder screw with 0.250 inch thread diameter
• Two flat pistons for balanced brake pressure
• Inlet thread diameter of 0.375 inches with 24 pitch thread
• Bubble flare type inlet and port 2 flare for proper hydraulic connection
• Positioned for left side installation
• Weight: approximately 0.99 lbs (0.45 kgs)

About the C-TEK Standard Wheel Cylinders Product Line

The C-TEK Standard Wheel Cylinders line by Centric offers dependable brake hydraulics designed to meet or exceed original equipment standards. This product line focuses on providing precise fitment and consistent performance for drum brake systems, making it suitable for vehicles requiring exact replacement parts. The 135.61011 wheel cylinder is part of this line, ensuring compatibility and durability for Ford Mustang and Mercury Villager drum brake applications.

Detailed Product Description

This drum brake wheel cylinder features a bolted attachment type with two mounting bolts, providing a secure and stable installation. The bore diameter of 1.063 inches allows for effective hydraulic pressure transfer to the two flat pistons, which help evenly distribute braking force. The included bleeder screw simplifies brake system maintenance by allowing air to be purged efficiently. The inlet fitting uses a bubble flare type with a 0.375 inch thread diameter and 24 pitch thread, ensuring a leak-free connection to the brake line. Designed for the left side of the vehicle, this wheel cylinder weighs just under one pound, making it a lightweight yet durable component for your brake system.

Common Applications and Issues Addressed

• Replacement for leaking or damaged wheel cylinders on Ford Mustang and Mercury Villager drum brakes
• Restores proper hydraulic pressure and brake function
• Eliminates brake fluid leaks caused by worn seals or pistons
• Resolves uneven brake application due to piston wear
• Improves brake pedal feel and responsiveness

Installation Notes and Tips

• Ensure the vehicle is securely lifted and supported before beginning installation
• Use the included bleeder screw to properly bleed the brake system after installation
• Verify the wheel cylinder is installed on the left side as specified
• Check all hydraulic connections for leaks after installation
• Use appropriate torque specifications for the 2 mounting bolts to avoid damage

Quality Assurance and Warranty

Centric's C-TEK Standard Wheel Cylinders are manufactured to meet strict quality standards, ensuring reliable performance and durability. The 135.61011 part undergoes rigorous testing to comply with OEM specifications. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
