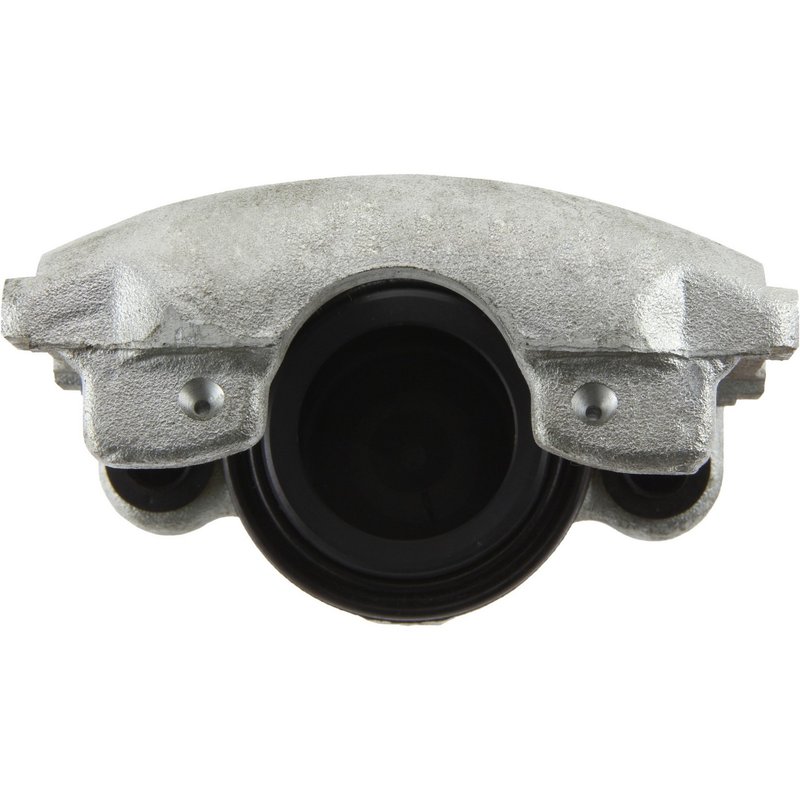

Centric 141.04011 Disc Brake Caliper - Front Right
Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.04011
The Centric Premium Semi-Loaded Disc Brake Caliper 141.04011 is designed specifically for the Fiat 500, providing reliable braking performance with durable construction. This floating caliper features a single steel piston and comes semi-loaded for easier installation.
- Compatible with Fiat 500 models
- Part number: 141.04011
- Cast iron caliper casting for strength and durability
- Single steel piston with 54mm diameter
- Includes mounting bracket and abutment clips
- Bleeder screw included with M7x1.0 thread size
- Floating caliper design for consistent pad wear
- Gray finish for corrosion resistance
Product Features and Specifications
This Centric Premium Semi-Loaded Disc Brake Caliper is engineered with a cast iron body to withstand the rigors of daily driving. The floating caliper type uses a single 54mm steel piston to apply even pressure to the brake pads. It includes essential hardware such as the mounting bracket and abutment clips, though mounting bolts and brake pads are not included. The inlet thread size is M10x1.0, and the bleeder screw with M7x1.0 thread is supplied for proper brake fluid bleeding. The caliper’s gray finish helps resist corrosion, extending service life.
About Centric Premium Semi-Loaded Disc Brake Calipers
The Centric Premium Semi-Loaded Disc Brake Calipers line offers a balance between ease of installation and quality components. Semi-loaded calipers come pre-assembled with pistons and seals, reducing installation time compared to fully rebuilt calipers. This product line is designed to meet or exceed OEM specifications, providing a reliable replacement option for vehicles like the Fiat 500.
Applications and Problem Solving
- Replacement for worn or damaged Fiat 500 front disc brake calipers
- Addresses uneven brake pad wear caused by sticking calipers
- Resolves brake fluid leaks from damaged piston seals
- Improves braking performance by restoring proper caliper function
- Eliminates brake noise related to faulty caliper hardware
Installation Notes and Tips
Ensure the mounting bracket is installed securely as it is required for this caliper. Since mounting bolts and brake pads are not included, verify compatibility and availability before installation. Bleed the brake system thoroughly using the included bleeder screw to remove air and maintain optimal brake performance. Check inlet thread size M10x1.0 for proper brake line fitting.
Quality Assurance and Warranty
Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet strict quality standards, using durable cast iron and steel piston materials. This caliper is designed to provide consistent braking performance and long service life. Warranty details should be confirmed with the point of purchase or manufacturer documentation.
| Brand | Centric |
|---|---|
| Part Number | 141.04011 |
| Position | Centric Premium Semi-Loaded Disc Brake Calipers, Front Right |
| Abutment Clips Included | Yes |
| Air Gap [orely] | 100.5mm |
| Bleeder Screw Included | Yes |
| Bleeder Screw Included [cntrc] | Yes |
| Bleeder Screw Thread Diameter | 7.000 |
| Bleeder Screw Thread Diameter | M7x1.0 |
| Bleeder Screw Thread Size | M7-1.00 |
| Bore Size(s) millimeters | 54 |
| Bracket # [cntrc] | na |
| Bracket Included | Yes |
| Bracket Mounting Bolts Include | No |
| Bracket Required (Y/N) | Yes |
| Bracket Required [cntrc] | Yes |
| Caliper & Pad Hardware Include | Yes |
| Caliper Boot & Seal Kit# [cntrc] | 143.04004 |
| Caliper Casting Material | Cast Iron |
| Caliper Color | Gray |
| Caliper Manufacturer [cntrc] | ATE |
| Caliper Type | Floating |
| Casting Number | 626; 628; |
| Color | Gray |
| Finish | Rust Preventative |
| Finish [cntrc] | Rust Preventative |
| Friction Materials Standards Institute Pad Number | 10x.15680 |
| Hardware Kit# [cntrc] | 117.04003 |
| Inlet Thread Diameter | 10.000 |
| Inlet Thread Diameter | M10x1.0 |
| Inlet Thread Size | M10-1.00 |
| Mount Thread Size [cntrc] mm | M12-1.25 |
| Mounting Bracket Included | Yes |
| Mounting Hardware Included | No |
| New or Ramanufactured [cntrc] | Remanufactured |
| New or Remanufactured | Remanufactured |
| Pad Wear Sensor Included | No |
| Pads Included | No |
| Pads Included | No |
| Piston Diameter | 2.126 |
| Piston Diameter | 54.000 |
| Piston Material | Steel |
| Piston Quantity | 1 |
| Published Bore Size [cntrc] | 54 |
| Root Core# [cntrc] | 04011 |
| Rust Preventative Coating | Yes |
| Rust Preventative Coating [cntrc] | Yes |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2012 | Fiat | 500 | c Pop | Front Right | Silver; To 11/20/11; Centric Premium Semi-Loaded Disc Brake Calipers |
| 2012 | Fiat | 500 | c Lounge | Front Right | Silver; To 11/20/11; Centric Premium Semi-Loaded Disc Brake Calipers |
| 2012 | Fiat | 500 | Sport | Front Right | Silver; To 11/20/11; Centric Premium Semi-Loaded Disc Brake Calipers |
| 2012 | Fiat | 500 | Pop | Front Right | Silver; To 11/20/11; Centric Premium Semi-Loaded Disc Brake Calipers |
| 2012 | Fiat | 500 | Lounge | Front Right | Silver; To 11/20/11; Centric Premium Semi-Loaded Disc Brake Calipers |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
