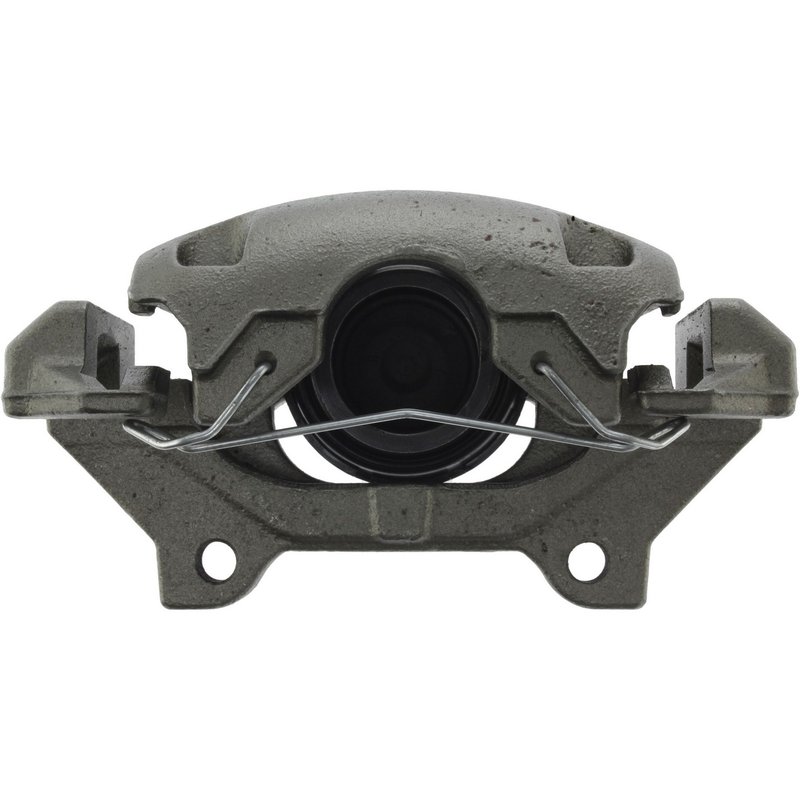

Centric 141.04013 Disc Brake Caliper - Front Right

Overview of Centric Premium Semi-Loaded Disc Brake Caliper

The Centric Premium Semi-Loaded Disc Brake Caliper 141.04013 is engineered for reliable braking performance on Fiat 500 models. Designed as a floating caliper with durable cast iron construction, this part ensures consistent stopping power and durability under normal driving conditions.

• Compatible with Fiat 500 vehicles
• Part number 141.04013 for precise identification
• Cast iron caliper casting for strength and heat resistance
• Single steel piston with 54mm diameter for effective braking force
• Includes abutment clips, mounting bracket, and bleeder screw
• Floating caliper type with leading axle configuration
• Inlet thread size M10x1.0 with bubble inlet fitting

Product Line Details: Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line offers semi-assembled calipers that include key components such as abutment clips, mounting brackets, and bleeder screws. This reduces installation time and ensures compatibility with specific vehicle models like the Fiat 500. The semi-loaded design allows for flexibility in brake pad selection, as pads and mounting hardware are not included with this part.

Technical Specifications and Features

This disc brake caliper features a cast iron body for enhanced durability and heat dissipation. The single piston is made of steel and measures 54mm in diameter, providing consistent hydraulic pressure for effective braking. The caliper is a floating type, designed for the leading axle of the Fiat 500, and includes a bleeder screw with M10x1.0 thread size for easy brake fluid maintenance. The inlet fitting uses a bubble type connection with a 10mm thread diameter, ensuring secure hydraulic line attachment.

Applications and Problem Solving

• Replacement for worn or damaged front disc brake calipers on Fiat 500
• Addresses issues with uneven brake pad wear due to caliper malfunction
• Resolves brake fluid leakage by providing a new bleeder screw and proper sealing
• Improves braking response when original caliper piston is seized or corroded
• Supports maintenance of brake system integrity with included mounting bracket and clips

Installation Notes and Tips

• Ensure compatibility with Fiat 500 model year before installation
• Brake pads and mounting hardware are not included and must be sourced separately
• Use proper torque specifications for mounting bracket bolts (not included)
• Bleed brake system thoroughly after installation to remove air from hydraulic lines
• Inspect brake lines and fittings for wear or damage during installation

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM standards for fit, form, and function. The cast iron construction and steel piston materials provide durability and resistance to corrosion. This part number 141.04013 is backed by Centric’s quality control processes to ensure reliable performance. Warranty details should be confirmed with the point of purchase or manufacturer documentation.
