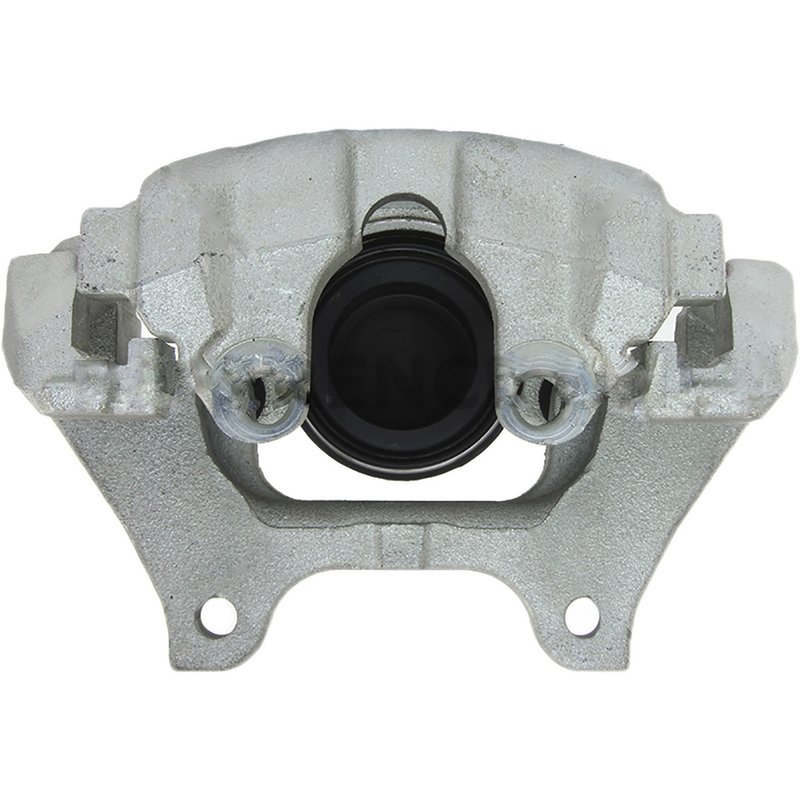

Centric 141.04016 Disc Brake Caliper - Front Left

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.04016

The Centric Premium Semi-Loaded Disc Brake Caliper 141.04016 is engineered for reliable braking performance on Fiat 500L and Ram ProMaster City vehicles. Designed as a floating caliper with a single steel piston, this component ensures consistent brake application and durability.

• Compatible with Fiat 500L and Ram ProMaster City models
• Cast iron caliper construction for strength and heat resistance
• Single steel piston with 57 mm diameter for effective braking force
• Includes abutment clips, mounting bracket, and bleeder screw
• Floating caliper type with M10x1.0 inlet and bleeder screw threads

Product Line Details: Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line offers semi-assembled calipers that include essential components such as abutment clips, mounting brackets, and bleeder screws. This design simplifies installation while maintaining high standards of quality and fitment. The 141.04016 caliper is part of this line, providing a balance between ready-to-install convenience and the flexibility to use existing brake pads.

Technical Specifications and Features

This disc brake caliper features a cast iron body known for its durability and heat dissipation properties. The floating caliper design allows for smooth movement and even pad wear. It is equipped with a single steel piston measuring 57 mm in diameter, which delivers consistent hydraulic pressure to the brake pads. The inlet fitting and bleeder screw both use M10x1.0 thread sizes, compatible with standard brake hydraulic systems. Included components such as the mounting bracket, abutment clips, and bleeder screw facilitate proper installation and maintenance.

Applications and Problem Solving

• Replacement for worn or damaged disc brake calipers on Fiat 500L and Ram ProMaster City
• Addresses issues with uneven brake pad wear due to caliper malfunction
• Resolves brake fluid leakage by providing a reliable bleeder screw and inlet fitting
• Improves braking response and safety by restoring proper caliper function
• Suitable for vehicles requiring a floating caliper with a 57 mm piston diameter

Installation Notes and Tips

Ensure compatibility with your Fiat 500L or Ram ProMaster City before installation. This caliper does not include brake pads or mounting hardware bolts, so verify if these components are needed separately. The included mounting bracket and abutment clips should be installed according to manufacturer specifications. Properly bleed the brake system using the included bleeder screw to remove air and maintain hydraulic integrity.

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM standards for fit, form, and function. The cast iron construction and steel piston materials contribute to long service life under normal operating conditions. Warranty details are provided by Centric and typically cover defects in materials and workmanship; please refer to Centric's official warranty policy for specific terms.
