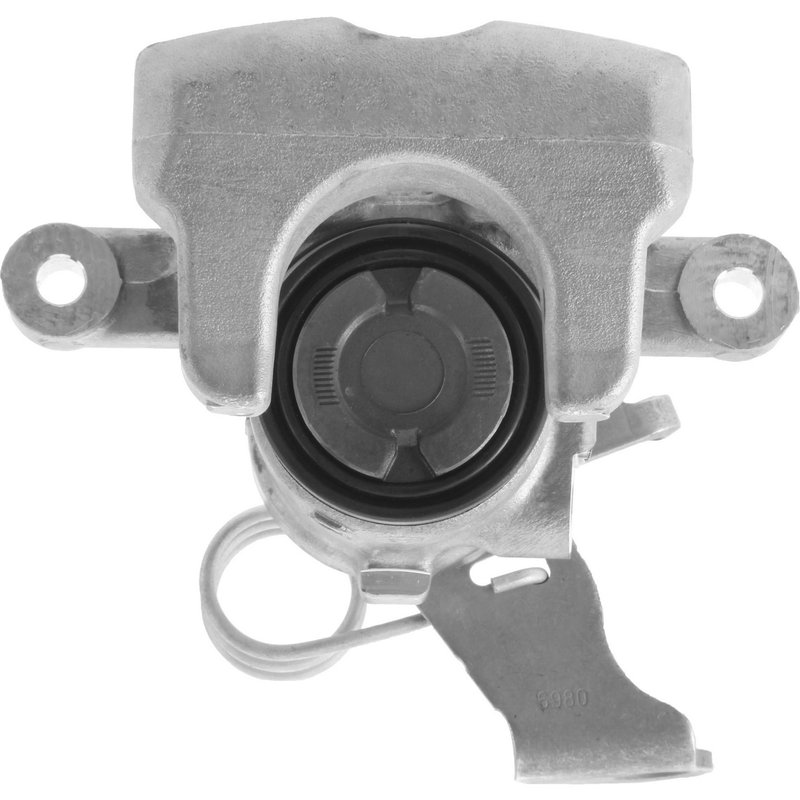

Centric 141.04509 Disc Brake Caliper - Rear Right

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.04509

The Centric Premium Semi-Loaded Disc Brake Caliper 141.04509 is engineered for reliable braking performance on Fiat 500 models. Designed as a floating caliper with a single steel piston, this component offers precise fitment and durable construction for effective brake system operation.

• Compatible with Fiat 500 vehicles
• Caliper type: Floating with 1 steel piston
• Caliper and casting material: Aluminum for lightweight durability
• Includes abutment clips, mounting bracket, and bleeder screw
• Inlet thread size: M10x1.0 with bubble inlet fitting
• Bleeder screw thread size: M10x1.0 with 4.5 thread count
• Caliper color: Gray
• Pad wear sensor not included
• Pads and mounting hardware not included

Details on Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line is designed to provide a balance between ease of installation and component quality. This semi-loaded caliper includes essential parts such as the mounting bracket, abutment clips, and bleeder screw, streamlining the brake replacement process without including pads or mounting hardware. The use of aluminum casting material reduces weight while maintaining strength, and the floating caliper design with a single 38mm steel piston ensures consistent braking force and heat dissipation. The gray finish offers corrosion resistance and a clean appearance.

Technical Specifications and Features

• Caliper casting number: 38; 912;
• Piston diameter: 38mm (1.496 inches)
• Body air gap: 47.0mm; bracket air gap: 16.5mm
• Axle position: Trailing
• Friction Materials Standards Institute pad number: 10x.15690
• Includes bleeder screw with M10-1.00 thread size

Common Applications and Problem Solving

• Replacement for worn or damaged Fiat 500 disc brake calipers
• Addresses brake drag or uneven pad wear due to caliper malfunction
• Resolves brake fluid leakage from faulty bleeder screws or piston seals
• Improves braking response and pedal feel on trailing axle
• Suitable for restoring braking system integrity after collision damage

Installation Notes and Tips

Ensure compatibility with Fiat 500 models before installation. This caliper does not include brake pads or mounting hardware, so these components must be sourced separately. Properly bleed the brake system using the included bleeder screw to remove air and maintain hydraulic pressure. Verify inlet thread size M10x1.0 matches existing brake lines. Use recommended torque specifications for mounting bracket and caliper bolts to avoid damage.

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Caliper 141.04509 is manufactured to meet or exceed OEM standards for fit, form, and function. The aluminum construction and steel piston materials are selected for durability and corrosion resistance. While specific warranty details are not provided here, Centric products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or supplier for exact warranty terms.
