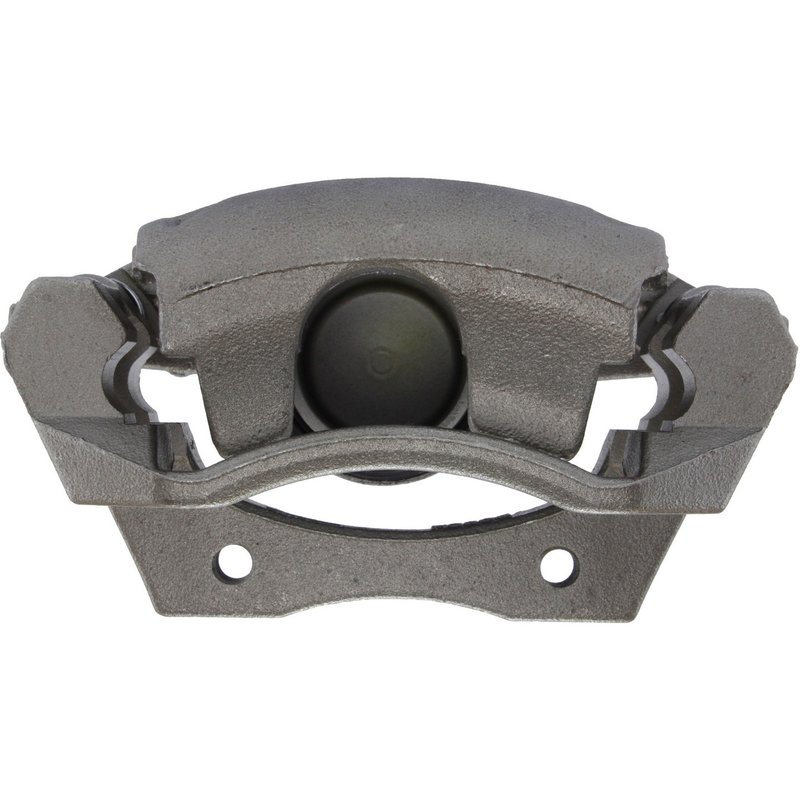

Centric 141.20016 Disc Brake Caliper - Front Left

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.20016

The Centric Premium Semi-Loaded Disc Brake Caliper 141.20016 is engineered for reliable braking performance on Jaguar X-Type vehicles. Designed as a floating caliper with a single steel piston, this component ensures consistent stopping power and durability.

• Compatible with Jaguar X-Type models
• Cast iron caliper construction for strength and heat resistance
• Single piston design with 57mm bore diameter
• Includes mounting bracket and abutment clips for installation
• Bleeder screw included with M10x1.0 thread size
• Gray finish for corrosion resistance
• Bracket required and included; mounting hardware not included
• Inlet thread size M10-1.00 with bubble type fitting

Product Line Details: Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line offers semi-assembled calipers that include essential components such as brackets and abutment clips, simplifying installation while maintaining high manufacturing standards. This product line balances ease of installation with quality materials, such as cast iron caliper bodies and steel pistons, to meet the demands of performance and durability for vehicles like the Jaguar X-Type.

Technical Description and Specifications

This floating disc brake caliper features a cast iron body designed to withstand high temperatures and mechanical stress. The single piston, made of steel, has a diameter of 57mm, providing effective clamping force on the brake pads. The caliper includes a bleeder screw with an M10x1.0 thread size to facilitate brake fluid bleeding during maintenance. The inlet fitting uses a bubble type connection with a 10mm thread diameter (M10-1.00), compatible with standard brake lines. The caliper is finished in gray to resist corrosion and includes abutment clips and a mounting bracket, though mounting bolts and brake pads are not included.

Applications and Problem Solving

• Replacement for worn or damaged disc brake calipers on Jaguar X-Type
• Addresses issues with uneven brake pad wear due to caliper malfunction
• Resolves brake fluid leaks from faulty piston seals or bleeder screws
• Improves braking response when original caliper components have corroded
• Suitable for restoring proper brake function after caliper bracket damage

Installation Notes and Tips

• Ensure the mounting bracket included is properly installed as it is required for this caliper
• Brake pads and mounting hardware are not included and must be sourced separately
• Bleed the brake system thoroughly after installation using the included bleeder screw
• Verify inlet fitting compatibility with existing brake lines (M10x1.0 thread, bubble type)
• Inspect all brake components for wear or damage during installation

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM specifications for fit, form, and function. The cast iron caliper body and steel piston materials provide durability under normal operating conditions. This part is backed by Centric’s standard warranty coverage, ensuring reliability and performance for Jaguar X-Type brake system repairs.
