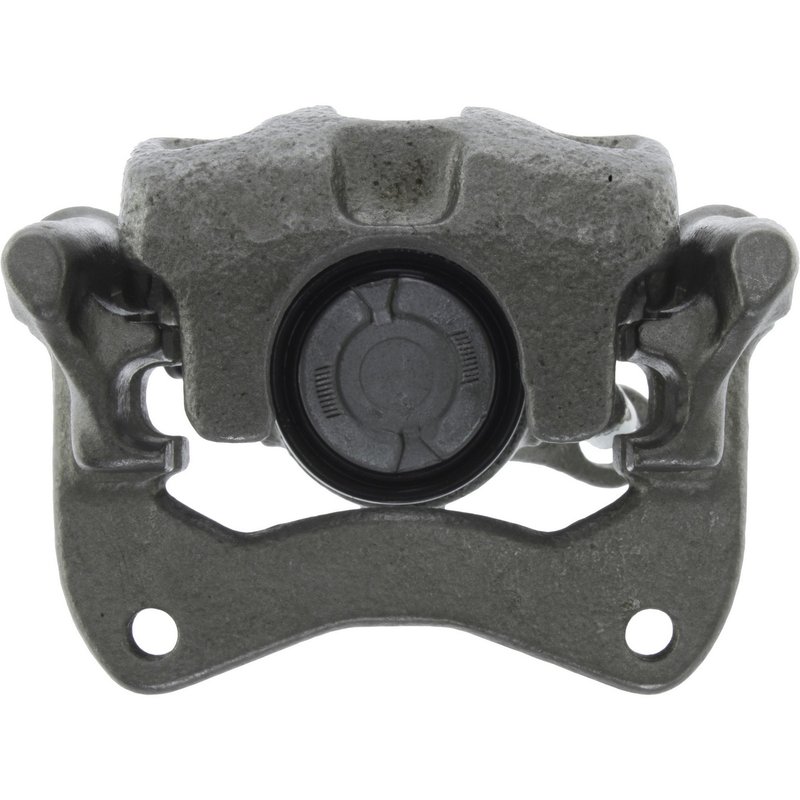

Centric 141.33505 Disc Brake Caliper - Rear Left or Rear Right

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.33505

The Centric Premium Semi-Loaded Disc Brake Caliper 141.33505 is designed for reliable braking performance on select Audi models. Engineered with durable cast iron and a floating caliper design, this part ensures consistent stopping power for vehicles like the Audi 80 Quattro and A6 Quattro.

• Compatible with Audi 80 Quattro, 90 Quattro, 100 Quattro, 200 Quattro, A6 Quattro, A8, and Coupe Quattro models
• Cast iron caliper casting material for strength and durability
• Single steel piston with a 38mm diameter for effective brake force
• Floating caliper type for smooth operation and even pad wear
• Includes abutment clips, mounting bracket, and bleeder screw for maintenance
• Inlet thread size M10x1.0 with bubble inlet fitting type
• Gray caliper color with casting numbers 2625 and 38

About Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line offers a balance between fully loaded and basic caliper assemblies. This semi-loaded caliper includes essential components such as the mounting bracket, abutment clips, and bleeder screw, but does not include brake pads or mounting hardware. This design allows for easier integration with existing brake pads and hardware, providing flexibility for maintenance or upgrades on compatible Audi vehicles.

Technical Details and Features

This disc brake caliper features a single piston made of steel with a 38mm bore size, providing reliable hydraulic pressure application. The caliper is constructed from cast iron, which offers durability and resistance to heat and wear. The floating caliper design helps maintain even pad contact and reduces uneven wear. The inlet thread diameter is M10x1.0, compatible with standard brake lines, and the bleeder screw is included with the same thread size for proper brake fluid bleeding. The caliper comes in a gray finish and includes abutment clips and a mounting bracket, though mounting hardware bolts are not included.

Applications and Problem Solving

• Replacement for worn or damaged disc brake calipers on Audi Quattro models
• Addresses issues with uneven brake pad wear due to caliper malfunction
• Resolves brake fluid leakage by providing a new, properly sealed caliper assembly
• Improves braking response and pedal feel on compatible Audi vehicles
• Suitable for restoring braking system performance after caliper corrosion or piston damage

Installation Notes and Tips

Ensure the mounting bracket is properly installed as it is required for this caliper. Since mounting hardware bolts are not included, retain or purchase the correct bolts separately. Verify the inlet thread size M10x1.0 matches your brake line fittings. Bleed the brake system thoroughly after installation using the included bleeder screw to remove air and ensure optimal brake performance. This caliper does not include brake pads or pad wear sensors, so inspect and replace pads as needed.

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM specifications for fit, form, and function. The cast iron construction and steel piston materials provide durability under normal operating conditions. While specific warranty details are not provided here, Centric products typically come with a limited warranty against defects in materials and workmanship. Consult product documentation or supplier for exact warranty terms.
