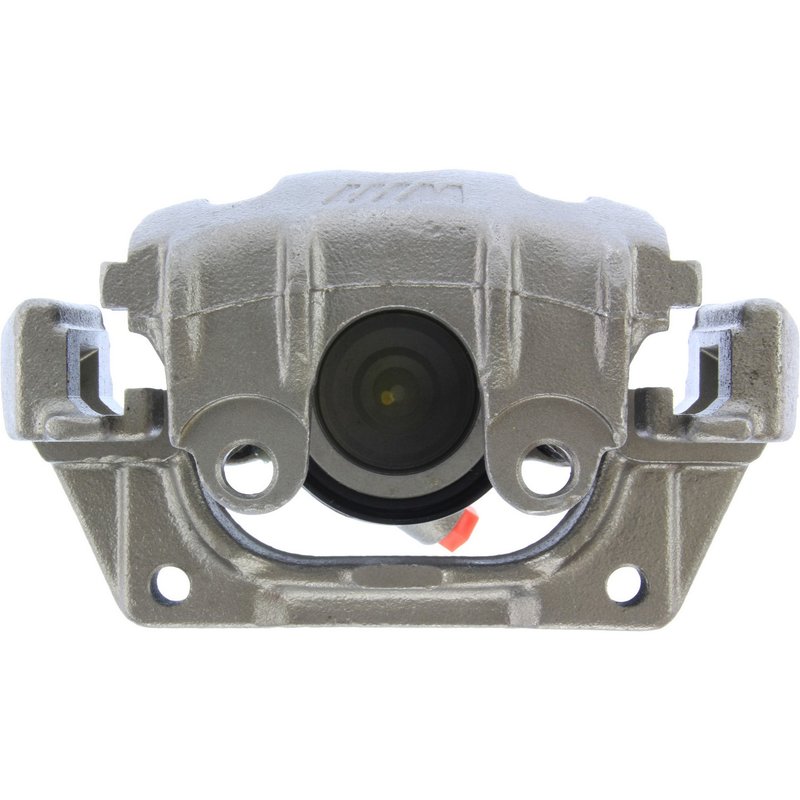

Centric 141.34031 Disc Brake Caliper - Front Right

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.34031

The Centric Premium Semi-Loaded Disc Brake Caliper 141.34031 is engineered for reliable braking performance on select BMW models including the M3, M5, and Z3. Designed as a floating caliper with a single steel piston, this component offers durable cast iron construction and essential mounting hardware for effective brake system function.

• Compatible with BMW M3, M5, and Z3 models
• Floating disc brake caliper design with one steel piston
• Constructed from cast iron for strength and heat resistance
• Includes abutment clips, mounting bracket, and bleeder screw
• Inlet thread size M10x1.0 with bubble type fitting
• Gray caliper color with a 60mm bore size

Product Line Details: Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line provides semi-assembled calipers that include key components such as abutment clips, mounting brackets, and bleeder screws, but exclude pads and mounting hardware. This approach allows for easier installation and maintenance while ensuring compatibility with specific vehicle brake systems. The 141.34031 caliper is part of this line, offering a balance between ready-to-install convenience and customization for BMW brake hydraulics.

Technical Specifications and Features

This disc brake caliper features a single piston with a diameter of 60mm, made from steel for durability and consistent braking force. The caliper body is cast iron, providing resistance to heat and wear during braking. It uses a floating caliper design, which allows for self-alignment and even pad wear. The inlet thread diameter is M10x1.0 with a bubble fitting type, and the bleeder screw thread size is M7x1.0, included with the caliper for proper brake fluid bleeding. The caliper comes in a gray finish and includes abutment clips and a mounting bracket, though mounting hardware and brake pads are not included.

Applications and Problem Solving

• Replacement for worn or damaged disc brake calipers on BMW M3, M5, and Z3
• Restores proper brake piston function and fluid sealing
• Addresses uneven brake pad wear due to caliper misalignment
• Resolves brake fluid leakage from faulty bleeder screws or inlet fittings
• Improves braking response and safety by maintaining caliper integrity

Installation Notes and Tips

Ensure the mounting bracket is installed as it is required for proper caliper fitment. Since mounting hardware and brake pads are not included, use compatible components specific to your BMW model. Verify the inlet thread size (M10x1.0) matches your brake line fittings. Bleed the brake system thoroughly after installation using the included bleeder screw to remove air and maintain optimal brake performance.

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM standards for fit, form, and function. The 141.34031 caliper undergoes rigorous quality control to ensure durability and reliable braking performance. Warranty coverage details should be confirmed with the product documentation or supplier.
