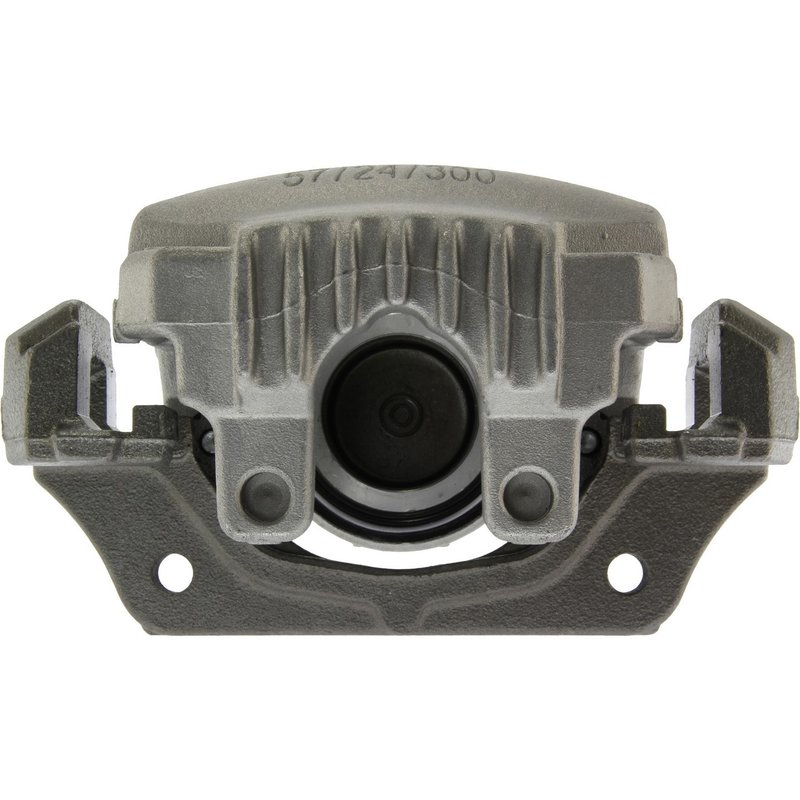

Centric 141.34075 Disc Brake Caliper - Front Right

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.34075

The Centric Premium Semi-Loaded Disc Brake Caliper 141.34075 is engineered for reliable braking performance on select BMW models. Designed as a floating caliper with a single aluminum piston, it offers a balance of durability and weight savings for vehicles like the BMW 323i, 325i, 325xi, 328i, and 328xi.

• Compatible with BMW 323i, 325i, 325xi, 328i, and 328xi models
• Part number 141.34075 for precise identification
• Floating caliper design with one aluminum piston
• Caliper casting made from lightweight aluminum
• Includes mounting bracket and abutment clips
• Bleeder screw included with M10x1.0 thread size
• Inlet fitting type: bubble with M10x1.0 thread diameter
• Gray caliper color for corrosion resistance

Details on Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line is designed to provide a semi-assembled solution that simplifies installation while maintaining OEM-level quality. This product line includes essential components such as the mounting bracket and abutment clips, reducing the need for additional parts. The 141.34075 caliper features a floating design with a single 57mm aluminum piston, which helps reduce unsprung weight and improve heat dissipation. The caliper’s aluminum casting material contributes to corrosion resistance and longevity, making it suitable for daily driving conditions on BMW 3 Series models.

Technical Specifications and Features

• Pad wear sensor: Not included
• Inlet thread diameter: M10x1.0 (10.000 mm)
• Bleeder screw thread size: M10x1.0, bleeder screw included
• Piston diameter: 57 mm (2.244 inches)
• Caliper color: Gray
• Bracket required and included; mounting hardware not included
• Air gap: 100.5 mm
• Friction Materials Standards Institute pad number: 10x.10610 (pads not included)

Common Applications and Problem Solving

• Replacement for worn or leaking disc brake calipers on BMW 323i, 325i, 325xi, 328i, and 328xi
• Restores proper brake piston movement and pressure for consistent braking
• Addresses brake noise or uneven pad wear caused by faulty calipers
• Improves brake system reliability after corrosion or damage to original calipers
• Supports brake system maintenance without the need for full caliper rebuild

Installation Notes and Tips

Installation of the Centric Premium Semi-Loaded Disc Brake Caliper 141.34075 requires the use of the included mounting bracket and abutment clips. Note that mounting hardware bolts are not included and must be sourced separately. Bleeder screw is included to facilitate proper brake fluid bleeding during installation. Ensure compatibility with BMW 3 Series models listed before installation. Proper torque specifications should be followed to avoid brake system issues.

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM standards for fit, form, and function. The aluminum construction and included components are designed for durability and corrosion resistance. While specific warranty details are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Verify warranty terms with the supplier or manufacturer documentation.
