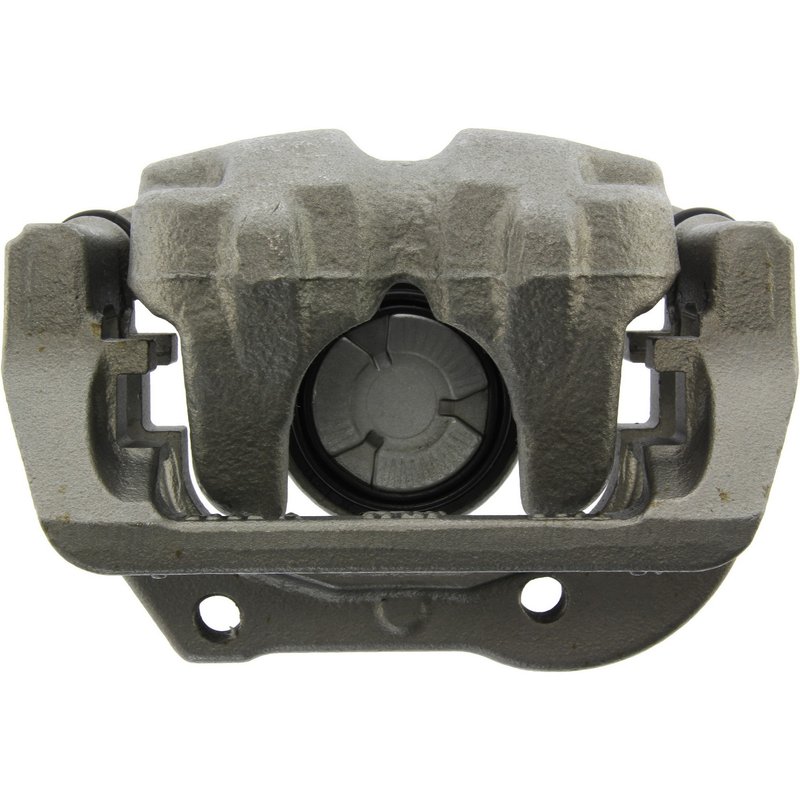

Centric 141.34611 Disc Brake Caliper - Rear Right

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.34611

The Centric Premium Semi-Loaded Disc Brake Caliper 141.34611 is engineered for precise braking performance on select BMW models. Designed as a floating caliper with a single steel piston, it offers reliable stopping power and durability for vehicles like the BMW 535i, 550i, and 640i series.

• Compatible with BMW 535i, 550i, 550i xDrive, 640i, 640i Gran Coupe, 640i xDrive, 640i xDrive Gran Coupe, 650i, 650i Gran Coupe, 650i xDrive, and 650i xDrive Gran Coupe
• Part number 141.34611 for precise identification
• Cast iron caliper construction for strength and heat resistance
• Single steel piston with 44mm diameter for consistent braking force
• Includes abutment clips, mounting bracket, and bleeder screw for semi-loaded setup
• Gray finish with M10x1.0 inlet and bleeder screw thread sizes

Product Line Details: Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line provides a balance between fully loaded and bare caliper options. This semi-loaded caliper includes essential components such as the mounting bracket, abutment clips, and bleeder screw, simplifying installation while allowing reuse of existing brake pads and hardware. This approach offers a cost-effective solution for maintaining braking system integrity on compatible BMW models.

Technical Specifications and Features

This floating disc brake caliper features a robust cast iron body designed to withstand high temperatures and mechanical stress. The single piston, made of steel and measuring 44mm in diameter, ensures even pressure distribution on the brake pads. The caliper’s inlet and bleeder screw both use M10x1.0 thread sizes, facilitating compatibility with standard brake lines and maintenance tools. The gray finish provides corrosion resistance and a clean appearance under the wheel.

Applications and Problem Solving

• Replacement for worn or damaged front disc brake calipers on specified BMW 5 and 6 Series models
• Addresses issues such as uneven brake pad wear due to caliper piston malfunction
• Resolves brake fluid leaks caused by damaged or corroded caliper bodies or bleeder screws
• Improves braking response and pedal feel by restoring proper caliper function
• Supports maintenance of brake system safety and performance on BMW 535i, 550i, and 640i variants

Installation Notes and Tips

This semi-loaded caliper requires the reuse of existing brake pads and mounting hardware, as these are not included. Ensure the mounting bracket and abutment clips are properly secured to maintain caliper alignment. Bleed the brake system thoroughly after installation using the included bleeder screw to remove air and restore hydraulic pressure. Verify thread compatibility with brake lines using the M10x1.0 inlet thread size.

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM standards for fit, form, and function. The cast iron construction and steel piston materials contribute to long service life and consistent braking performance. While specific warranty details are not provided here, Centric products typically come with a limited warranty covering defects in materials and workmanship.
