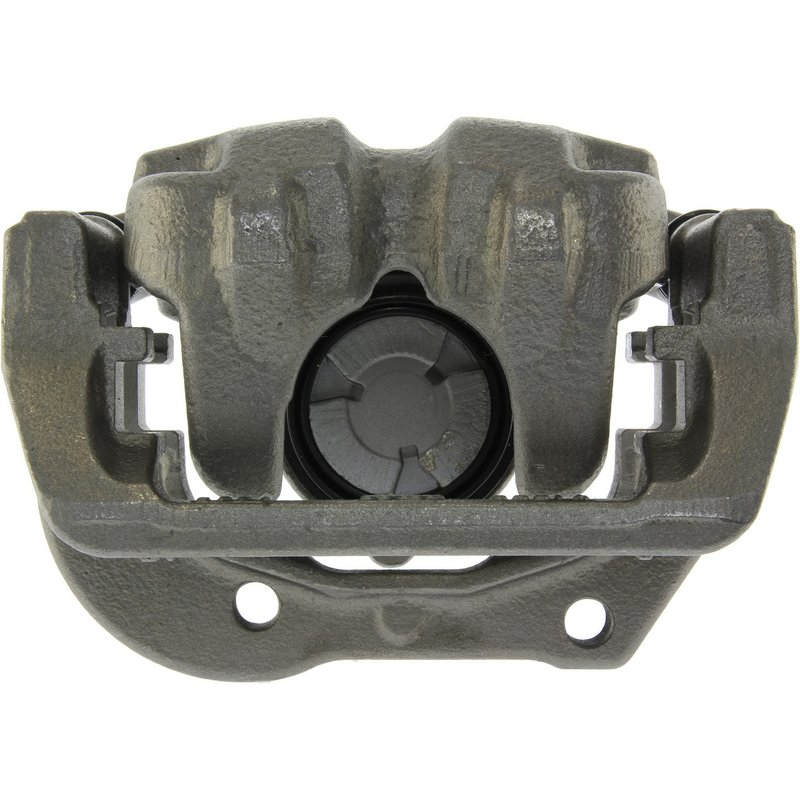

Centric 141.34612 Disc Brake Caliper - Rear Left

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.34612

The Centric Premium Semi-Loaded Disc Brake Caliper 141.34612 is engineered for precise braking performance on select BMW models. Designed as a floating caliper with a single steel piston, this component ensures reliable stopping power and durability for vehicles such as the BMW 535i, 550i, and 640i series.

• Compatible with BMW 535i, 550i, 550i xDrive, 640i, 640i Gran Coupe, 640i xDrive, 640i xDrive Gran Coupe, 650i, 650i Gran Coupe, 650i xDrive, and 650i xDrive Gran Coupe
• Part number 141.34612
• Cast iron caliper casting for strength and heat resistance
• Single steel piston with 44mm bore diameter
• Includes mounting bracket, abutment clips, and bleeder screw
• Gray finish with M10x1.0 inlet and bleeder screw thread sizes
• Floating caliper type for consistent pad wear and performance

Product Line Details: Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line offers a balance between fully loaded and basic caliper assemblies. This semi-loaded design includes essential hardware such as mounting brackets, abutment clips, and bleeder screws, but excludes brake pads and mounting bolts. This approach allows for easier integration with existing brake components while maintaining high-quality cast iron construction and precise piston sizing for optimal braking efficiency.

Technical Specifications and Features

This disc brake caliper features a cast iron body that provides durability and effective heat dissipation during braking. The single steel piston measures 44mm in diameter, ensuring consistent pressure on the brake pads. The floating caliper design allows for even pad wear and smooth operation. Thread sizes for the inlet and bleeder screw are standardized at M10x1.0, facilitating compatibility with OEM brake lines and maintenance tools. The gray finish offers corrosion resistance and a clean appearance.

Applications and Problem Solving

• Replacement for worn or damaged calipers on compatible BMW 5 and 6 Series models
• Addresses uneven brake pad wear caused by sticking or seized calipers
• Resolves brake fluid leakage issues related to piston or seal failure
• Improves braking response and pedal feel by restoring proper caliper function
• Supports maintenance of brake system integrity without replacing pads or mounting bolts

Installation Notes and Tips

• Ensure compatibility with your specific BMW model and verify part number 141.34612 before installation
• Use appropriate brake fluid and bleed the system after installation to remove air
• Check and replace brake pads separately as they are not included with this caliper
• Mounting hardware bolts are not included; reuse existing bolts or source OEM replacements
• Inspect brake lines and fittings for wear or damage during installation

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM standards for fit, form, and function. The cast iron construction and steel piston materials are selected for durability and consistent performance. This part is backed by Centric's quality control processes, ensuring reliable operation on compatible BMW models. Warranty details should be confirmed with the point of purchase or manufacturer documentation.
