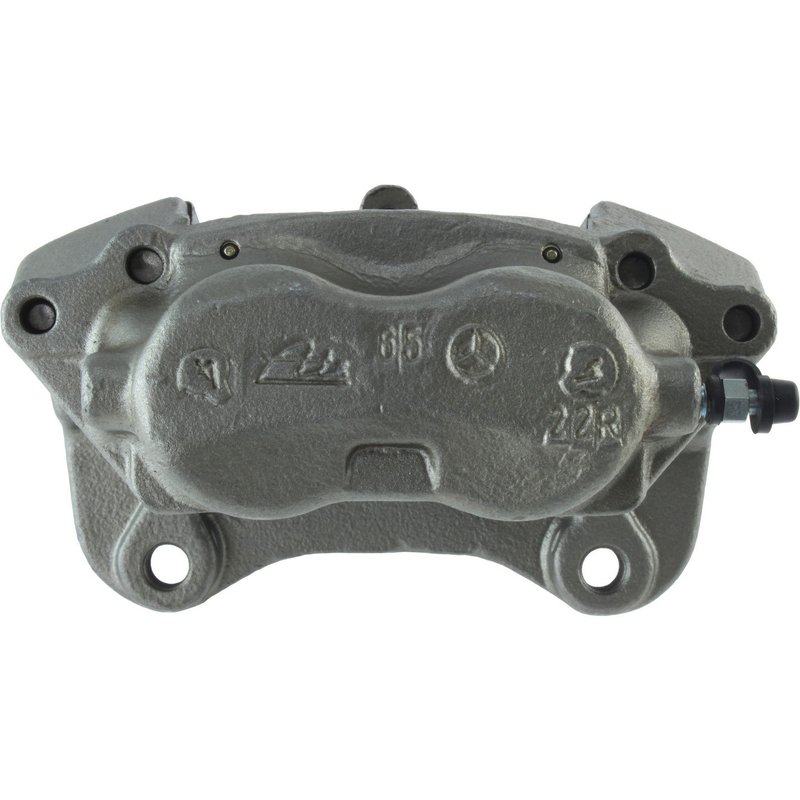

Centric 141.35047 Disc Brake Caliper - Front Right

Overview of Centric Premium Semi-Loaded Disc Brake Caliper

The Centric Premium Semi-Loaded Disc Brake Caliper 141.35047 is engineered for reliable braking performance on Mercedes-Benz 560SL models. Designed with durable cast iron construction and a fixed caliper design, this part ensures consistent stopping power and long service life.

• Compatible with Mercedes-Benz 560SL
• Fixed type disc brake caliper with 4 steel pistons
• Cast iron caliper casting for durability
• Includes abutment clips and bleeder screw
• Pad wear sensor and mounting hardware not included
• Caliper color: Gray
• Inlet thread size: M10x1.0; Bleeder screw thread size: M8x1.25
• Piston diameter: 40 mm (1.575 inches)

Product Line Details: Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line offers a balance between fully loaded and basic caliper assemblies. This semi-loaded caliper includes essential components such as abutment clips and bleeder screws, but excludes pads and mounting hardware, allowing for customization based on specific vehicle needs. The 141.35047 model maintains high manufacturing standards with cast iron construction and steel pistons to meet the braking demands of the Mercedes-Benz 560SL.

Technical Description and Features

This fixed caliper features four steel pistons with a 40 mm bore size, providing even pressure distribution for effective braking. The caliper casting is made from cast iron, which offers strength and heat resistance. The gray finish helps resist corrosion. The inlet thread diameter is M10x1.0, and the bleeder screw thread size is M8x1.25, both included for ease of maintenance. Abutment clips are included to ensure proper pad alignment, while mounting hardware and brake pads are not included, allowing for flexibility in installation.

Applications and Problem Solving

• Replacement for worn or damaged disc brake calipers on Mercedes-Benz 560SL
• Addresses uneven brake pad wear due to piston malfunction
• Resolves brake fluid leakage from faulty caliper seals
• Improves braking response and pedal feel
• Restores proper brake caliper function after corrosion or physical damage

Installation Notes and Tips

• Ensure compatibility with Mercedes-Benz 560SL before installation
• Use appropriate brake pads and mounting hardware as these are not included
• Bleeder screw is included; bleed brake system after installation to remove air
• Inspect brake lines and fittings for wear during installation
• Follow manufacturer torque specifications for mounting bolts

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM standards. The 141.35047 caliper undergoes rigorous quality control to ensure durability and performance. While specific warranty details are not provided here, Centric products typically come with a limited warranty covering defects in materials and workmanship. Refer to Centric's official documentation for exact warranty terms.
