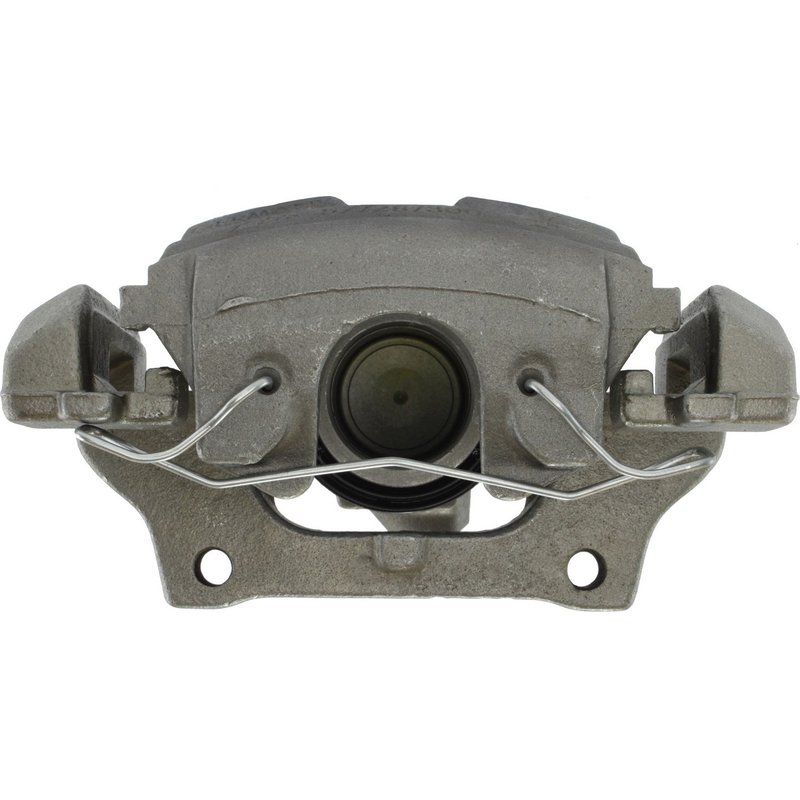

Centric 141.35068 Disc Brake Caliper - Front Left

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.35068

The Centric Premium Semi-Loaded Disc Brake Caliper 141.35068 is engineered for reliable braking performance on select Chrysler and Mercedes-Benz vehicles. Designed as a floating caliper with a single steel piston, this component ensures consistent stopping power for models like the Mercedes-Benz CLK320 and Chrysler Crossfire.

• Compatible with Chrysler Crossfire and Mercedes-Benz CLK320, CLK430, E300, E320, E420, E430, SLK320
• Caliper type: Floating with one steel piston
• Caliper casting material: Durable cast iron in gray finish
• Includes abutment clips, mounting bracket, and bleeder screw
• Inlet thread size M10x1.0 and bleeder screw thread size M8x1.25
• Bracket required and included; mounting hardware not included
• Pad wear sensor and brake pads not included

Product Line Details: Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line offers a balance between fully loaded and basic caliper assemblies. This semi-loaded caliper includes essential components such as the mounting bracket, abutment clips, and bleeder screw, facilitating a more straightforward installation process while allowing reuse of existing brake pads and hardware. The 141.35068 model maintains Centric's focus on quality materials and precise fitment for specific Chrysler and Mercedes-Benz applications.

Technical Specifications and Features

This floating disc brake caliper features a single 57mm steel piston housed in a cast iron body finished in gray. The inlet thread diameter is M10x1.0, and the bleeder screw thread size is M8x1.25, ensuring compatibility with standard brake lines and maintenance tools. The caliper includes abutment clips and a mounting bracket, though mounting hardware and brake pads are not part of this assembly. The piston diameter is 2.244 inches, designed to provide consistent hydraulic pressure for effective braking.

Common Applications and Problem Solving

• Replacement for worn or leaking calipers on Mercedes-Benz CLK320, CLK430, E300, E320, E420, E430, SLK320
• Restores proper brake function on Chrysler Crossfire models
• Addresses issues with sticking or seized floating calipers
• Helps eliminate uneven brake pad wear due to caliper malfunction
• Improves brake pedal feel and hydraulic pressure consistency

Installation Notes and Tips

• Ensure the mounting bracket is installed securely as it is required and included
• Bleeder screw is included; bleed brake system after installation to remove air
• Re-use existing brake pads and mounting hardware if in good condition
• Verify inlet and bleeder screw thread sizes (M10x1.0 and M8x1.25) for compatibility
• Check caliper casting number 57/28/300; 937; w15 for correct part matching

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM specifications, using cast iron and steel piston materials for durability and performance. This caliper assembly undergoes rigorous quality control to ensure fitment and function on specified Chrysler and Mercedes-Benz models. Warranty coverage details should be confirmed with the distributor or manufacturer.
