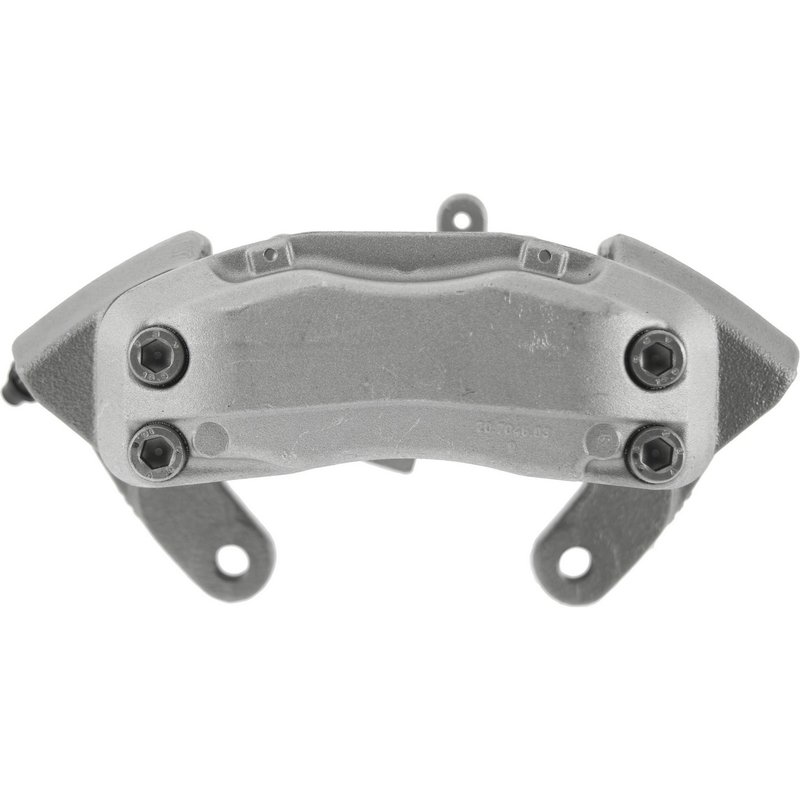

Centric 141.35090 Disc Brake Caliper - Front Left

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.35090

The Centric Premium Semi-Loaded Disc Brake Caliper 141.35090 is engineered for reliable braking performance on select Mercedes-Benz models including the CL500, S430, and S500. Designed as a fixed caliper with a semi-loaded configuration, this part offers a balance of durability and precision for brake system maintenance or upgrades.

• Compatible with Mercedes-Benz CL500, S430, and S500 models
• Fixed type disc brake caliper with 4 aluminum pistons
• Caliper casting made from aluminum and cast iron for strength and heat dissipation
• Includes abutment clips and bleeder screw for ease of maintenance
• Requires mounting bracket (included), but mounting hardware and brake pads are not included
• Inlet thread size M10x1.0 and bleeder screw thread size M8x1.25
• Gray caliper color with casting numbers 20704503, 20704603, 20704703, and others

Product Line Details: Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line is designed to provide a semi-assembled caliper solution that simplifies brake system repairs. This product line includes essential components such as pistons and seals pre-installed, reducing installation time while maintaining quality standards. The 141.35090 caliper benefits from this semi-loaded design, offering a fixed caliper configuration optimized for specific Mercedes-Benz vehicles.

Technical Description and Features

This disc brake caliper features a fixed design with four aluminum pistons measuring 40mm and 44mm in diameter, providing consistent clamping force for effective braking. The caliper body is constructed from a combination of aluminum and cast iron, balancing lightweight properties with structural integrity and heat resistance. The gray finish and specific casting numbers ensure compatibility and traceability. Included abutment clips and a bleeder screw (M8x1.25 thread) facilitate proper installation and maintenance. Note that brake pads and mounting hardware are not included, but the necessary mounting bracket is provided.

Common Applications and Problem Solving

• Replacement for worn or damaged disc brake calipers on Mercedes-Benz CL500, S430, and S500
• Restores braking performance affected by piston or caliper body corrosion
• Addresses brake fluid leakage issues by providing a new bleeder screw and seals
• Improves brake system reliability where caliper mounting brackets are required
• Supports maintenance of trailing axle brake components on specified Mercedes-Benz models

Installation Notes and Tips

• Ensure compatibility with Mercedes-Benz CL500, S430, or S500 before installation
• Use the included mounting bracket; mounting hardware and brake pads must be sourced separately
• Verify inlet and bleeder screw thread sizes (M10x1.0 and M8x1.25) for proper brake line and bleed fitting connections
• Inspect and clean mounting surfaces to ensure proper caliper alignment and function
• Bleed brake system thoroughly after installation to remove air and ensure optimal braking response

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM specifications for fit, form, and function. The 141.35090 caliper undergoes rigorous quality control to ensure durability and performance on Mercedes-Benz vehicles. While specific warranty details are not provided here, Centric products typically include a limited warranty against defects in materials and workmanship. Consult product documentation or supplier for exact warranty terms.
