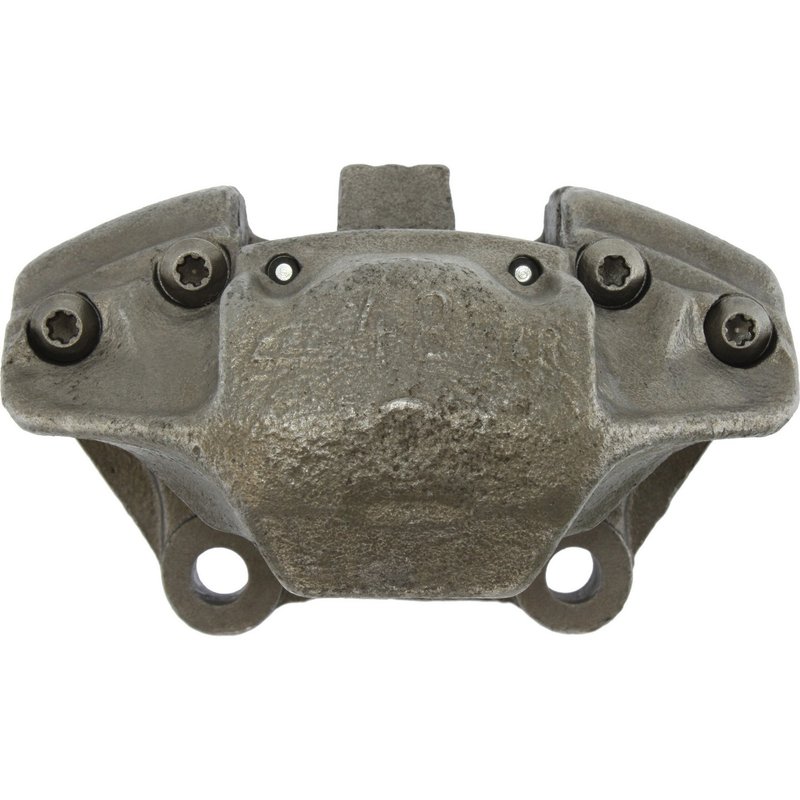

Centric 141.36006 Disc Brake Caliper - Front Left

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.36006

The Centric Premium Semi-Loaded Disc Brake Caliper 141.36006 is engineered for reliable braking performance in a variety of vehicle applications. Designed as a fixed caliper with dual pistons, this component offers consistent stopping power and durability for compatible makes and models.

• Fixed type disc brake caliper with two steel pistons
• Constructed from durable cast iron for strength and heat resistance
• Includes abutment clips and bleeder screw for maintenance ease
• Gray finish with precise mounting hole diameter of 12.00 mm
• Inlet thread size M10x1.0 and bleeder screw thread size M7x1.0
• Pad wear sensor and brake pads not included
• Compatible with trailing axle configurations

Product Line Details: Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line offers semi-assembled calipers that include key components such as abutment clips and bleeder screws, simplifying installation and maintenance. This product line focuses on providing a balance between ease of installation and component quality, making it suitable for professional repairs and replacements. The 141.36006 caliper fits within this line, delivering a fixed caliper design with dual pistons and cast iron construction for dependable braking performance.

Technical Specifications and Features

This Centric caliper features a 48 mm piston diameter with two steel pistons, ensuring even pressure distribution on brake pads. The caliper casting is made from cast iron, which offers durability and resistance to heat generated during braking. The inlet thread diameter is M10x1.0, and the bleeder screw thread size is M7x1.0, both standard sizes for many vehicle brake systems. The mounting hole diameter is 12.00 mm, and the caliper is designed for trailing axle applications. Abutment clips and bleeder screws are included, but mounting hardware and brake pads are not part of this assembly.

Common Applications and Problem Solving

• Replacement for worn or damaged fixed disc brake calipers
• Restores braking efficiency on vehicles with trailing axle setups
• Addresses issues with uneven brake pad wear due to piston malfunction
• Solves brake fluid leakage problems by providing a reliable bleeder screw
• Improves brake pedal feel by ensuring proper caliper piston operation

Installation Notes and Tips

• Verify compatibility with your vehicle’s make and model before installation
• Ensure the inlet and bleeder screw thread sizes match your brake lines and tools
• Use proper torque specifications for mounting bolts and bleeder screws
• Replace brake pads and mounting hardware separately, as they are not included
• Bleed the brake system thoroughly after installation to remove air

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM standards for fit, form, and function. The 141.36006 caliper undergoes rigorous quality control to ensure durability and performance. While specific warranty details are not provided here, Centric products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or supplier information for exact warranty terms.
