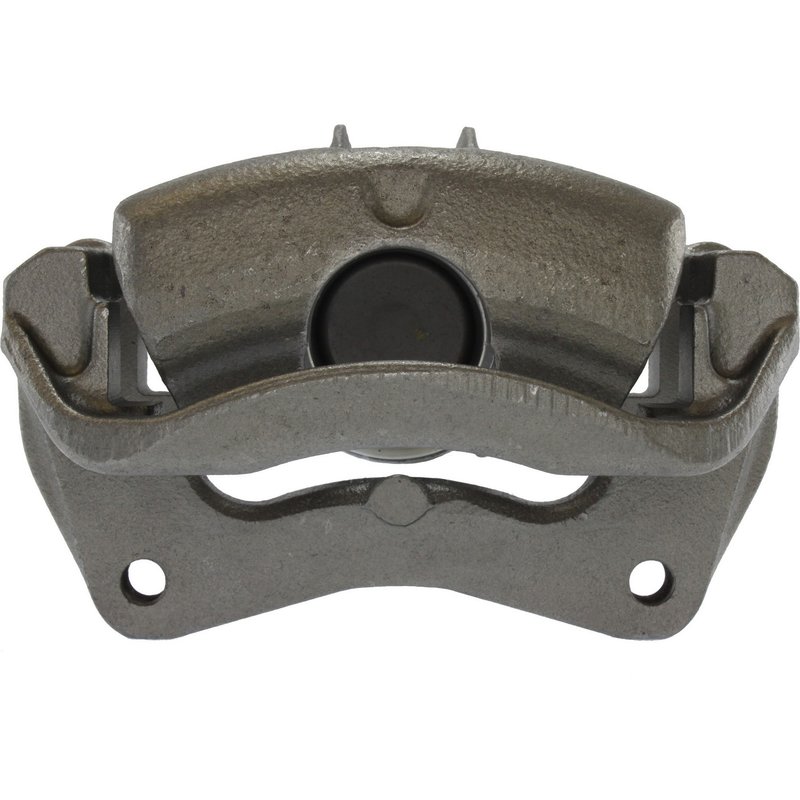

Centric 141.39011 Disc Brake Caliper - Front Right

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.39011

The Centric Premium Semi-Loaded Disc Brake Caliper 141.39011 is engineered for reliable braking performance on Volvo S40 and V40 models. Designed as a floating caliper with a single steel piston, this component ensures consistent brake application and durability.

• Compatible with Volvo S40 and V40 vehicles
• Floating disc brake caliper design with one steel piston
• Constructed from durable cast iron for strength and heat resistance
• Includes mounting bracket and abutment clips for proper installation
• Equipped with bleeder screw (M8x1.25 thread) and banjo inlet fitting (M10x1.0 thread)

Features and Specifications

This Centric Premium Semi-Loaded Disc Brake Caliper features a 54mm piston diameter made of steel, providing reliable hydraulic pressure transfer. The caliper is cast from robust cast iron, offering resistance to wear and heat during braking. It uses a floating caliper design, which allows for self-alignment and even pad wear. The inlet fitting is a banjo type with an M10x1.0 thread diameter, compatible with standard brake lines. The included bleeder screw has an M8x1.25 thread size, facilitating brake fluid bleeding during maintenance. Mounting hardware is not included, but the caliper comes with the necessary mounting bracket and abutment clips to secure it properly.

About Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line offers a balance between fully loaded and basic caliper assemblies. These semi-loaded calipers come with essential components such as mounting brackets and abutment clips, but exclude pads and mounting hardware. This approach allows for flexibility in brake system maintenance and replacement, ensuring compatibility with specific vehicle requirements like the Volvo S40 and V40.

Applications and Problem Solving

• Replacement for worn or damaged disc brake calipers on Volvo S40 and V40
• Addresses uneven brake pad wear due to caliper malfunction
• Resolves brake fluid leakage from faulty piston seals
• Improves braking response by restoring proper caliper function
• Eliminates brake noise caused by sticking or seized calipers

Installation Notes and Tips

Ensure the mounting bracket is properly installed as it is required for this caliper. Since mounting hardware is not included, use existing or OEM bolts for secure attachment. Bleed the brake system thoroughly after installation using the included bleeder screw to remove air and maintain optimal brake performance. Verify compatibility with Volvo S40 and V40 models before installation.

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM standards for fit, form, and function. The cast iron construction and steel piston materials contribute to long service life and consistent braking performance. Warranty details are provided by Centric and typically cover defects in materials and workmanship under normal use.
