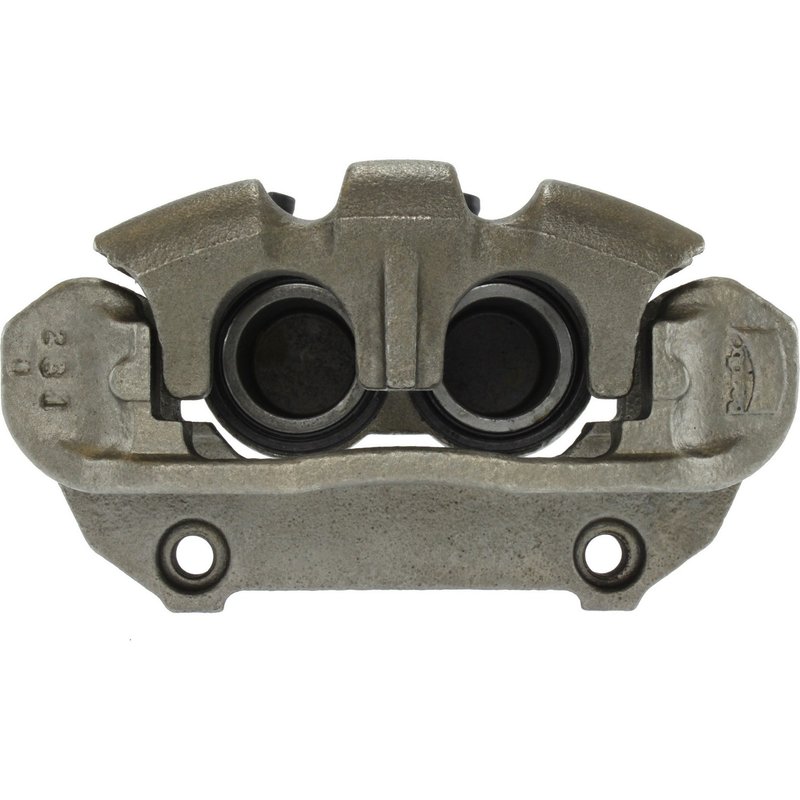

Centric 141.39026 Disc Brake Caliper - Front Left

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.39026

The Centric Premium Semi-Loaded Disc Brake Caliper 141.39026 is engineered for reliable braking performance on select Volvo models. Designed as a floating caliper with dual pistons, this component offers consistent stopping power and durability for Volvo 740, 760, and 780 vehicles.

• Compatible with Volvo 740, 760, and 780 models
• Part number 141.39026 for precise identification
• Cast iron caliper casting for strength and heat resistance
• Two steel pistons with 38mm diameter for balanced braking force
• Includes abutment clips, mounting bracket, and bleeder screw
• Floating caliper design for smooth pad engagement
• Brake pad wear sensor not included
• Inlet and bleeder screw thread size M10x1.0

Centric Premium Semi-Loaded Disc Brake Calipers Product Line

The Centric Premium Semi-Loaded Disc Brake Calipers line focuses on delivering semi-assembled calipers that simplify brake system maintenance. This product line includes essential components such as abutment clips, mounting brackets, and bleeder screws, reducing the need for additional parts during installation. The 141.39026 caliper benefits from this design approach, providing a balance between ease of installation and component reliability.

Technical Details and Features

This disc brake caliper features a cast iron construction that withstands high temperatures and mechanical stress. The floating caliper type allows for self-alignment with the brake rotor, improving pad wear and braking efficiency. Equipped with two steel pistons measuring 38mm in diameter, it ensures even pressure distribution on the brake pads. The caliper comes in a gray finish and includes necessary hardware such as abutment clips, mounting bracket, and bleeder screw with M10x1.0 thread size. Note that brake pads and mounting hardware bolts are not included.

Applications and Problem Solving

• Replacement for worn or damaged disc brake calipers on Volvo 740, 760, and 780
• Addresses uneven brake pad wear due to piston or caliper malfunction
• Resolves brake fluid leakage issues by providing a new bleeder screw and seals
• Improves braking response and safety with properly functioning dual-piston caliper
• Restores proper caliper mounting with included bracket and abutment clips

Installation Notes and Tips

• Ensure compatibility with Volvo 740, 760, or 780 before installation
• Brake pads and mounting hardware bolts must be sourced separately
• Bleed brake system thoroughly after installation to remove air
• Inspect brake lines and fittings for wear or damage during replacement
• Use proper torque specifications for mounting bracket bolts

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM standards for durability and performance. The 141.39026 caliper undergoes rigorous quality control to ensure reliable operation. While specific warranty details are not provided here, Centric products typically include a limited warranty against defects in materials and workmanship.
