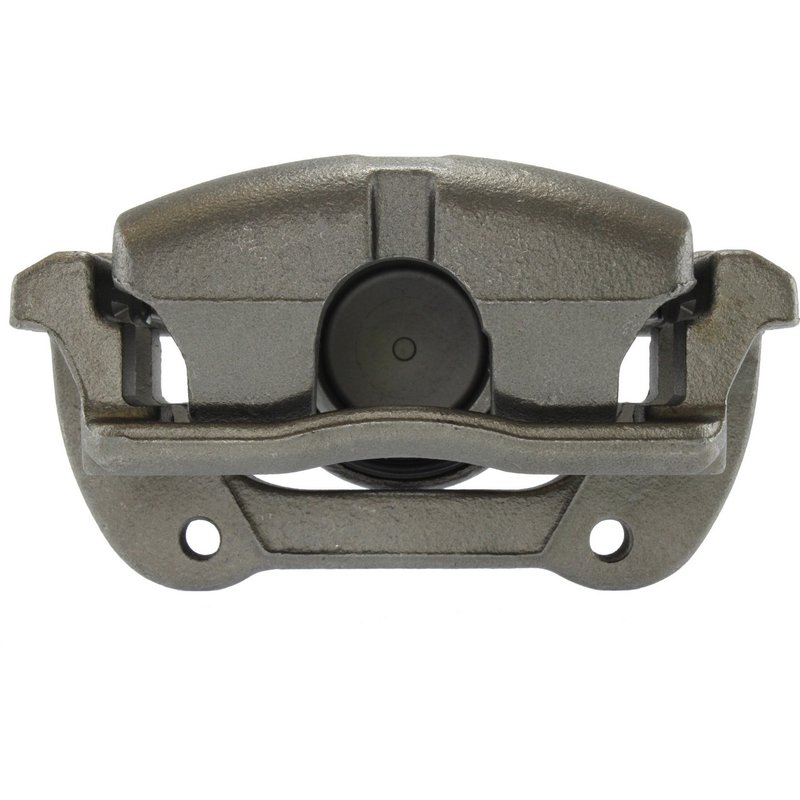

Centric 141.39035 Disc Brake Caliper - Front Right

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.39035

The Centric Premium Semi-Loaded Disc Brake Caliper 141.39035 is designed specifically for select Volvo models, including the 740, 780, 940, 960, S90, and V90. This floating caliper features a cast iron construction and includes essential components such as abutment clips, mounting bracket, and bleeder screw to facilitate installation and reliable braking performance.

• Compatible with Volvo 740, 780, 940, 960, S90, and V90 models
• Cast iron caliper casting for durability
• Single steel piston with 57mm bore diameter
• Includes mounting bracket, abutment clips, and bleeder screw
• Floating caliper type with M10x1.0 inlet thread size
• Gray finish with bubble inlet fitting
• Pad wear sensor not included; pads not included

Product Line Details: Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line offers semi-assembled calipers that come with critical hardware components such as mounting brackets, abutment clips, and bleeder screws. This reduces installation time and ensures compatibility with original equipment specifications. The 141.39035 caliper maintains the quality and fitment standards expected from Centric's premium line, tailored for Volvo vehicles requiring a floating caliper design with a 57mm piston diameter.

Technical Specifications and Features

This disc brake caliper features a cast iron body for strength and heat resistance, paired with a single steel piston measuring 57mm in diameter. The floating caliper design allows for self-alignment during braking, improving pad contact and wear. The inlet thread size is M10x1.0 with a bubble-type fitting, and the bleeder screw also uses an M10-1.00 thread size, included for ease of maintenance. The caliper comes in a gray finish and includes abutment clips and a mounting bracket, though mounting hardware bolts and brake pads are not included.

Common Applications and Problem Solving

• Replacement for worn or leaking calipers on Volvo 740, 780, 940, 960, S90, and V90
• Addresses uneven brake pad wear due to caliper piston issues
• Resolves brake fluid leakage from damaged or corroded caliper bodies
• Improves braking performance by restoring proper caliper function
• Suitable for vehicles requiring a floating caliper with a 57mm piston diameter

Installation Notes and Tips

Ensure the mounting bracket is installed as it is required for proper caliper fitment. Although mounting hardware bolts are not included, abutment clips and bleeder screws come with the caliper to facilitate installation. Verify the inlet thread size (M10x1.0) matches your brake line fittings. Since brake pads are not included, inspect and replace pads as necessary during installation. Bleed the brake system thoroughly after installation to remove air and ensure optimal braking performance.

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM specifications for fit, form, and function. The cast iron construction and steel piston materials provide durability and resistance to wear. This caliper is backed by Centric's quality standards, though specific warranty details should be confirmed with the distributor or installer.
